Lighting Switch Inspection

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CHECK LIGHTING SWITCH INPUT SIGNAL
With CONSULT-II

Select "BCM" on CONSULT-II. With "HEAD LAMP" data monitor, make sure "AUTO LIGHT SW" turns ON-OFF linked with operation of lighting switch.

When lighting switch is in AUTO position : AUTO LIGHT SW ON

Without CONSULT-II

Refer to "COMBINATION SWITCH INSPECTION ".

OK or NG
- OK : Inspection End.
- NG : Check lighting switch. Refer to "COMBINATION SWITCH INSPECTION ".

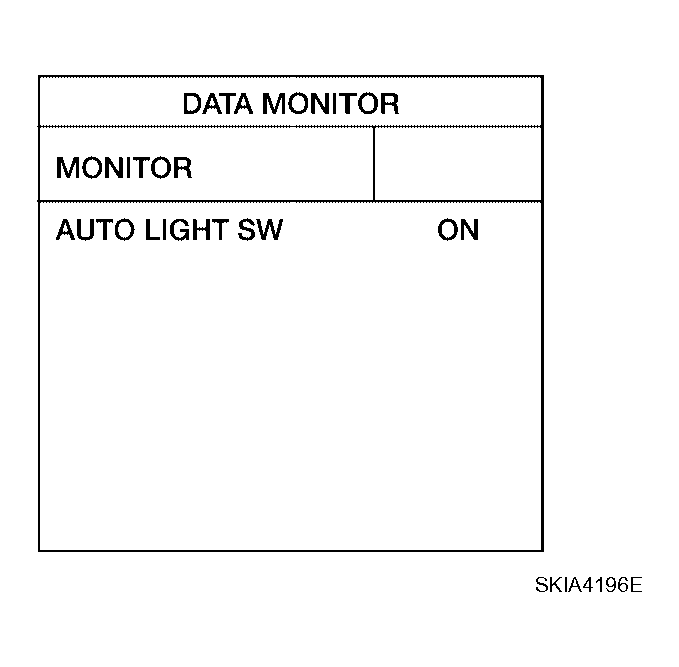

  Fig 1: Consult-II Screen Display - Data Monitor
  Courtesy of NISSAN MOTOR CO., U.S.A.
