Removal and Installation (AWD Models): Components

Refer to COMPONENTS .

Refer to INSTALLATION .

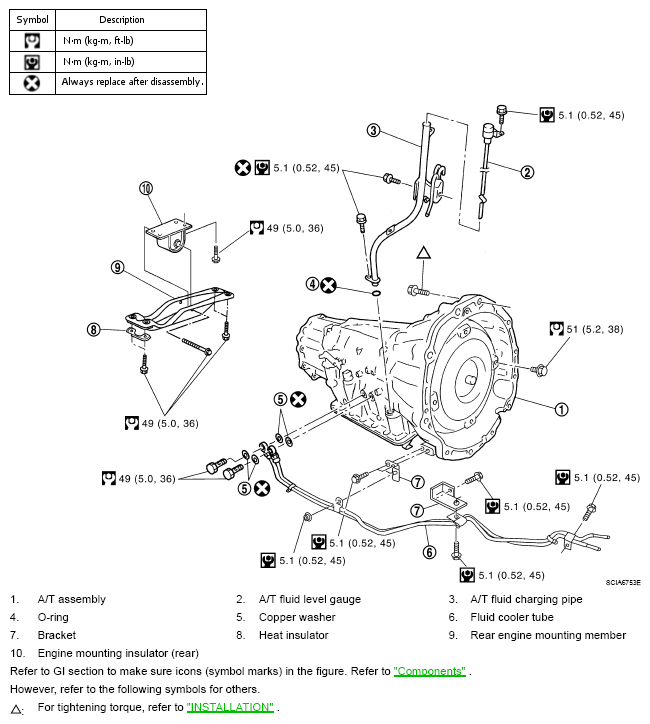

Fig 1: Transmission Assembly Replacement Components With Torque Specifications (AWD Models)
G05213493
