Exploded View

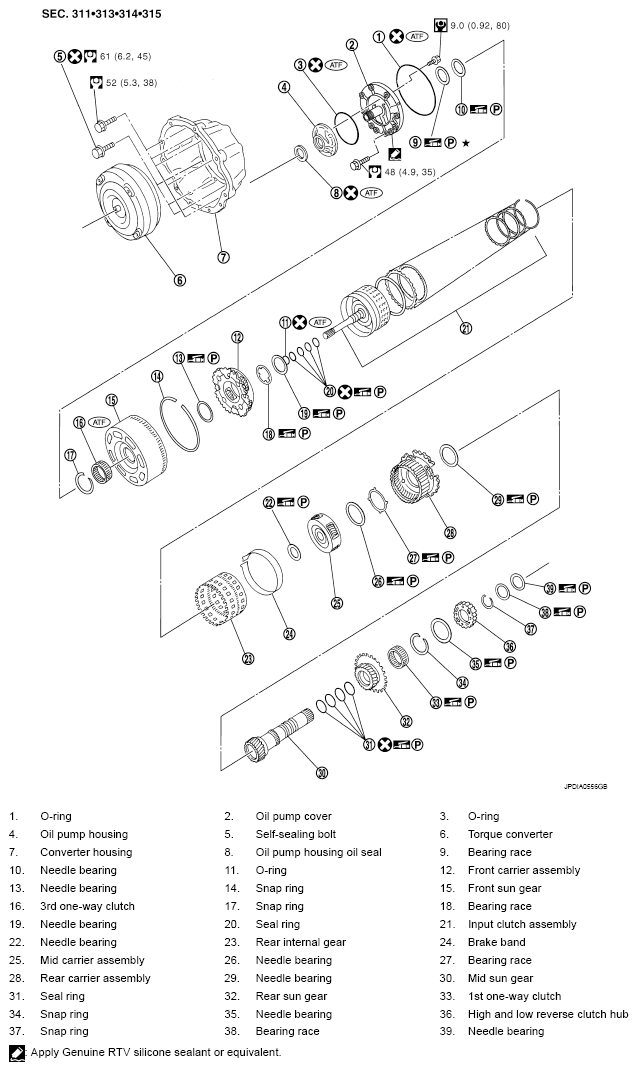

Fig 1: Exploded View Of Transmission Assembly With Torque Specifications (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

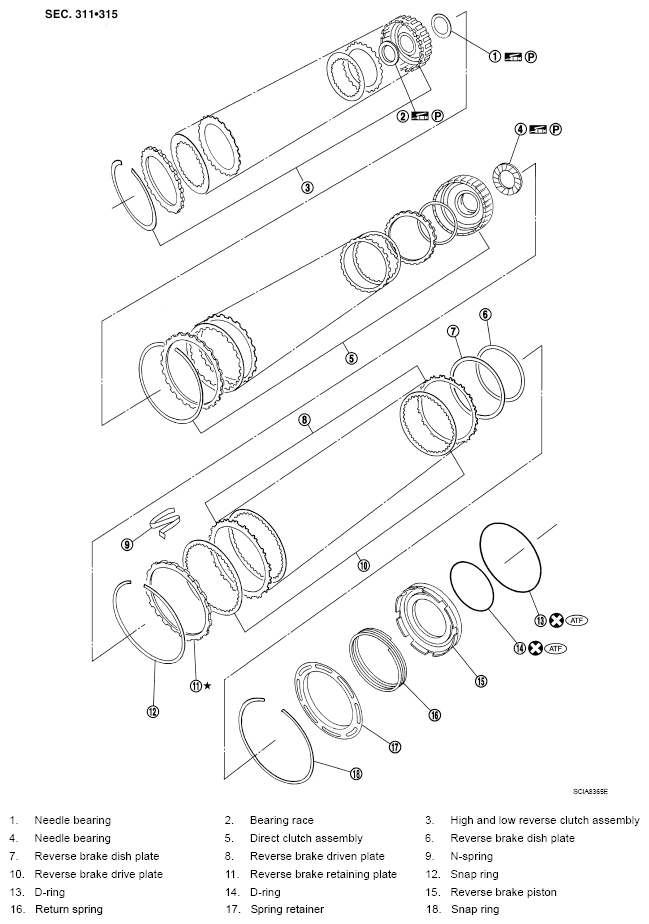

Fig 2: Exploded View Of Transmission Assembly (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

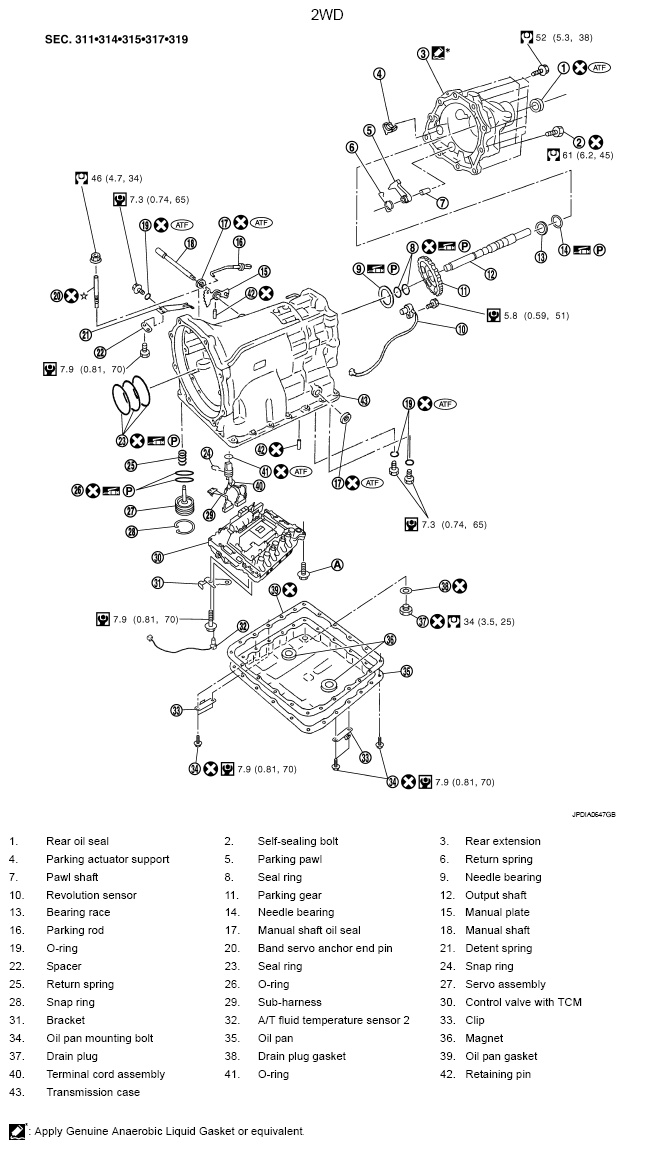

Fig 3: Exploded View Of Transmission Assembly With Torque Specifications - 2WD
Courtesy of NISSAN MOTOR CO., U.S.A.

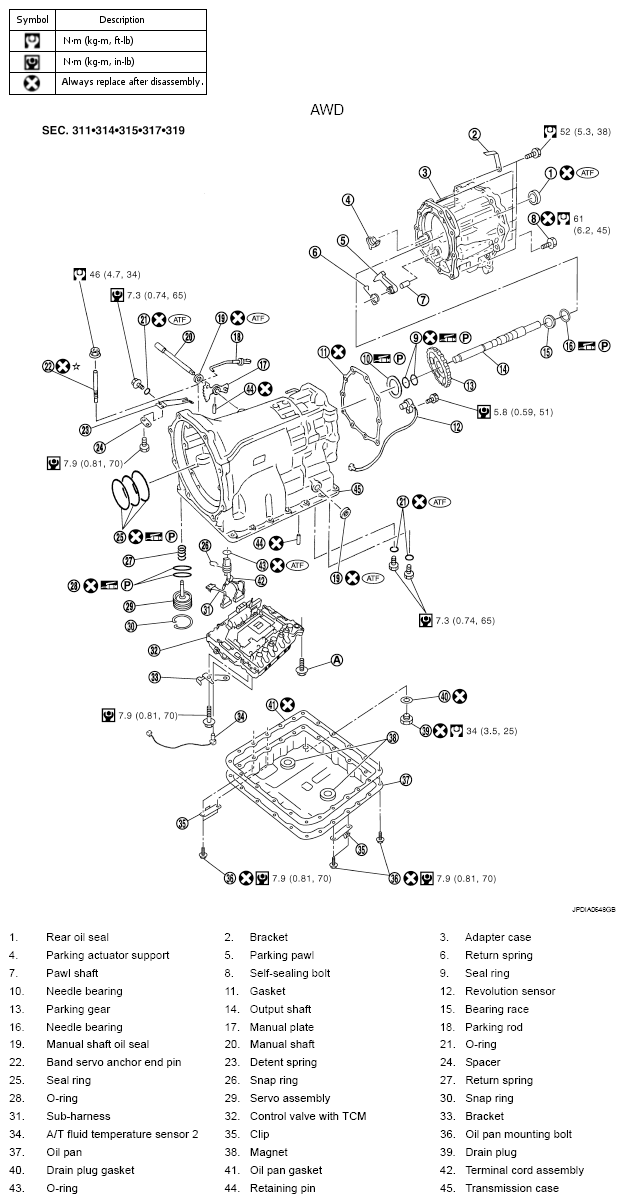

Fig 4: Exploded View Of Transmission Assembly With Torque Specifications - AWD
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
