Component Inspection

1. Turn ignition switch OFF.
2. Remove EVAP canister vent control valve from EVAP canister.
3. Check portion (A) of EVAP canister vent control valve for being rusted.

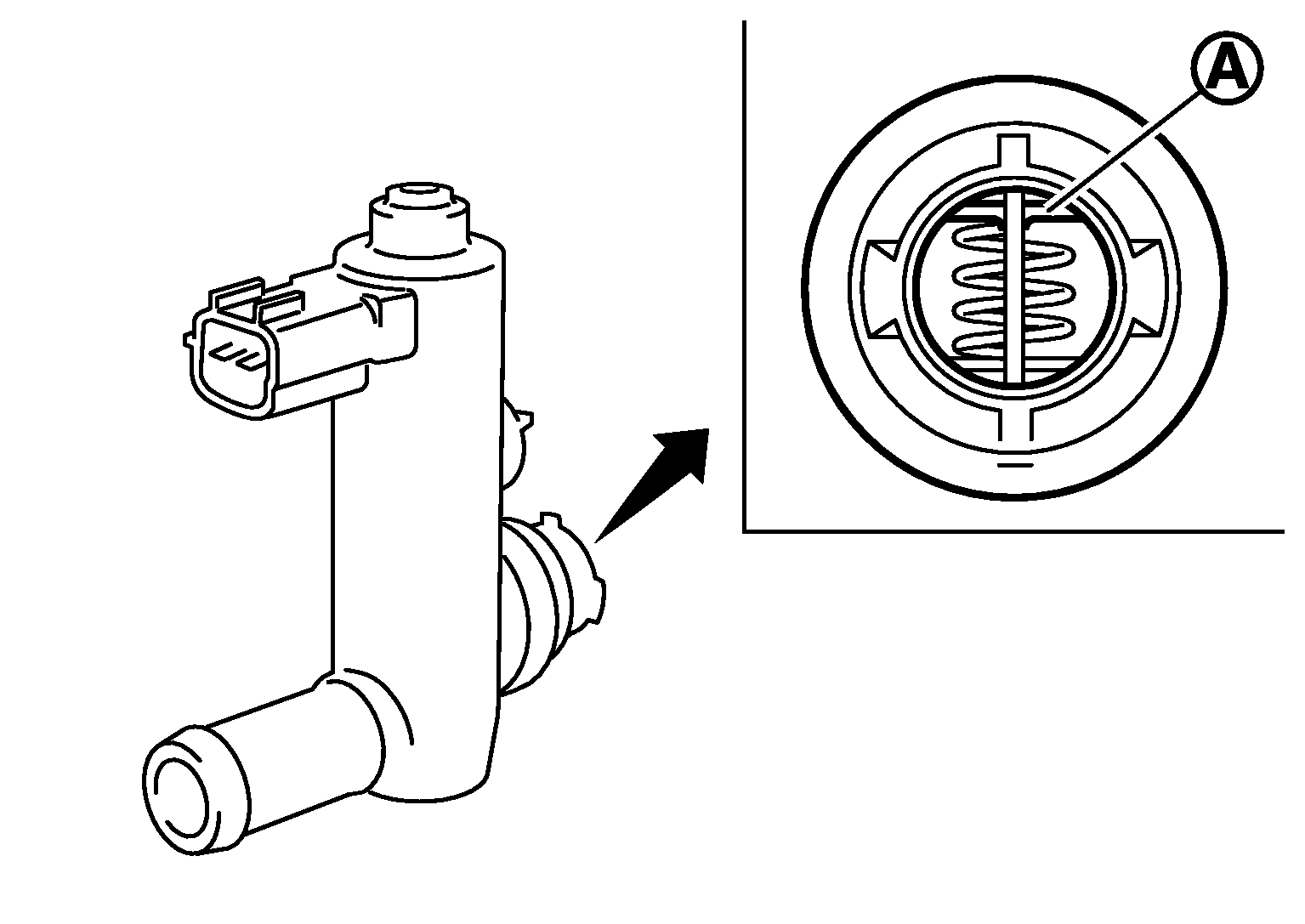

Fig 1: Checking EVAP Canister Vent Control Valve-I

Courtesy of NISSAN MOTOR CO., U.S.A.

Is it rusted?

YES: Replace EVAP canister vent control valve

NO: GO TO 2.

With CONSULT-III

1. Reconnect harness connectors disconnected.
2. Turn ignition switch ON.
3. Perform "VENT CONTROL/V" in "ACTIVE TEST" mode.
4. Check air passage continuity and operation delay time.

   Check new O-ring is installed properly.

   AIR PASSAGE CONTINUITY



   VENT CONTROL/V Condition	Air passage continuity between (A) and (B)
   ON	Not existed
   OFF	Existed

   Fig 2: Checking Air Passage Continuity Between (A) And (B)

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Operation takes less than 1 second.

Without CONSULT-III

1. Disconnect EVAP canister vent control valve harness connector.
2. Check air passage continuity and operation delay time under the following conditions.

   Check new O-ring is installed properly.

   AIR PASSAGE CONTINUITY SPECIFICATIONS



   Condition	Air passage continuity between (A) and (B)
   12 V direct current supply between terminals 1 and 2	Not existed
   OFF	Existed

   Operation takes less than 1 second.

Is the inspection result normal?

YES: GO TO 3.

NO: Replace EVAP canister vent control valve

With CONSULT-III

1. Clean the air passage [portion (A) to (B)] of EVAP canister vent control valve using an air blower.
2. Perform "VENT CONTROL/V" in "ACTIVE TEST" mode.
3. Check air passage continuity and operation delay time.

   Check new O-ring is installed properly.

   AIR PASSAGE CONTINUITY SPECIFICATIONS



   VENT CONTROL/V Condition	Air passage continuity between (A) and (B)
   ON	Not existed
   OFF	Existed

   Operation takes less than 1 second.

Without CONSULT-III

1. Clean the air passage [portion (A) to (B)] of EVAP canister vent control valve using an air blower.
2. Check air passage continuity and operation delay time under the following conditions.

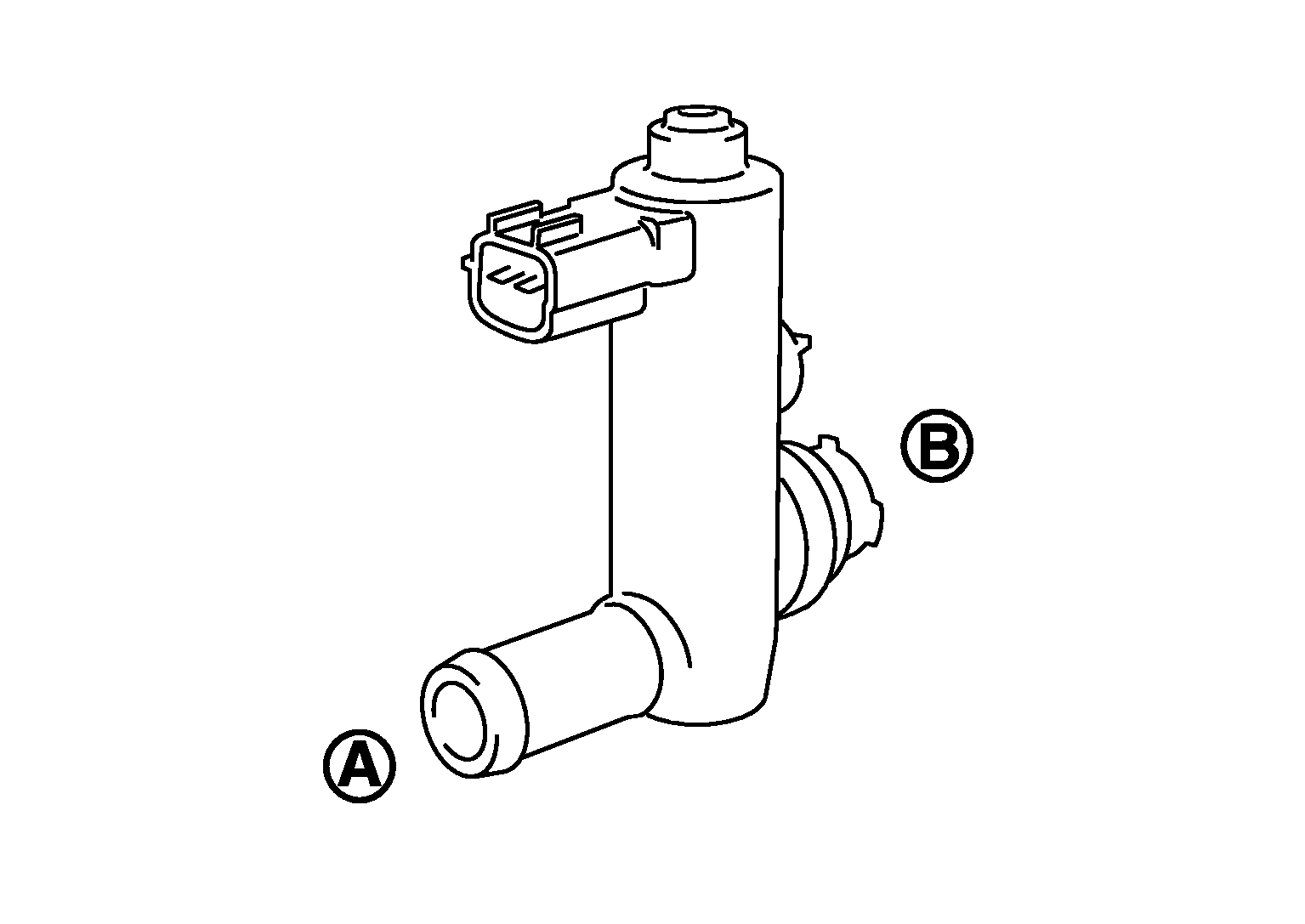

   Fig 3: Checking Air Passage Continuity Between (A) And (B)

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Check new O-ring is installed properly.

   AIR PASSAGE CONTINUITY SPECIFICATIONS



   Condition	Air passage continuity between (A) and (B)
   12 V direct current supply between terminals 1 and 2	Not existed
   OFF	Existed

   Operation takes less than 1 second.

Is the inspection result normal?

YES: INSPECTION END

NO: Replace EVAP canister vent control valve
