Mode 6 - Ex: Ex35

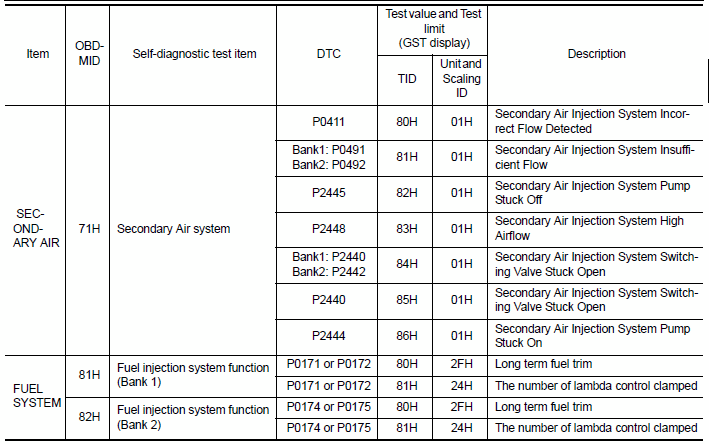

Fig 1: Mode $06 Data For EX35 (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

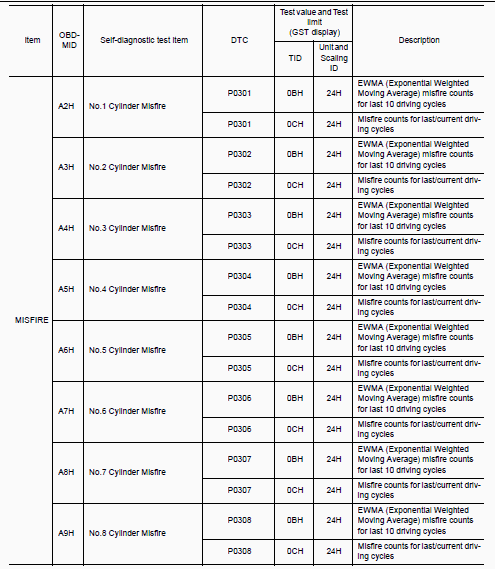

Fig 2: Mode $06 Data For EX35 (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

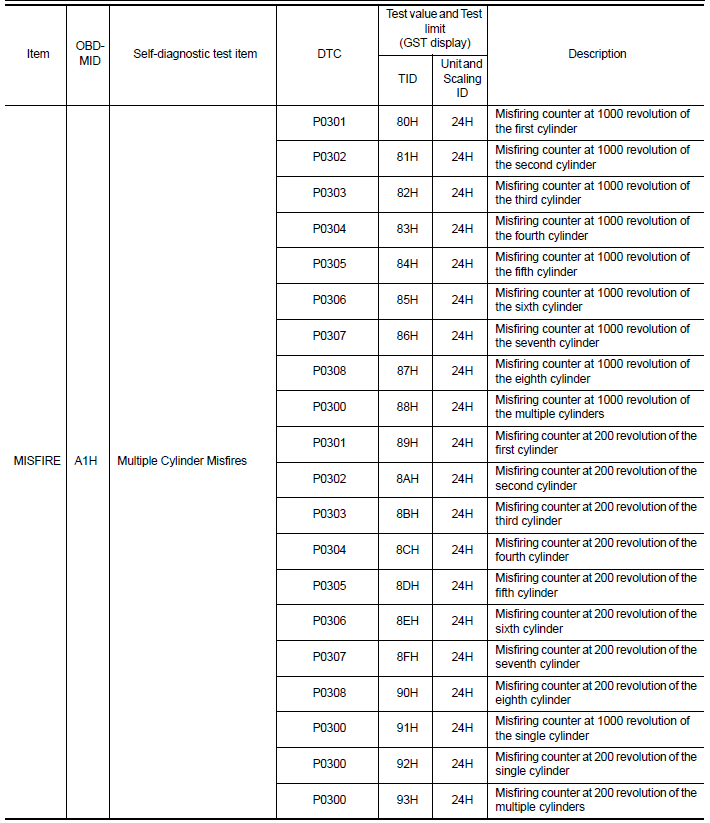

Fig 3: Mode $06 Data For EX35 (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

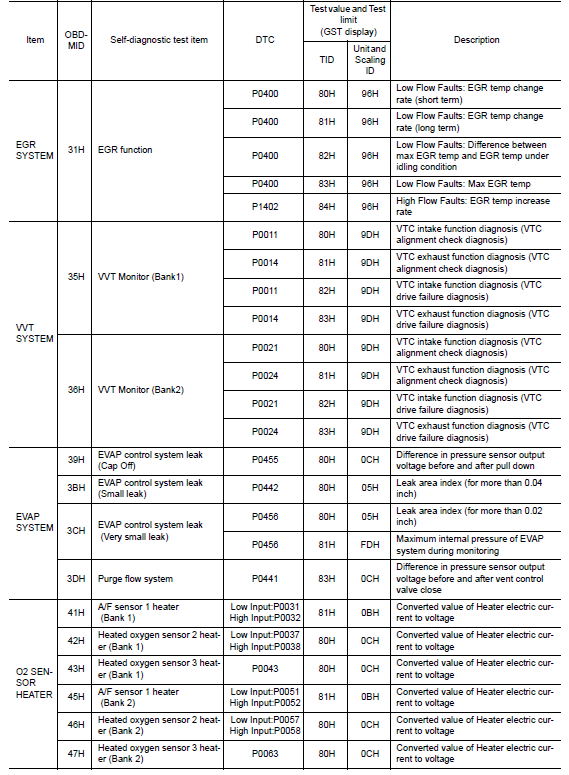

Fig 4: Mode $06 Data For EX35 (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

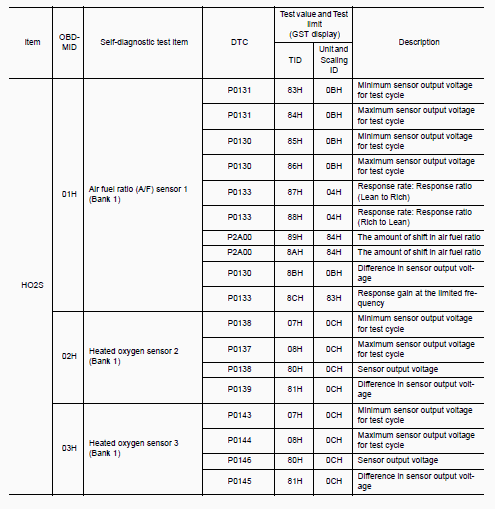

Fig 5: Mode $06 Data For EX35 (5 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

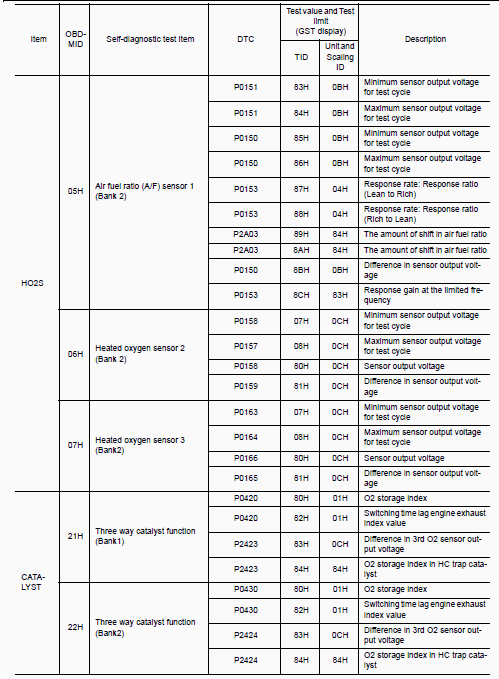

Fig 6: Mode $06 Data For EX35 (6 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
