Component Description

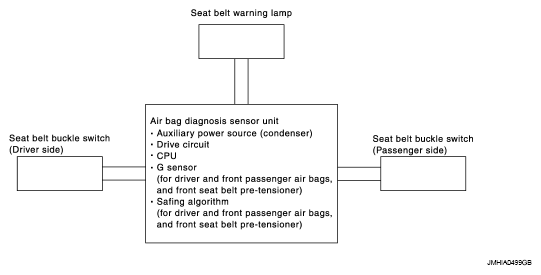

Fig 1: Identifying Passenger Seat Belt Warning System Description Diagram
G05729771Courtesy of NISSAN MOTOR CO., U.S.A.
COMPONENT PARTS REFERENCE

Component parts Outline of function
Seat belt buckle switch (Driver side) Detects if the driver side seat belt is fastened or unfastened
NOTE: Lighting of a seat belt warning lamp and a seat belt alarm are outputted when the seat belt buckle switch (driver side) is not put on, but it does not relate to an airbag diagnosis sensor unit
Seat belt buckle switch (Passenger side) Detects if the seat belt buckle switch (passenger side) is fastened or unfastened
Seat belt warning lamp Turns the seat belt warning lamp ON when the seat belt is unfastened
