Exploded View: Removal

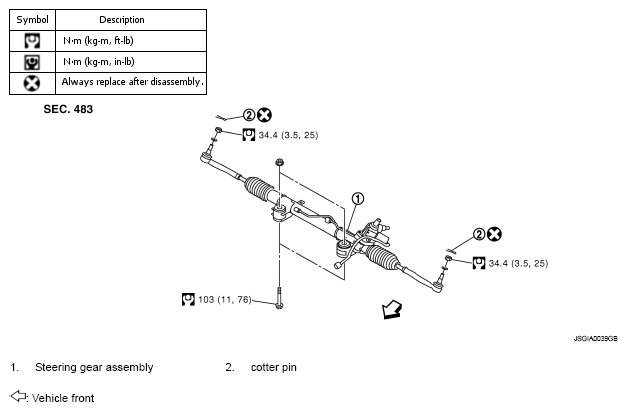

Fig 1: Exploded View Of Steering Gear & Linkage (AWD) Replacement Components With Torque Specifications
G05729653Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for symbols in the figure.
