Exploded View: Removal

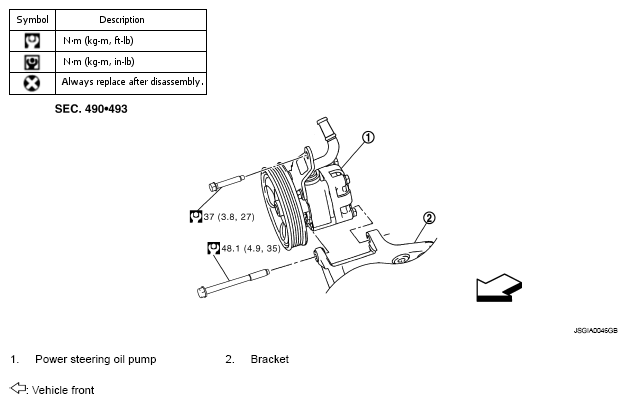

Fig 1: Power Steering Oil Pump & Bracket With Torque Specifications
G05729688Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for symbols in the figure.
