Exploded View: Disassembly

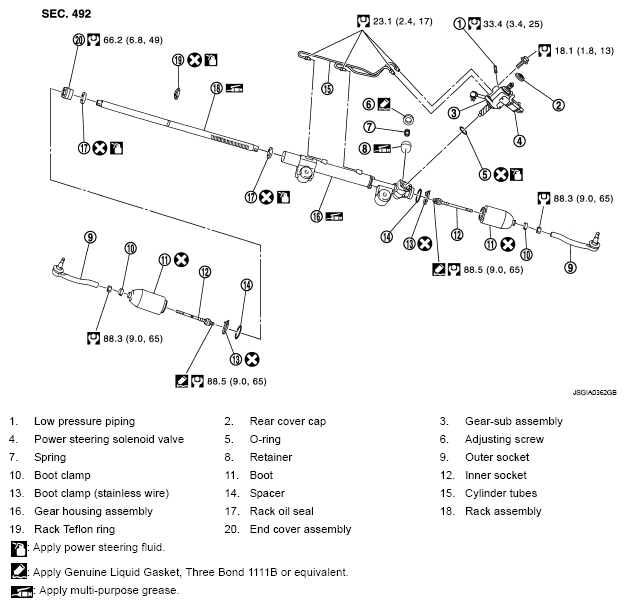

Fig 1: Disassembling View Of Steering Gear & Linkage (AWD) Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for symbols not described on the above.
