Transmission Assembly: Disassembly

CAUTION: Do not disassemble parts behind Drum Support. Refer to "CROSS-SECTIONAL VIEW ".

Drain ATF through drain plug.
Remove torque converter by holding it firmly and turning while pulling straight out.

Fig 1: Removing/Installing Torque Converter
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove tightening bolts (<=) for converter housing and transmission case.

Fig 2: Locating Converter Housing And Transmission Case Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove converter housing from transmission case.
CAUTION: Be careful not to scratch converter housing.
Remove O-ring from input clutch assembly.

Fig 3: Identifying O-Ring And Input Clutch Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

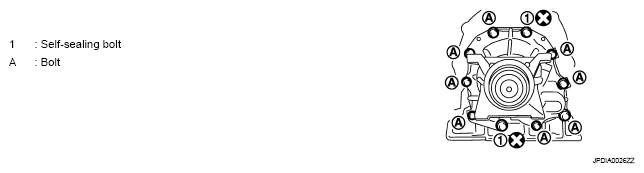

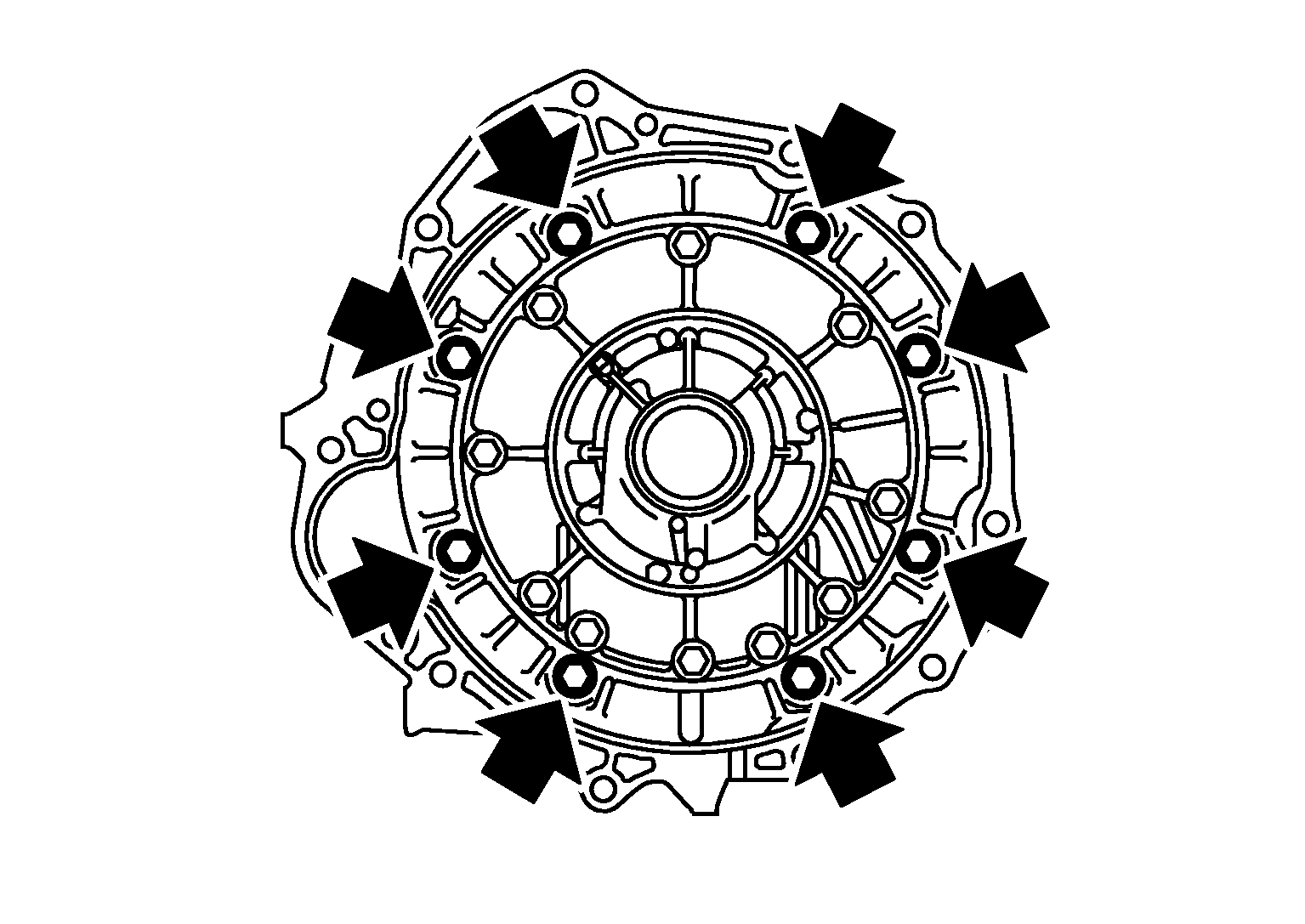

Remove tightening bolts for oil pump assembly and transmission case.

Fig 4: Locating Oil Pump Assembly Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

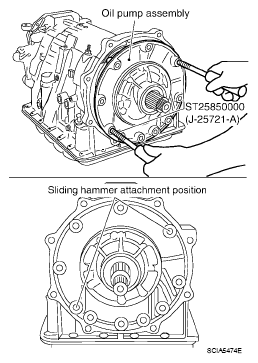

Attach the sliding hammers to oil pump assembly and extract it evenly from transmission case.
CAUTION:
- Fully tighten the sliding hammer screws.
- Make sure that bearing race is installed to the oil pump assembly edge surface.

  Fig 5: Removing/Installing Oil Pump Assembly Using Tools
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove O-ring from oil pump assembly.

Fig 6: Removing/Installing O-Ring From Oil Pump Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove bearing race from oil pump assembly.

Fig 7: Identifying Bearing Race
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove needle bearing from front sun gear.

Fig 8: Identifying Needle Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove front sun gear assembly from front carrier assembly.
NOTE: Remove front sun gear by rotating left/right.

Fig 9: Rotating Front Sun Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove seal rings from input clutch assembly.

Fig 10: Identifying Seal Rings
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove front carrier assembly from rear carrier assembly. (With input clutch assembly and rear internal gear.)
CAUTION: Be careful to remove it with needle bearing.

Fig 11: Identifying Front Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Loosen lock nut and remove band servo anchor end pin from transmission case.

Fig 12: Identifying Lock Nut And Band Servo Anchor End Pin From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove brake band from transmission case.

Fig 13: Identifying Brake Band From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
- To prevent brake linings from cracking or peeling, do not stretch the flexible band unnecessarily. When removing the brake band, always secure it with a clip as shown in the figure at right.
  Leave the clip in position after removing the brake band.
- Check brake band facing for damage, cracks, wear or burns.

  Fig 14: Identifying Brake Band Clip
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove mid carrier assembly and rear carrier assembly as a unit.

Fig 15: Identifying Mid Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove mid carrier assembly from rear carrier assembly.

Fig 16: Removing/Installing Mid Carrier Assembly From Rear Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove needle bearing (front side) from mid carrier assembly.

Fig 17: Removing/Installing Needle Bearing From Mid Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove needle bearing (rear side) from mid carrier assembly.

Fig 18: Removing/Installing Needle Bearing (Rear Side) From Mid Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove bearing race from rear carrier assembly.

Fig 19: Removing/Installing Bearing Race From Rear Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove needle bearing from rear carrier assembly.

Fig 20: Removing/Installing Needle Bearing From Rear Carrier Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove mid sun gear assembly, rear sun gear assembly and high and low reverse clutch hub as a unit.
CAUTION: Be careful to remove then with bearing race and needle bearing.

Fig 21: Identifying Mid Sun Gear Assembly And Rear Sun Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove high and low reverse clutch assembly from direct clutch assembly.
CAUTION: Make sure that needle bearing is installed to the high and low reverse clutch assembly edge surface.

Fig 22: Identifying High And Low Reverse Clutch Assembly From Direct Clutch Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove direct clutch assembly from reverse brake.

Fig 23: Identifying Direct Clutch Assembly From Reverse Brake
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove needle bearing from drum support.

Fig 24: Identifying Needle Bearing From Drum Support
Courtesy of NISSAN MOTOR CO., U.S.A.

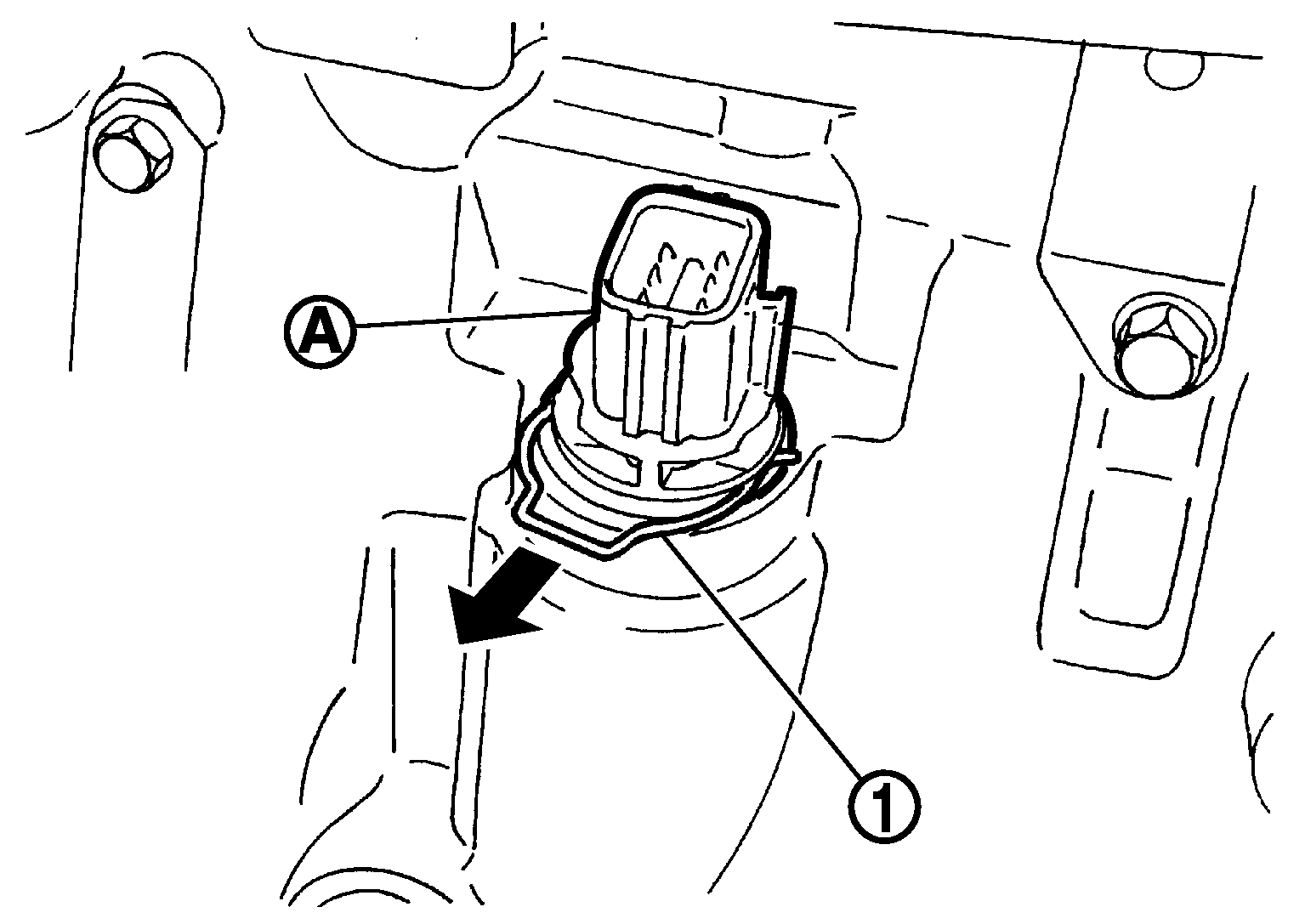

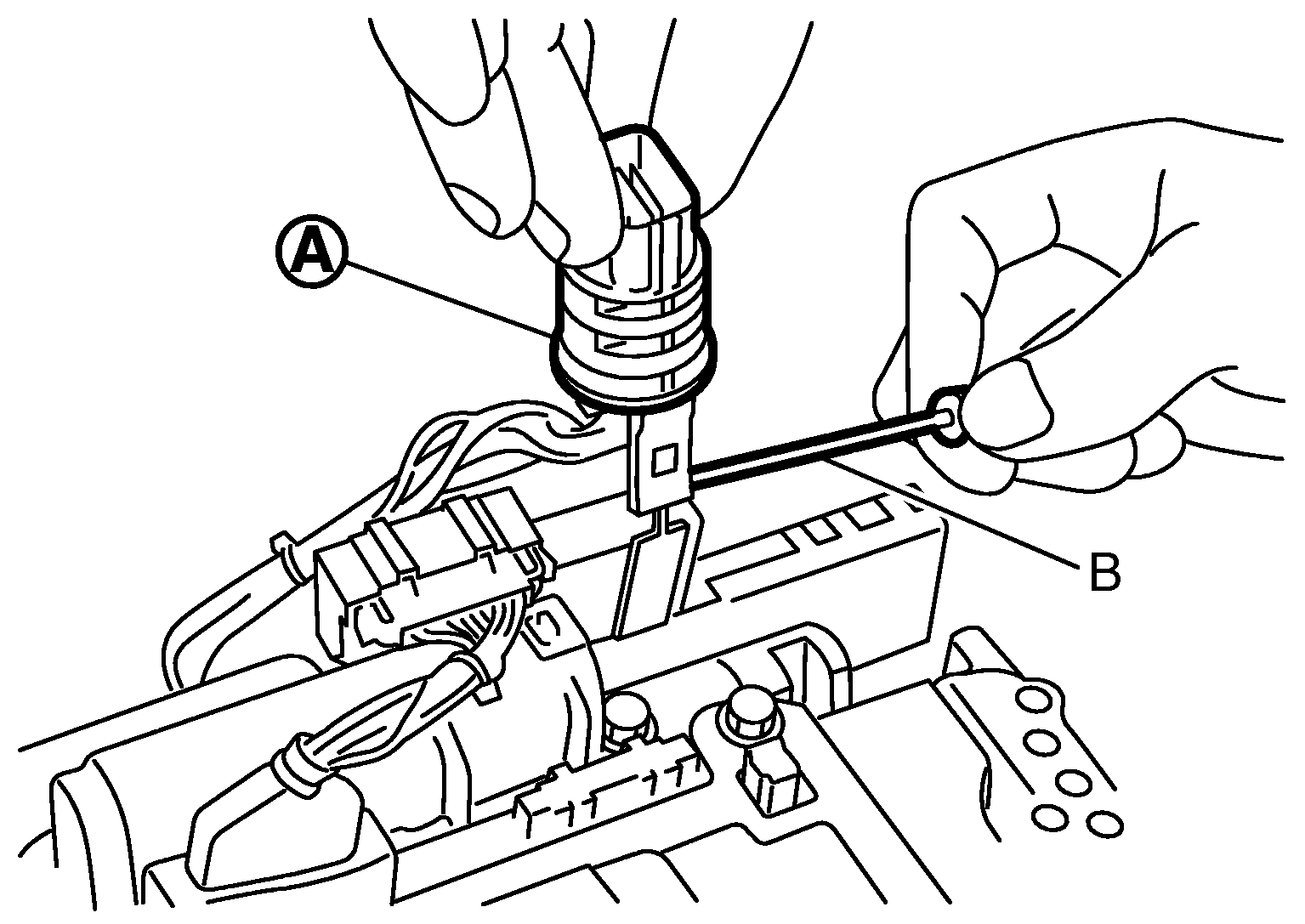

Remove snap ring (1) from A/T assembly harness connector (A).

Fig 25: Removing Snap Ring From A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

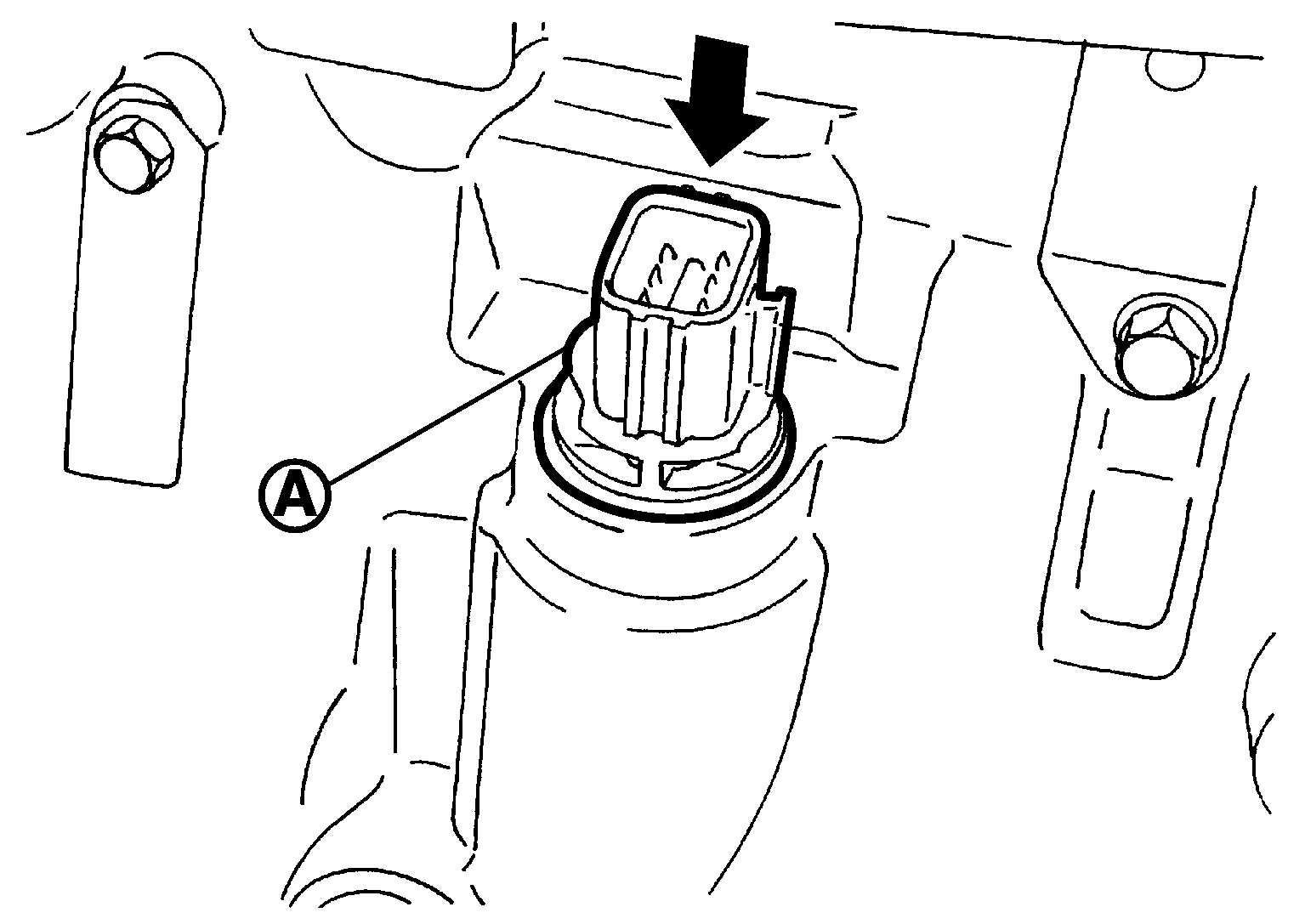

Push A/T assembly harness connector (A).
CAUTION: Be careful not to damage connector.

Fig 26: Pushing A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

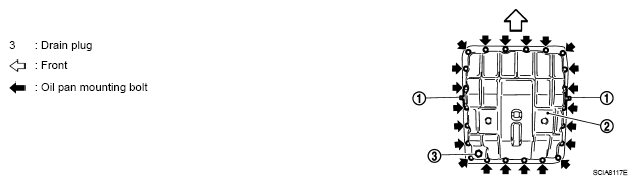

Remove clips (1).
Remove oil pan (2) and oil pan gasket.

Fig 27: Identifying Oil Pan And Clips
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove magnets (1) from oil pan.

Fig 28: Identifying Oil Pan Magnets
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect A/T fluid temperature sensor 2 connector (A).
CAUTION: Be careful not to damage connector.
Disengage terminal clips (<=).

Fig 29: Locating A/T Fluid Temperature Sensor Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect revolution sensor connector (A).
CAUTION: Be careful not to damage connector.
Disengage terminal clip (<=).

Fig 30: Locating Revolution Sensor Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

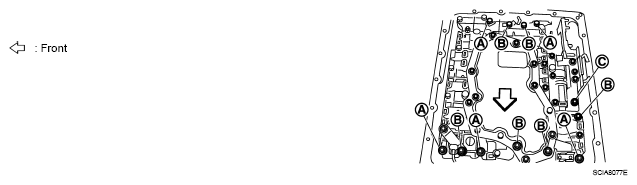

Remove bolts (A), (B) and (C) from control valve with TCM.

Fig 31: Identifying Bolts And Control Valve With TCM
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove control valve with TCM from transmission case.
CAUTION: When removing, be careful with the manual valve notch and manual plate height. Remove it vertically.

Fig 32: Removing/Installing Control Valve With TCM From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

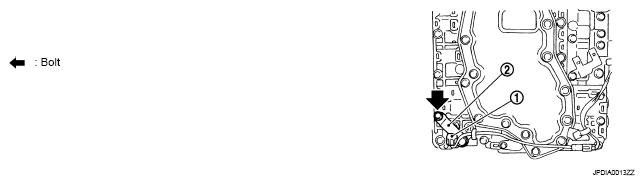

Remove A/T fluid temperature sensor 2 (1) with bracket (2) from control valve with TCM.

Fig 33: Identifying A/T Fluid Temperature Sensor 2 And Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove bracket (1) from A/T fluid temperature sensor 2 (2).

Fig 34: Identifying Bracket And A/T Fluid Temperature Sensor 2
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove O-ring (1) from A/T assembly harness connector (A).

Fig 35: Identifying O-Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect TCM connectors (A) and (B).
CAUTION: Be careful not to damage connectors.

Fig 36: Identifying TCM Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove A/T assembly harness connector (A) from control valve with TCM using a flat-bladed screwdriver (B).

Fig 37: Removing/Installing A/T Assembly Harness Connector From Control Valve
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect TCM connector (A) and park/neutral position switch connector (B).
CAUTION: Be careful not to damage connectors.

Fig 38: Identifying TCM Connector And Park/Neutral Position Switch Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove rear extension assembly (2WD) or adapter case assembly (AWD) according to the following procedures.
1. 2WD

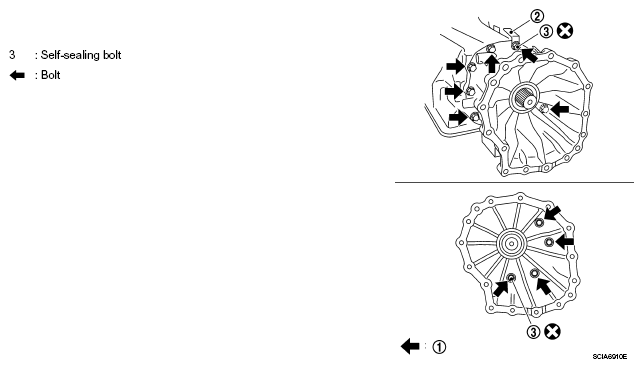

  1. Remove tightening bolts for rear extension assembly and transmission case.

    Fig 39: Identifying Bolts In Sequence
    Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Tap rear extension assembly with a soft hammer.

    Fig 40: Tapping Rear Extension Assembly With Soft Hammer
    Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove rear extension assembly from transmission case. (With needle bearing).

    Fig 41: Removing/Installing Rear Extension Assembly (With Needle Bearing) From Transmission Case
    Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove bearing race from output shaft.

    Fig 42: Removing/Installing Bearing Race From Output Shaft
    Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove output shaft from transmission case by rotating left/right.

    Fig 43: Removing/Installing Output Shaft From Transmission Case By Rotating Left And Right
    Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove parking gear (1) from output shaft (2).

    Fig 44: Removing/Installing Parking Gear From Output Shaft
    Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove seal rings (1) from output shaft.

    Fig 45: Identifying Seal Rings
    Courtesy of NISSAN MOTOR CO., U.S.A.
2. AWD
  1. Remove tightening bolts (1) for adapter case assembly and transmission case. [With bracket (2).]

    Fig 46: Locating Bolts
    Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Tap adapter case assembly with a soft hammer.

    Fig 47: Tapping Adapter Case Assembly Using Suitable Tool
    Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove adapter case assembly from transmission case. (With needle bearing)

    Fig 48: Removing/Installing Adapter Case Assembly
    Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove gasket from transmission case.

    Fig 49: Removing/Installing Gasket From Transmission Case
    Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove bearing race from output shaft.

    Fig 50: Removing/Installing Bearing Race From Output Shaft
    Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove output shaft from transmission case by rotating left/right.

    Fig 51: Removing/Installing Output Shaft From Transmission Case By Rotating Left And Right
    Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove parking gear (1) from output shaft (2).

    Fig 52: Removing/Installing Parking Gear From Output Shaft
    Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove seal rings (1) from output shaft.

    Fig 53: Identifying Seal Rings
    Courtesy of NISSAN MOTOR CO., U.S.A.
Remove needle bearing from transmission case.

Fig 54: Identifying Seal Rings
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove revolution sensor from transmission case.
CAUTION:
- Do not subject it to impact by dropping or hitting it.
- Do not disassemble.
- Do not allow metal filings, etc. to get on the sensor's front edge magnetic area.
- Do not place in an area affected by magnetism.

  Fig 55: Locating Revolution Sensor
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove reverse brake snap ring (fixing plate) using 2 flat-bladed screwdrivers.
NOTE: Press out snap ring from the transmission case oil pan side gap using a flat-bladed screwdriver, and remove it using a another screwdriver.
Remove reverse brake retaining plate from transmission case.
- Check facing for burns, cracks or damage. If necessary, replace the plate.

  Fig 56: Pressing Out Snap Ring From Transmission Case Oil Pan Side Gap
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove N-spring from transmission case.

Fig 57: Identifying N-Spring From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove reverse brake drive plates, driven plates, dish plates and retaining plate transmission case.
- Check facing for burns, cracks or damage. If necessary, replace the plate.

  Fig 58: Removing/Installing Reverse Brake Drive Plates, Driven Plates And Dish Plate From Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove snap ring (fixing spring retainer) using a flat-bladed screwdriver.

Fig 59: Identifying Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove spring retainer and return spring from transmission case.

Fig 60: Identifying Spring Retainer And Return Spring From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove seal rings from drum support.

Fig 61: Identifying Seal Rings From Drum Support
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove needle bearing from drum support edge surface.

Fig 62: Identifying Needle Bearing From Drum Support Edge Surface
Courtesy of NISSAN MOTOR CO., U.S.A.

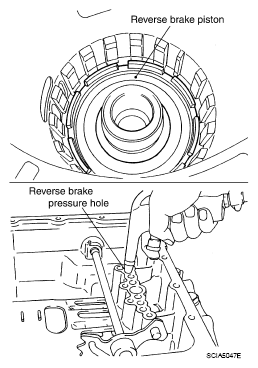

Remove reverse brake piston from transmission case with compressed air. Refer to "OIL CHANNEL ".
CAUTION: Care should be taken not to abruptly blow air. It makes pistons incline, as the result, it becomes hard to disassemble the pistons.

Fig 63: Removing Reverse Brake Piston From Transmission Case Using Compressed Air
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove D-rings from reverse brake piston.

Fig 64: Identifying D-Rings From Reverse Brake Piston
Courtesy of NISSAN MOTOR CO., U.S.A.
Use a pin punch [4 mm (0.16 in) dia. commercial service tool] to knock out retaining pin.

Fig 65: Identifying Retaining Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove manual shaft retaining pin with pair of nippers.

Fig 66: Removing Manual Shaft Retaining Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove manual plate (with parking rod) from manual shaft.

Fig 67: Removing Manual Plate (With Parking Rod) From Manual Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking rod from manual plate.

Fig 68: Removing Parking Rod From Manual Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove manual shaft from transmission case.

Fig 69: Removing/Installing Manual Shaft From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove manual shaft oil seals using a flat-bladed screwdriver.
CAUTION: Be careful not to scratch transmission case.

Fig 70: Removing Manual Shaft Oil Seals Using Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove detent spring and spacer from transmission case.

Fig 71: Locating Detent Spring And Spacer From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Using pair of snap ring pliers, remove snap ring from transmission case.

Fig 72: Removing/Installing Snap Ring From Transmission Case Using Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove servo assembly (with return spring) from transmission case.

Fig 73: Removing/Installing Servo Assembly To Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove return spring from servo assembly.

Fig 74: Removing/Installing Return Spring From Servo Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove O-rings from servo assembly.

Fig 75: Removing/Installing O-Rings From Servo Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove needle bearing (1) from rear extension (2WD) or adapter case (AWD).

Fig 76: Identifying Rear Extension Needle Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking actuator support from rear extension (2WD) or adapter case (AWD).

Fig 77: Removing/Installing Parking Actuator Support From Rear Extension
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove parking pawl (with return spring) and pawl shaft from rear extension (2WD) or adapter case (AWD).

Fig 78: Removing/Installing Parking Pawl And Pawl Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove return spring (1) from parking pawl (2).

Fig 79: Identifying Parking Pawl And Return Spring
Courtesy of NISSAN MOTOR CO., U.S.A.

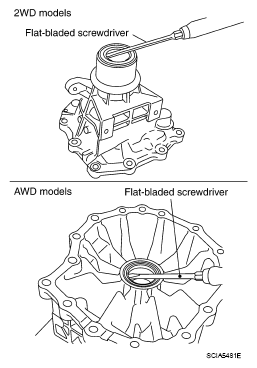

Remove rear oil seal from rear extension (2WD) or adapter case (AWD).
CAUTION: Be careful not to scratch rear extension (2WD) or adapter case (AWD).

Fig 80: Removing Rear Oil Seal From Rear Extension (2WD)
Courtesy of NISSAN MOTOR CO., U.S.A.
