AWD Models

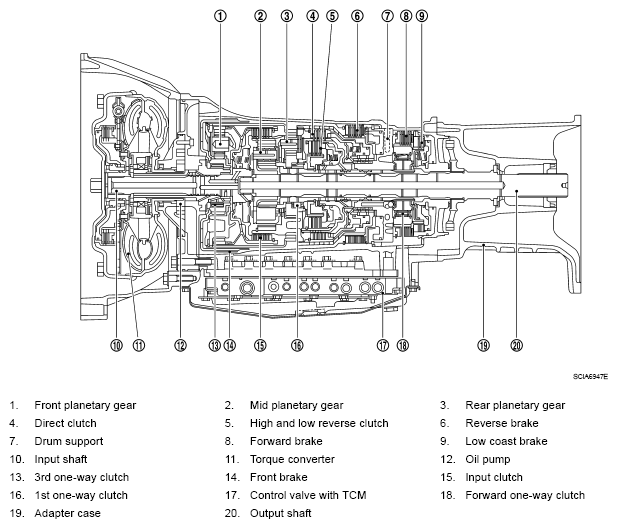

Fig 1: Cross-Sectional View Of Shift Mechanism - AWD Models
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
