System Diagram

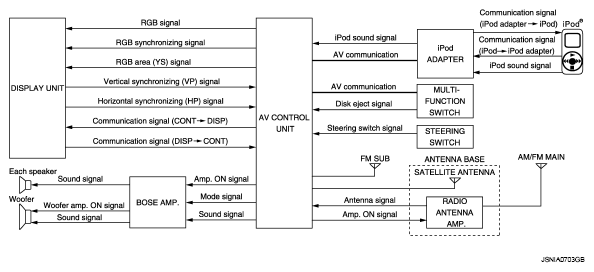

Fig 1: Identifying Audio System Diagram
G05732037Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: A radio antenna base integrated with radio antenna and satellite radio antenna is adopted.
Fig 2: Identifying Integrated With Radio Antenna & Satellite Radio Antenna Signal
G05732038Courtesy of NISSAN MOTOR CO., U.S.A.
