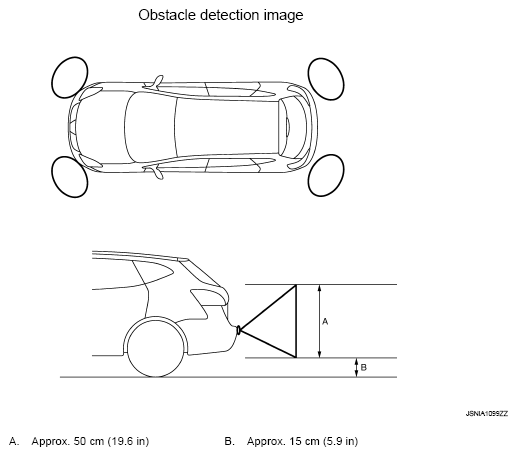

Obstacle detection distance
- Sonar control unit changes the outputs of the sonar indicator and warning buzzer in 3 stages according to the obstacle detection distance from the corner sensor.
- The sonar control unit can change the setting of obstacle detection distance in 4 stages.
DETECTION DISTANCE TABLE
| Warning item | Sensitivity level 1 (Faster warning) | Sensitivity level 2 (Default value) | Sensitivity level 3 (Slower warning) | Sensitivity level 4 (Slowest warning) |
|---|---|---|---|---|
| First stage warning | 70 - 80 cm (27.5 - 31.4 in) | 60 - 70 cm (23.6 - 27.5 in) | 50 - 60 cm (29.6 - 23.6 in) | 40 - 50 cm (15.7 - 19.6 in) |
| Second stage warning | 50 - 70 cm (19.6 - 27.5 in) | 40 - 60 cm (15.7 - 23.6 in) | 30 - 50 cm (11.8 - 19.6 in) | 30 - 40 cm (11.8 - 15.7 in) |
| Third stage warning | Less than 50 cm (19.6 in) | Less than 40 cm (15.7 in) | Less than 30 cm (11.8 in) | Less than 30 cm (11.8 in) |
