Sonar Buzzer Operation
Sonar control unit outputs the buzzer signal to other buzzers and operates the buzzer when the detection signal is input from the corner sensor.
It changes the buzzer cycle in 3 stages according to the detection distance.

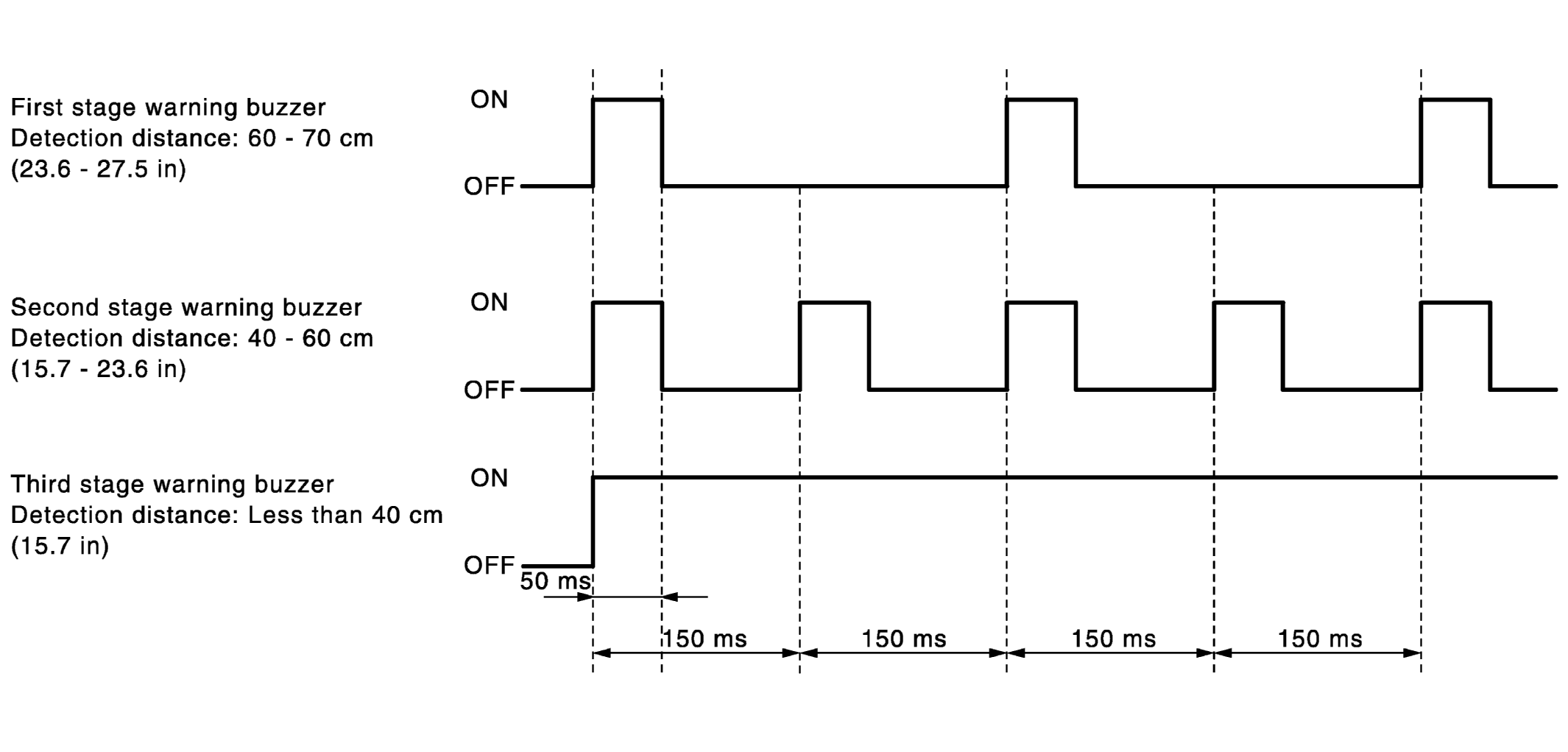

Fig 1: Identifying Sonar Buzzer Cycle Blinking Pattern
Courtesy of NISSAN MOTOR CO., U.S.A.
