Confirmation/Adjustment Mode

Start the diagnosis function and select "Confirmation/Adjustment". The confirmation/adjustment mode indicates where each item can be checked or adjusted.
Select each switch on the "Inspection & Adjustment Mode" screen to display the relevant trouble diagnosis screen. Press the "RETURN" switch to return to the initial Inspection & Adjustment Mode screen.

Fig 1: Identifying Multi AV System Screen Display - Confirmation/Adjustment Mode
Courtesy of NISSAN MOTOR CO., U.S.A.

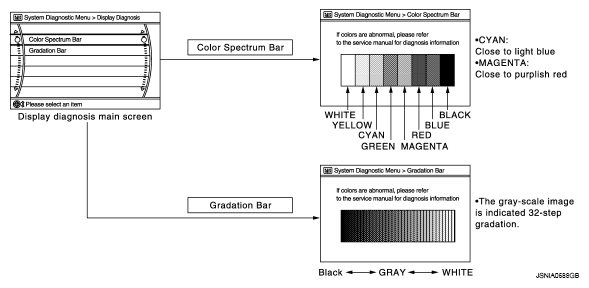

Display Diagnosis

Fig 2: Identifying Multi AV System Screen Display - Diagnosis Procedure

Courtesy of NISSAN MOTOR CO., U.S.A.

The tint of the color bar indication is as per the following list if a RGB signal error is detected.

R (red) signal error: Light blue (Cyan) tint

G (green) signal error: Purple (Magenta) tint

B (blue) signal error: Yellow tint

Vehicle Signals

A comparison check can be made of each actual vehicle signal and the signals recognized by the system.

Fig 3: Identifying Multi AV System Screen Display - Vehicle Signals

Courtesy of NISSAN MOTOR CO., U.S.A.

DIAGNOSIS ITEM REFERENCE

Diagnosis item	Display	Vehicle status	Remarks
Vehicle speed	ON	Vehicle speed > 0 km/h (0 MPH)	Changes in indication may be delayed. This is normal.
Vehicle speed	OFF	Vehicle speed = 0 km/h (0 MPH)
Parking brake	ON	Parking brake is applied.
Parking brake	OFF	Parking brake is released.
Lights	ON	Light switch ON	-
Lights	OFF	Light switch OFF	-
Ignition	ON	Ignition switch ON	-
Ignition	OFF	Ignition switch in the ACC position	-
Reverse	ON	Shift the selector lever to the "R" position	Changes in indication may be delayed. This is normal.
Reverse	OFF	Shift the selector lever to a position other than the "R" position	Changes in indication may be delayed. This is normal.

Speaker Test

Select "SPEAKER DIAGNOSIS" to display the Speaker Diagnosis screen. Press "START and NEXT" to generate a test tone in a speaker. Press "Start" to generate a test tone in the next speaker.

Press "End" to stop the test tones.

NOTE: The frequency of test tone emitted from each speaker is as follows.

FREQUENCY REFERENCE

Tweeter⁽¹⁾

: 3 kHz

Front speaker

: 300 Hz

Rear speaker

: 1 kHz

⁽¹⁾

Squawker

Fig 4: Identifying Multi AV System Display - Speaker Diagnosis Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

Climate Control

Refer to HEATER & AIR CONDITIONING CONTROL SYSTEM for details.

Error History

The self-diagnosis results are judged depending on whether any error occurs from when "Self-diagnosis" is selected until the self-diagnosis results are displayed.

However, the diagnosis results are judged normal if an error has occurred before the ignition SW is turned ON and then no error has occurred until the self-diagnosis start. Check the "Error Record" to detect any error that may have occurred before the self-diagnosis start because of this condition.

Count up method A

The counter resets to 0 if an error occurs when the IGN switch is turned ON. The counter increases by 1 if the condition is normal at the next IGN ON cycle.
The counter upper limit is 39. Any counts exceeding 39 are ignored. The counter can be reset (no error record display) with the "Delete log" switch or CONSULT-III.

Count up method B

The counter increases by 1 if an error occurs when the IGN switch is ON. The counter will not decrease even if the condition is normal at the next IGN ON cycle.
The counter upper limit is 50. Any counts exceeding 50 are ignored. The counter can be reset (no error record display) with the "Delete log" switch or CONSULT-III.

OCCURRENCE FREQUENCY

Display type of occurrence frequency	Error history display item
Count up method A	CAN communication line, control unit (CAN), AV communication line, control unit (AV communication)
Count up method B	Other than the above

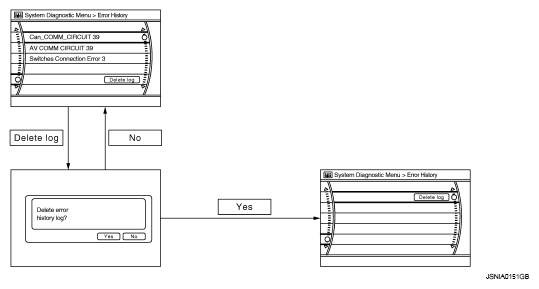

Fig 5: Identifying Multi AV System Screen Display - Error History

Courtesy of NISSAN MOTOR CO., U.S.A.

Error item

Error items may be displayed simultaneously according to the cause. If error items are displayed simultaneously, the detection of the cause can be detected by the combination of display items.

ERROR ITEM DESCRIPTION

Error item	Description	Possible malfunction factor/Action to take
CAN COMM CIRCUIT	CAN communication malfunction is detected.	Perform diagnosis with CONSULT-III, and then repair the malfunctioning parts according to the diagnosis results. Refer to CONSULT-III FUNCTION (MULTI AV) .
CONTROL UNIT (CAN)	CAN initial diagnosis malfunction is detected.	Replace AV control unit.
CONTROL UNIT (AV)	AV communication circuit initial diagnosis malfunction is detected.
FLASH-ROM Error Of Control Unit	AV control unit malfunction is detected.
CAN Controller Memory Error	AV control unit malfunction is detected.
Front Display Connection Error	When either one of the following items are detected: Display unit power supply or ground circuits malfunction are detected. Malfunction is detected in the communication circuits between AV control unit and display unit.	Display unit power supply and ground circuits. Communication circuits between AV control unit and display unit.
Camera Control Unit Connection Error	Malfunction is detected in the camera connection recognition circuit between AV control unit and camera control unit.	Camera-connection recognition circuits between AV control unit and camera control unit.
SAT Connection Error	When either one of the following items are detected: Satellite radio tuner power supply or ground circuits malfunction are detected. Malfunction is detected in the communication circuits between AV control unit and satellite radio tuner. Malfunction is detected in the request signal circuits between AV control unit and satellite radio tuner.	Satellite radio tuner power supply and ground circuits. Communication circuits between AV control unit and satellite radio tuner. Request signal circuit between AV control unit and satellite radio tuner.
AV COMM CIRCUIT Switches Connection Error	When either one of the following items are detected: Multifunction switch power supply or ground circuits malfunction are detected. Malfunction is detected in the AV communication circuits between AV control unit and multifunction switch.	Multifunction switch power supply and ground circuits. AV communication circuits between AV control unit and multifunction switch.
AV COMM CIRCUIT Rear View Camera Connection Error	When either one of the following items are detected: Camera control unit power supply or ground circuits malfunction are detected. Malfunction is detected in the AV communication circuits between camera control unit and the junction between AV control unit and multifunction switch.	Camera control unit power supply and ground circuits. AV communication circuits between camera control unit and the junction between AV control unit and multifunction switch.
AV COMM CIRCUIT Switches Connection Error Rear View Camera Connection Error	Malfunction is detected in the AV communication circuits between AV control unit and the junction between multifunction switch and camera control unit.	AV communication circuits between AV control unit and the junction between multifunction switch and camera control unit.

Vehicle CAN Diagnosis

CAN communication status and error counter is displayed.
The error counter displays "OK" if a malfunction was not detected in the past and displays "0" if a malfunction is detected. It increases by 1 if the condition is normal at the next ignition switch ON cycle. The upper limit of the counter is 39.
The error counter is erased if reset.

ITEM REFERENCE

Items	Display (Current)	Malfunction counter (Past)
Tx(HVAC)	OK / UNKWN	OK / 0 - 39
Rx(ECM)	OK / UNKWN	OK / 0 - 39
Rx(Cluster)	OK / UNKWN	OK / 0 - 39
Rx(BCM)	OK / UNKWN	OK / 0 - 39
Rx(HVAC)	OK / UNKWN	OK / 0 - 39
Rx(USM)	OK / UNKWN	OK / 0 - 39

Fig 6: Identifying Multi AV System Screen Display - CAN Communication Status & Error Counter

Courtesy of NISSAN MOTOR CO., U.S.A.

AV COMM Diagnosis

Displays the communication status between the AV control unit (master unit) and each unit.
The error counter displays "OK" if any malfunction was not detected in the past and displays "0" if a malfunction is detected. It increases by 1 if the condition is normal at the next ignition switch ON cycle. The upper limit of the counter is 39.
The error counter is erased if reset.

ITEM STATUS

Items	Status (Current)	Counter (Past)
C Tx(ITM-SW)	OK / UNKWN	OK / 0 - 39
C Rx(PrimarySW-ITM)	OK / UNKWN	OK / 0 - 39
C Rx(XM-ITM)	-	-

Fig 7: Identifying Multi AV System Screen Display - AV COMM Diagnosis

Courtesy of NISSAN MOTOR CO., U.S.A.

Camera Cont.

The two functions of "Connection Confirmation" and "Adjust Offset of Rear View Camera" are available.

CONNECTION CONFIRMATION

The steering angle sensor, reverse signal and vehicle speed sensor can be inspected.

Fig 8: Identifying Multi AV System Screen Display - Steering Angle, Reverse & Vehicle Speed Sensor Signal

Courtesy of NISSAN MOTOR CO., U.S.A.

ITEM REFERENCE

Diagnosis item	Display	Vehicle status
Steer. Angle Sensor	ON	When steering the vehicle with ignition switch ON (remains ON until connection mode is stopped when it is turned ON)
	OFF	Ignition switch ACC No steering with ignition switch ON
	-	Malfunction detected in camera connection recognition signal
Reverse Sensor	ON	Shift the selector lever to the "R" position with ignition switch ON
	OFF	Ignition switch at ACC Shift the selector lever to a position other than the "R" position with ignition switch ON
	-	Malfunction detected in camera-connection recognition signal
Vehicle Speed Sensor	ON	Vehicle speed is more than 0 km/h (0 MPH) with ignition switch ON
	OFF	Ignition switch ACC Vehicle speed is 0 km/h (0 MPH) with ignition switch ON
	-	Malfunction detected in camera connection recognition signal
Side view Switch	-	Not used
