System Diagram

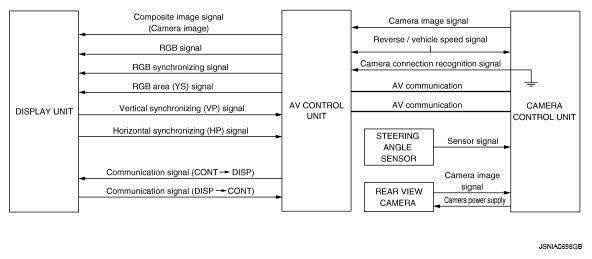

Fig 1: Identifying Rear View Monitor System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
