Operation Description

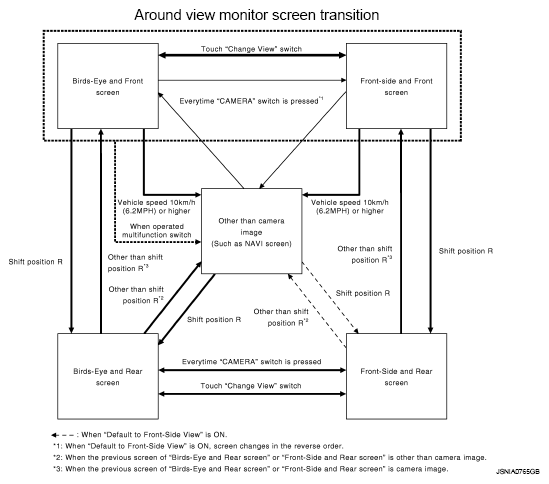

- Around view monitor operates by pressing the "CAMERA" switch of multifunction switch and shifting the selector switch to the reverse position.
- When the selector lever is in any position other than the reverse position, the screen is switched to the around view monitor by pressing the "CAMERA" switch.
- The screen is switched to the around view monitor by shifting the selector lever to the reverse position.
- In the around view monitor, Birds-Eye view and Front-side view can be switched by pressing the "CAMERA" switch or the touch switch of display.
- The "Front-Side and Front screen" are displayed as a priority when turning "Default to Front-Side View" ON.
- The around view monitor is cancelled 3 minutes after pressing the "CAMERA" switch, and then the screen returns to the screen before displaying the around view monitor when selector lever is in a position other than the "R" position.
- ON/OFF setting of sonar indicator display on the Front-Side view screen can be performed.
- In the Birds-Eye view, the invisible area is displayed on the image to specify the boundary of the 4 cameras. The invisible area is displayed in yellow in the Birds-Eye view after turning the ignition switch ON.
- The sonar (both of buzzer and sound) operates only when the camera screen is displayed.
FRONT VIEW
- The front view image is from the front camera.
- When the selector lever is in any position other than the reverse position, the front view is displayed by pressing the "CAMERA" switch. It improves the visibility of obstacles in front of the vehicle and helps driving by the images displayed from Birds-Eye view and Front-Side view.
- Display the vehicle width guiding line and vehicle distance guiding line in front view and display the predicted course line according to the steering angle.
- If the steering angle is within approximately 90 degrees, the predicted course lines on the left/right side are displayed. If the steering angle is exceeding approximately 90 degrees, only the predicted course line on the outside (in the opposite side of steering direction) is displayed.
- Around view monitor control unit controls the direction and distance of the predicted course line according to the sensor signal from steering angle sensor.
REAR VIEW
- The rear view image is from the rear camera.
- When the selector lever is in the reverse position, the rear view is displayed. Backing and parking are improved by the images from Birds-Eye view and Front-Side view.

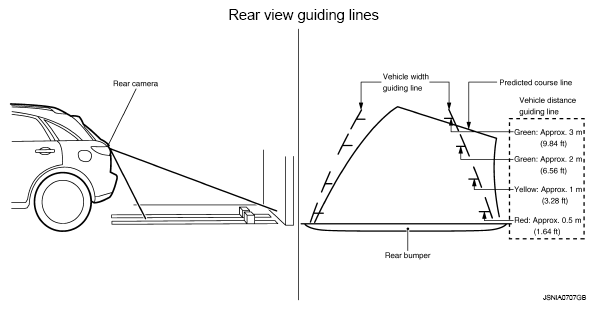

- Display the vehicle width guiding line and vehicle distance guiding line in Rear view and display the predicted course line according to the steering angle.
- The predicted course line is not displayed at the steering neutral position. The predicted course line is displayed and the vehicle width guiding line is not displayed by turning the steering wheel.
- Around view monitor control unit controls the direction and distance of predicted course line according to the sensor signal from steering angle sensor.
FRONT-SIDE VIEW
- The front-side view image is from the side camera RH.
- In Front-Side view, display the vehicle distance guiding line and vehicle width guiding line.
- The infrared LED illumination is installed on the door mirror RH to illuminate around the front wheels.
BIRDS-EYE VIEW

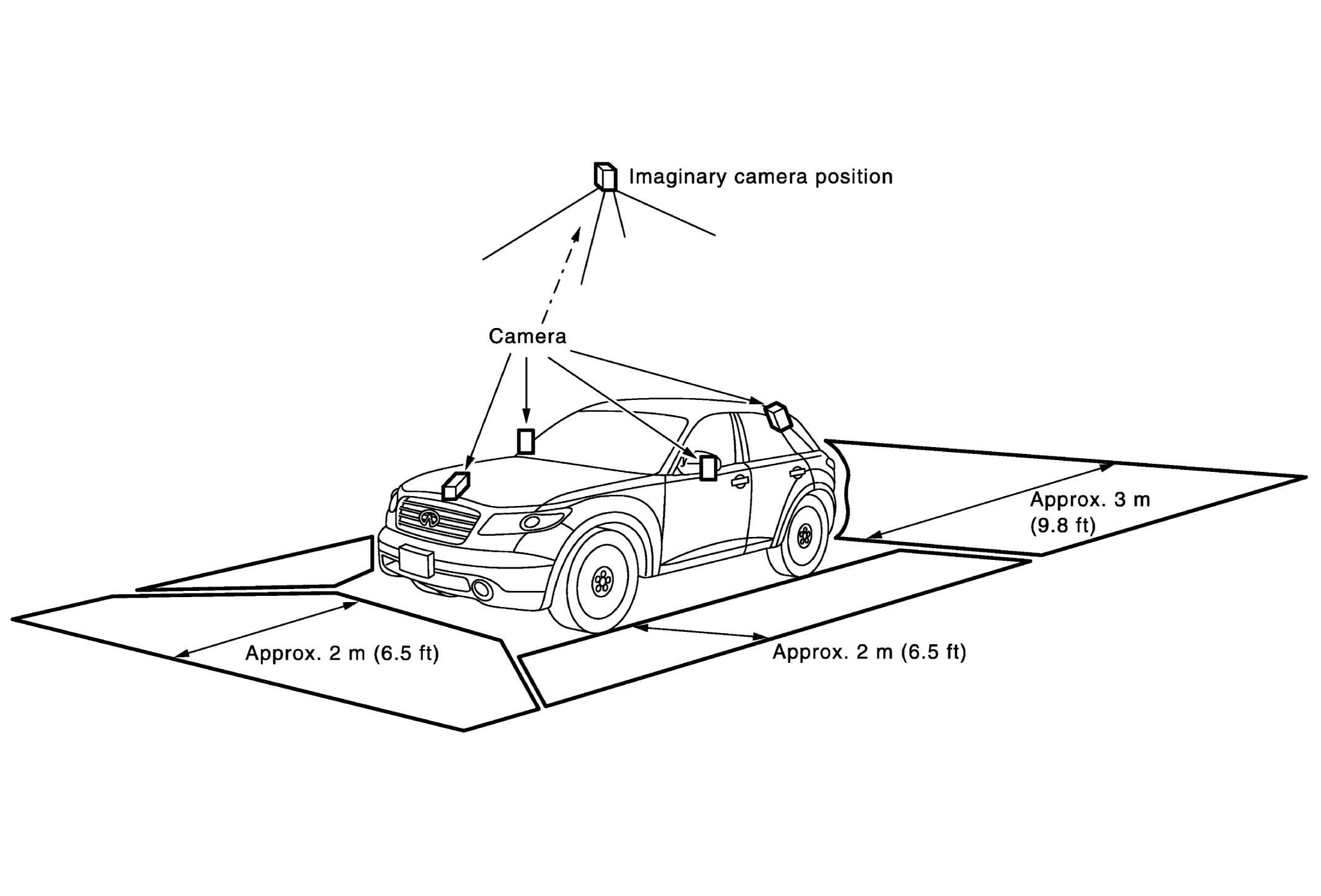

- The image from the 4 cameras is cut out and converted into the overhead view, and the surroundings of the vehicle is displayed in birds-eye view.
- In Birds-Eye view, the invisible area is displayed on the image to specify the boundary of the 4 cameras.
- The invisible area is displayed in yellow in the Birds-Eye view after turning the ignition switch ON as an information for the user. (OFF setting can be performed)
