Audio, Visual & Navigation System - BOSE Audio With Navigation - Basic Inspection And Function Diagnosis
>>
BOSE Audio With Navigation
>>
Function Diagnosis
>>
Around View Monitor System
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

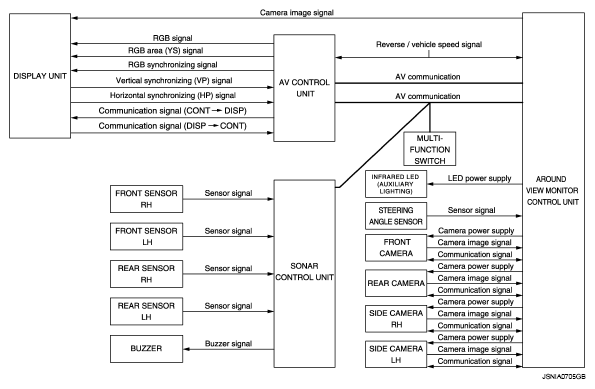

Fig 1: Identifying Around View Monitor System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
