Passenger Compartment

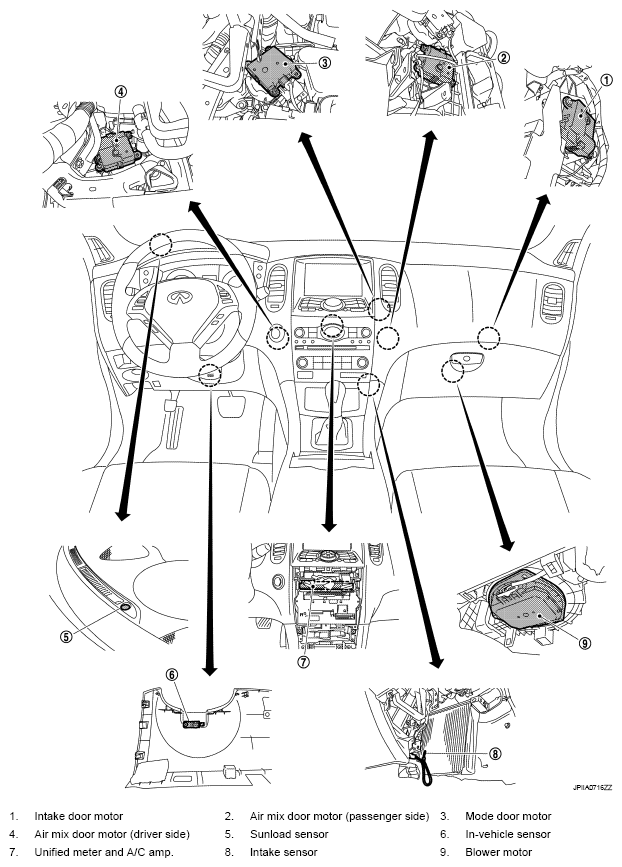

Fig 1: Identifying Passenger Compartment Parts Location
G05727697Courtesy of NISSAN MOTOR CO., U.S.A.

WITH LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL
