Cooling Fan Control Module Connector End View (E37)

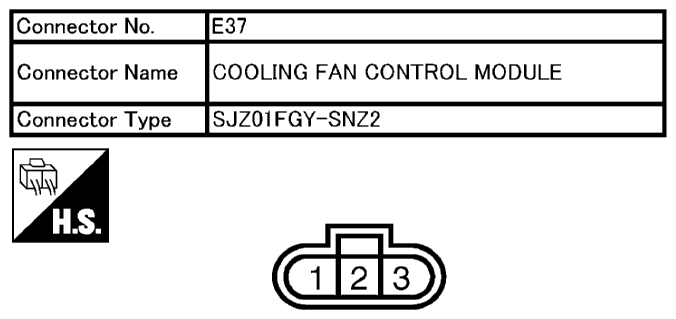

Fig 1: Cooling Fan Control Module Connector End View (E37)
G10626654Courtesy of NISSAN NORTH AMERICA, INC.
