Power Steering Control Unit Connector End View (M108)

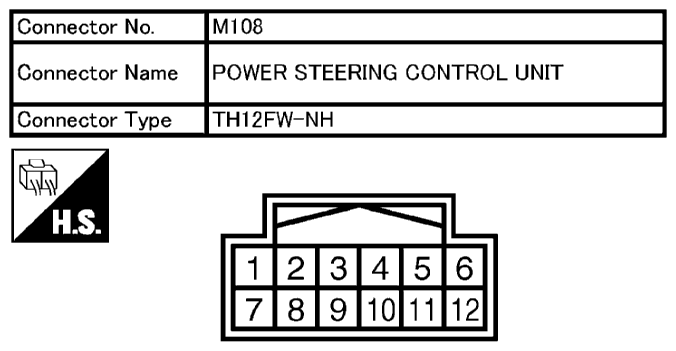

Fig 1: Power Steering Control Unit Connector End View (M108)
G10626725Courtesy of NISSAN NORTH AMERICA, INC.
