Component Description
- Airbag diagnosis sensor unit are prepared for operation while the ignition switch is in the ON or START position.
- The operation of supplemental restraint system is different from collision modes applications. For example, the driver airbag module and front passenger airbag module are activated in a frontal collision but not in a side collision.
- SRS configurations which are activated for some collision modes are as follows.

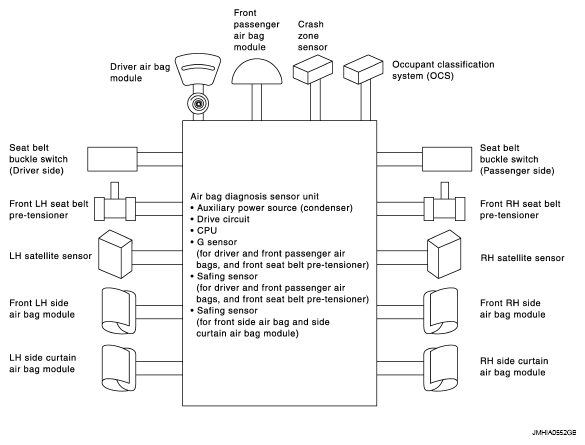

SRS CONFIGURATIONS
| SRS configuration | Frontal collision | Left side collision | Right side collision |
|---|---|---|---|
| Driver airbag module. Refer to B1209: FRONTAL COLLISION DETECTION | x | - | - |
| Front passenger airbag module. Refer to B1209: FRONTAL COLLISION DETECTION | x | - | - |
| Front LH seat belt pre-tensioner. Refer to B1209: FRONTAL COLLISION DETECTION | x | - | - |
| Front RH seat belt pre-tensioner. Refer to B1209: FRONTAL COLLISION DETECTION | x | - | - |
| Front LH side airbag module. Refer to B1210: SIDE COLLISION DETECTION | - | x | - |
| Front RH side airbag module. Refer to B1210: SIDE COLLISION DETECTION | - | - | x |
| LH side curtain airbag module. Refer to B1210: SIDE COLLISION DETECTION | - | x | - |
| RH side curtain airbag module. Refer to B1210: SIDE COLLISION DETECTION | - | - | x |
| x: Application, -: Not application | |||
