Exploded View

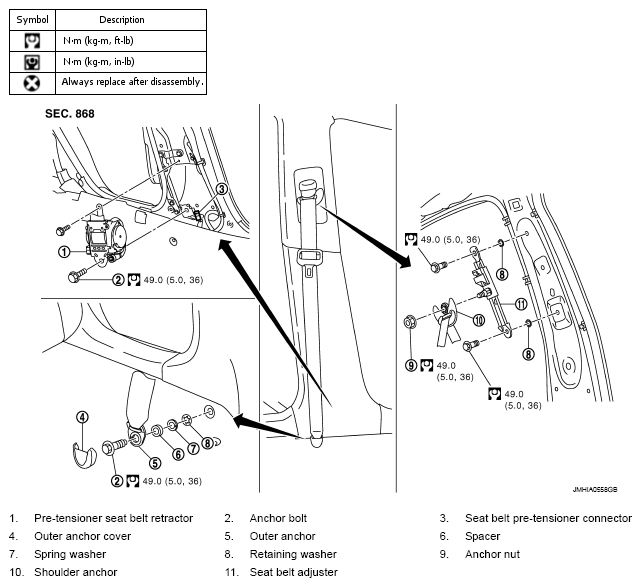

Fig 1: Exploded View Of Seat Belt Retractor With Torque Specifications
G05729728Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for symbols in the figure.
