System - Engine Mechanical & Other

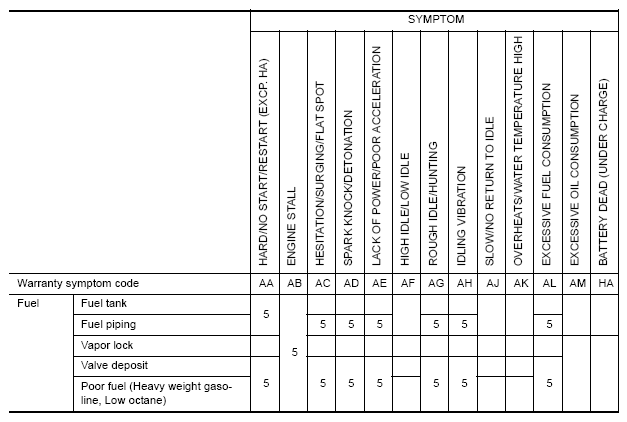

Fig 1: Symptom Matrix Chart (1 Of 3)
G05217089Courtesy of NISSAN MOTOR CO., U.S.A.

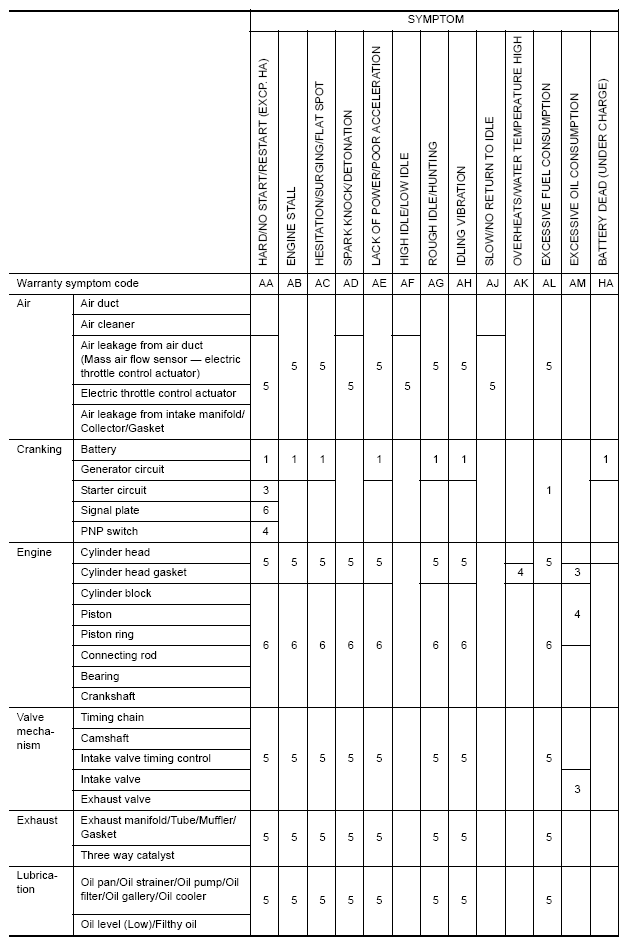

Fig 2: Symptom Matrix Chart (2 Of 3)
G05217090Courtesy of NISSAN MOTOR CO., U.S.A.

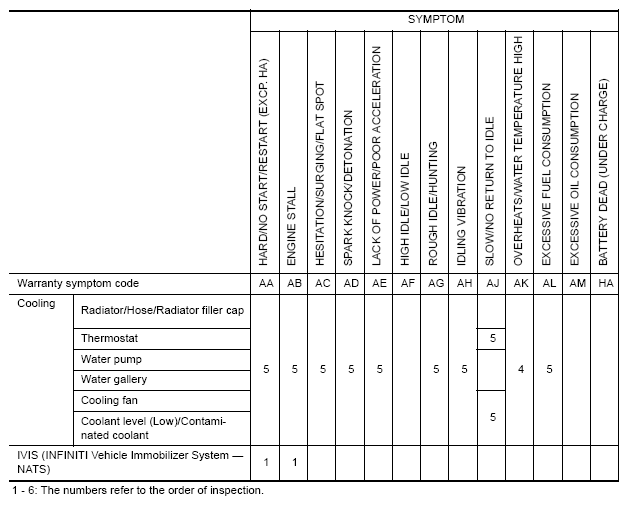

Fig 3: Symptom Matrix Chart (3 Of 3)
G05217091Courtesy of NISSAN MOTOR CO., U.S.A.
