Exploded View

See RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS

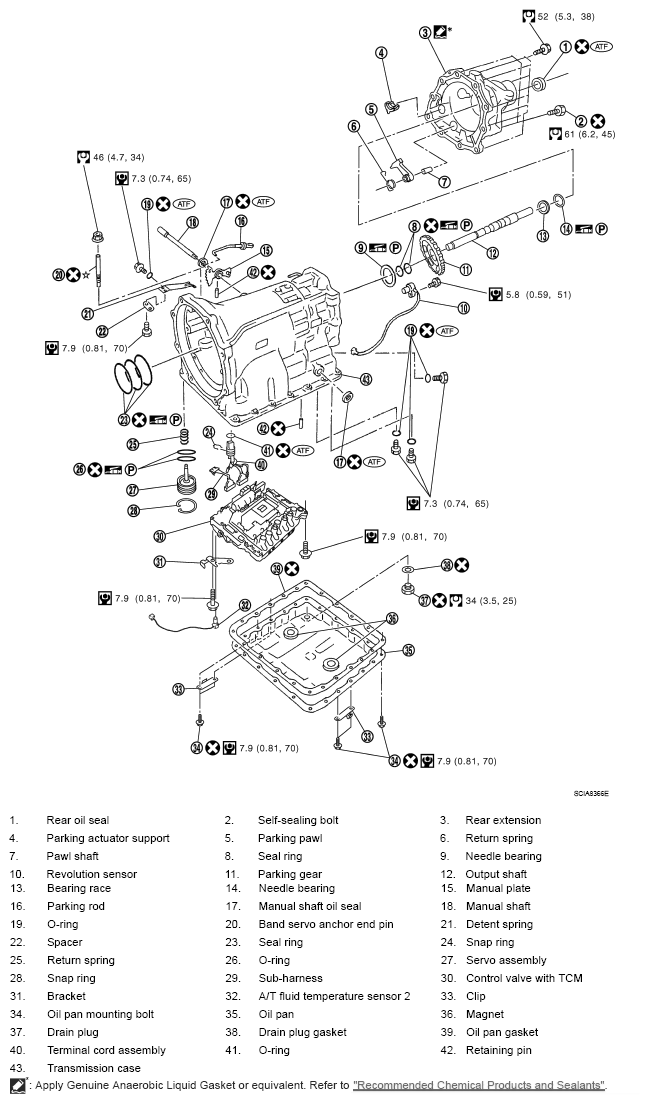

Fig 1: Exploded View Of Transmission Assembly With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.

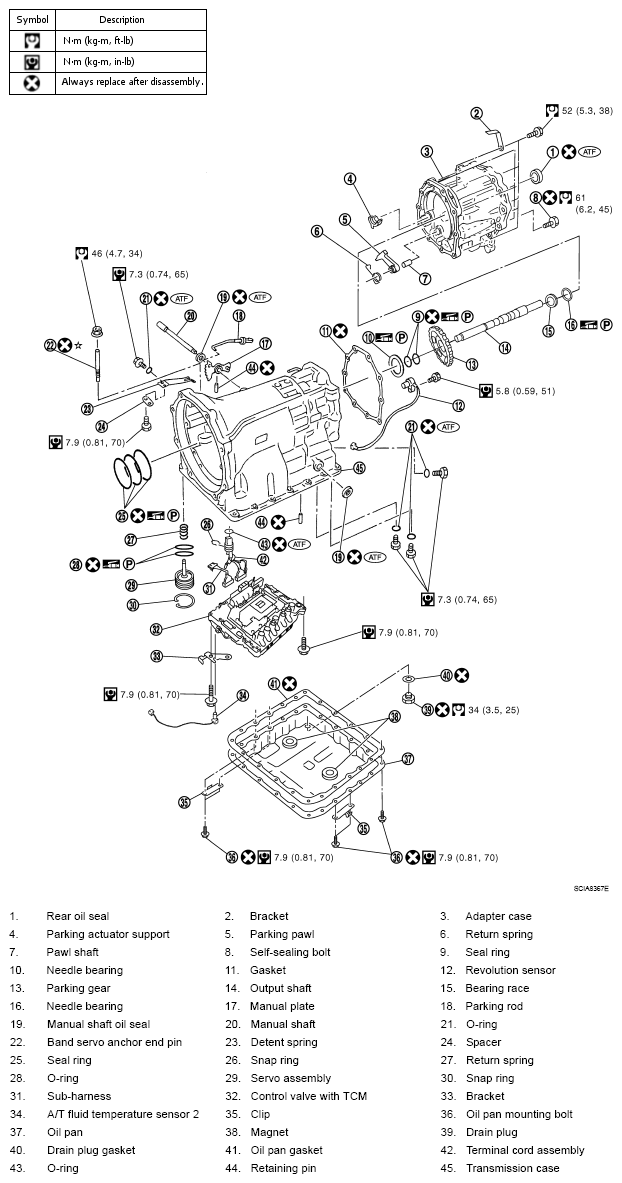

Fig 2: Exploded View Of Transmission Assembly

Courtesy of NISSAN MOTOR CO., U.S.A.

See RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS

Fig 3: Exploded View Of Transmission Assembly (2WD) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.

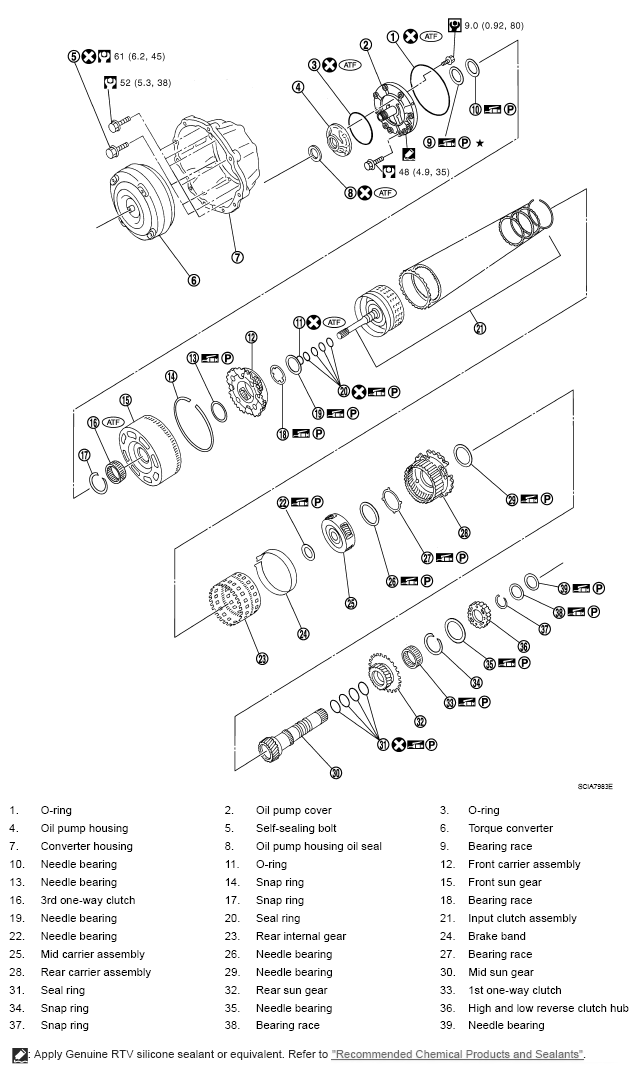

Fig 4: Exploded View Of Transmission Assembly (AWD) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
