Removal and Installation: Removal

  1. Remove the power window main switch finisher (2). Refer to REMOVAL AND INSTALLATION .
  2. Power window main switch (1) is removed from power window main switch finisher (2) using flat-head screw driver (A) etc.

    Δ: Pawl

CAUTION: Do not fold the pawl of power window main switch finisher.
NOTE: The same procedure is also performed for front power window switch (passenger side) and rear power window switch (LH & RH).

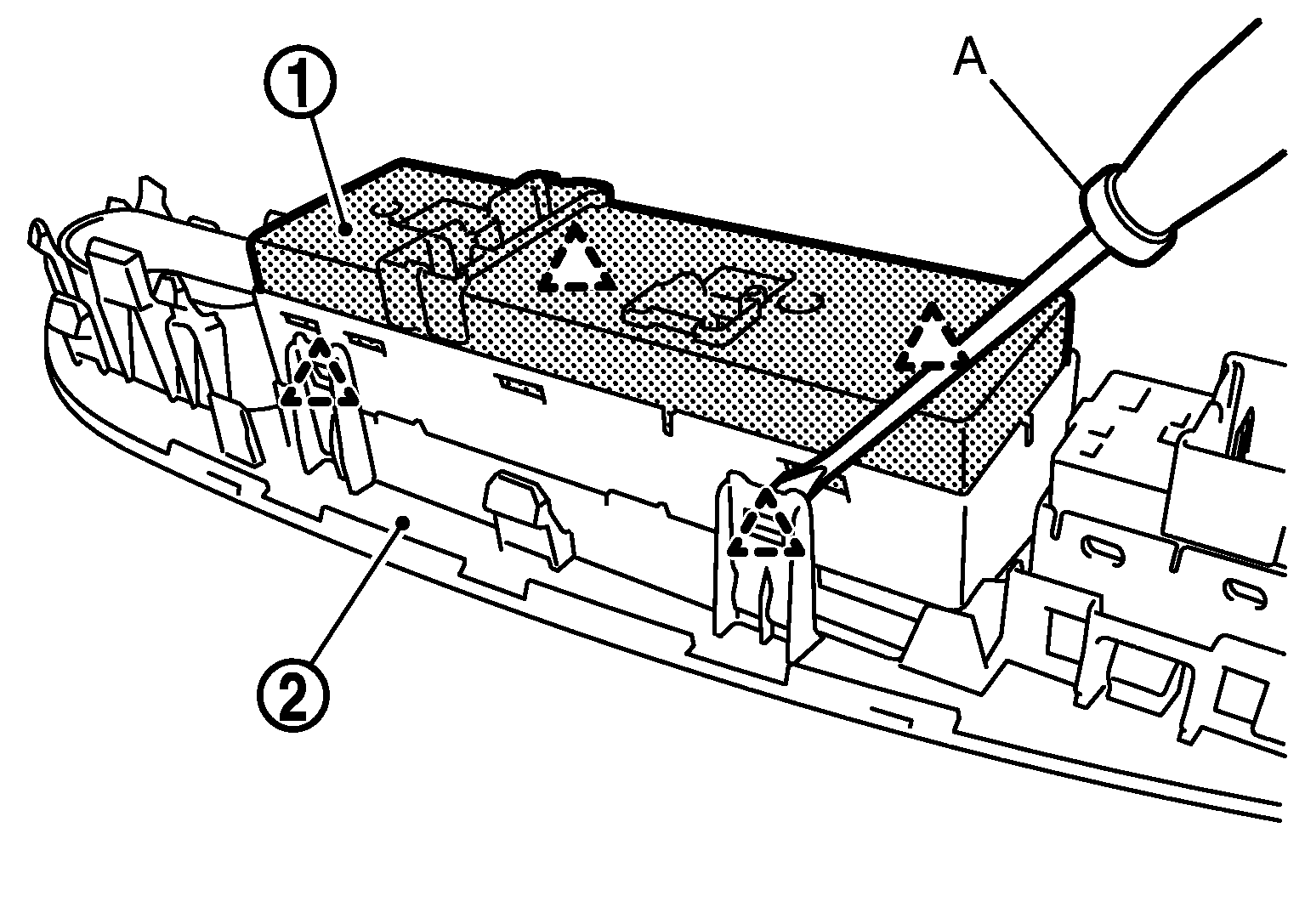

Fig 1: Identifying Power Window Main Switch And Power Window Main Switch Finisher
G04888503Courtesy of NISSAN MOTOR CO., U.S.A.
