2WD : Exploded View: Removal

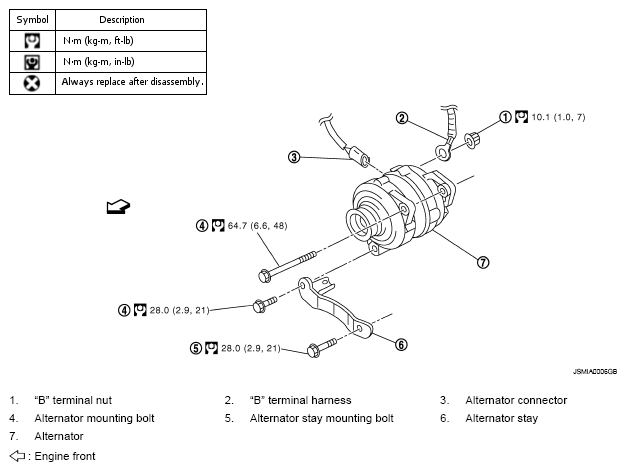

Fig 1: Exploded View Of Alternator (2WD) With Torque Specifications
G05226766Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
