AWD : Exploded View

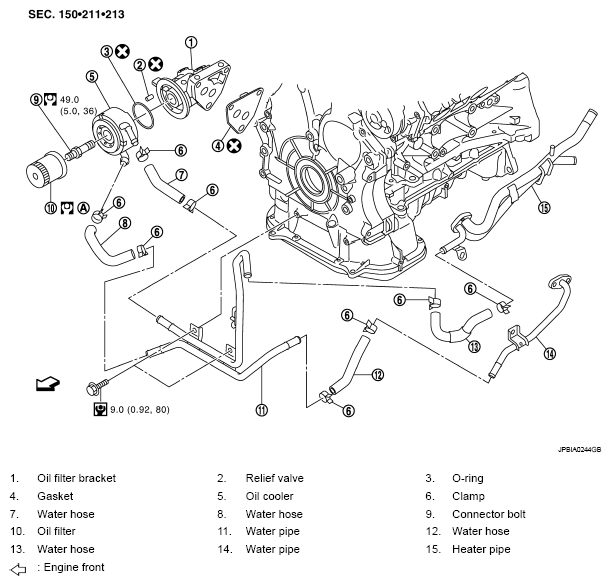

Fig 1: Exploded View Of Oil Cooler (AWD)
G05224153Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbol marks in the figure.
