Intelligent Key Unit: Removal
WARNING: This page is about a different car, the 2008 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the instrument panel. Refer to "REMOVAL AND INSTALLATION ".

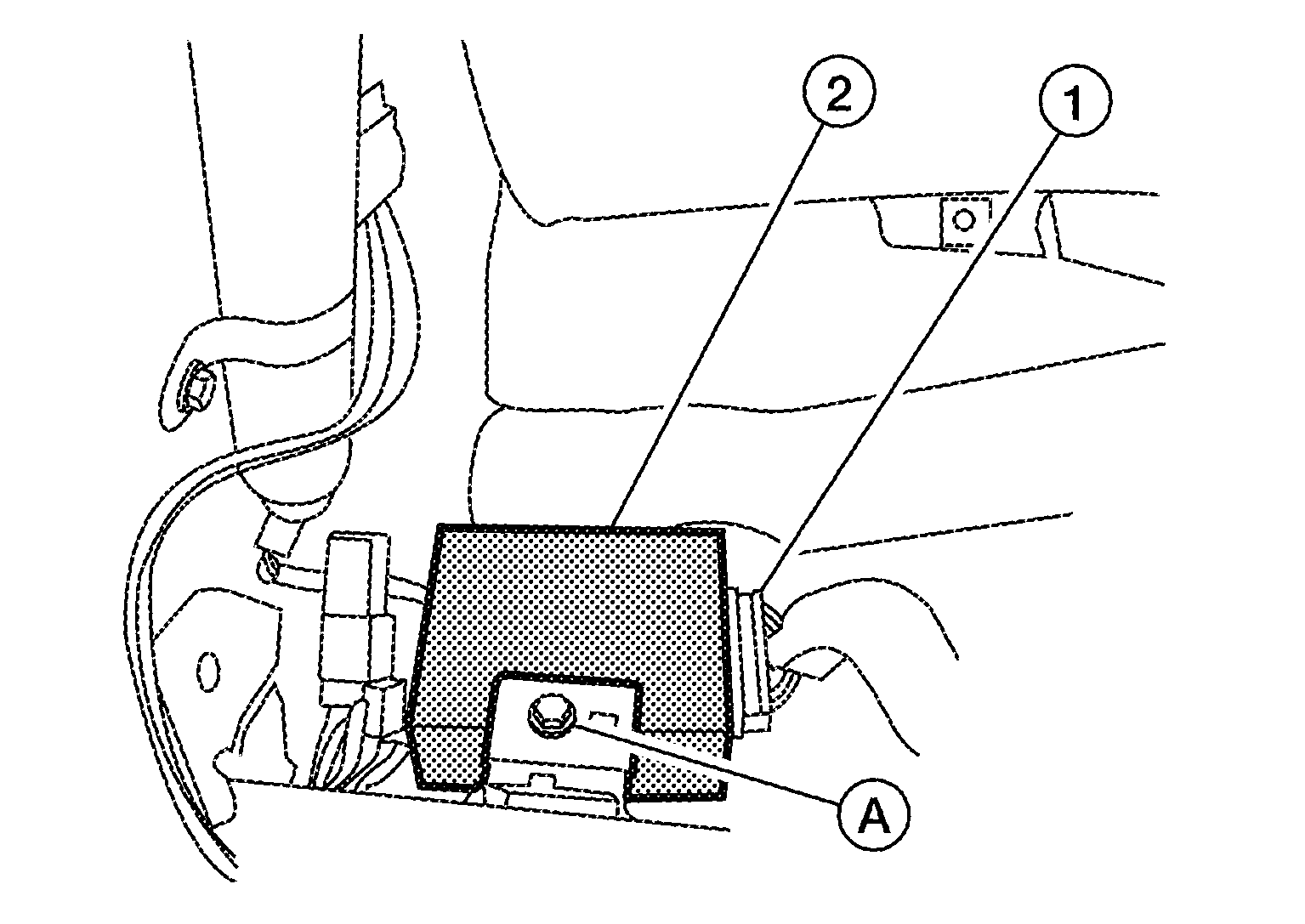

- Disconnect the wire harness (1), remove the bolt (A) and the Intelligent key unit (2).
