Cross-Sectional View

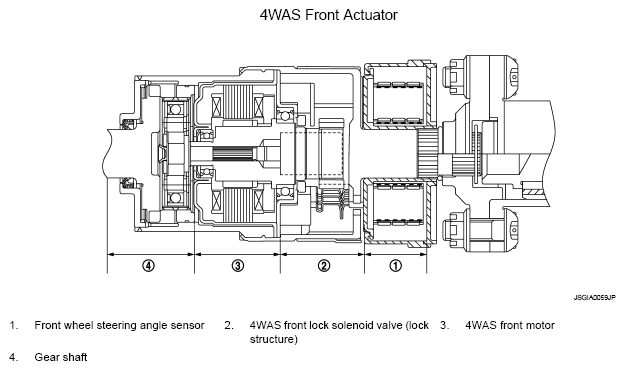

Fig 1: Cross-Sectional View Of 4WAS Front Actuator
G05208072Courtesy of NISSAN MOTOR CO., U.S.A.

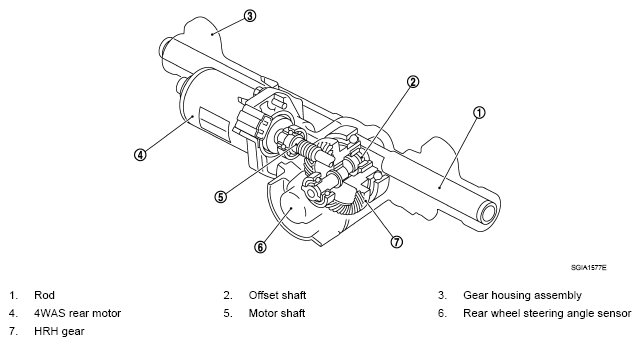

Fig 2: Identifying 4WAS Rear Actuator Components
G05208073Courtesy of NISSAN MOTOR CO., U.S.A.
