Component Parts Location

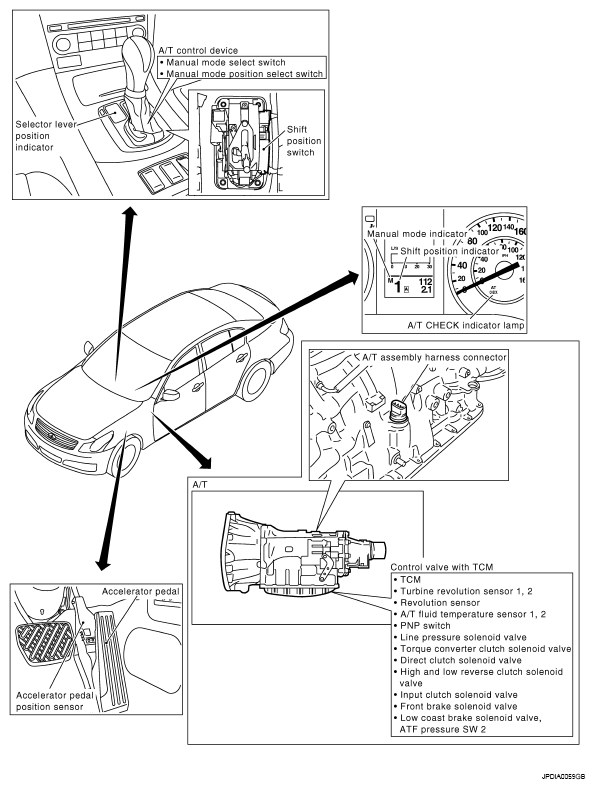

Fig 1: Identifying A/T Control System Components Location - Without Paddle Shifter
Courtesy of NISSAN MOTOR CO., U.S.A.

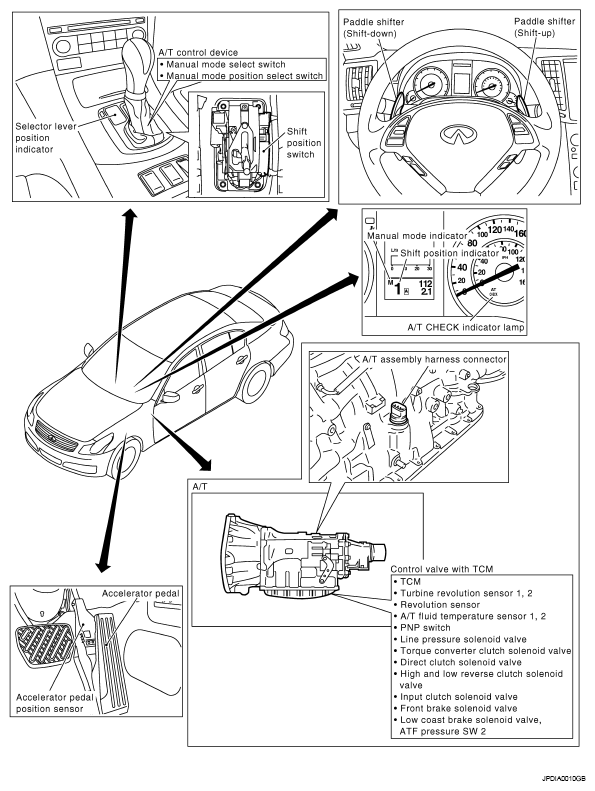

Fig 2: Identifying A/T Control System Components Location - With Paddle Shifter
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
