Control Device: 2WD: Removal

  1. Disconnect lower lever of control device and control rod.
  2. Move selector lever to "N" position.
  3. Remove knob cover (A) below selector lever downward.
  4. Pull lock pin (1) out of selector lever knob (2).
  5. Remove selector lever knob (2).
  6. Remove console finisher assembly, rear upper console assembly and front console bracket. Refer to "EXPLODED VIEW ".
  7. Remove the center console assembly (with rear ventilator). Refer to "EXPLODED VIEW ".
  8. Remove the rear ventilator duct 2 (with rear ventilator). Refer to "REAR FLOOR DUCT 1 & REAR VENTILATOR DUCT 1(WITH REAR VENTILATOR) : EXPLODED VIEW ".

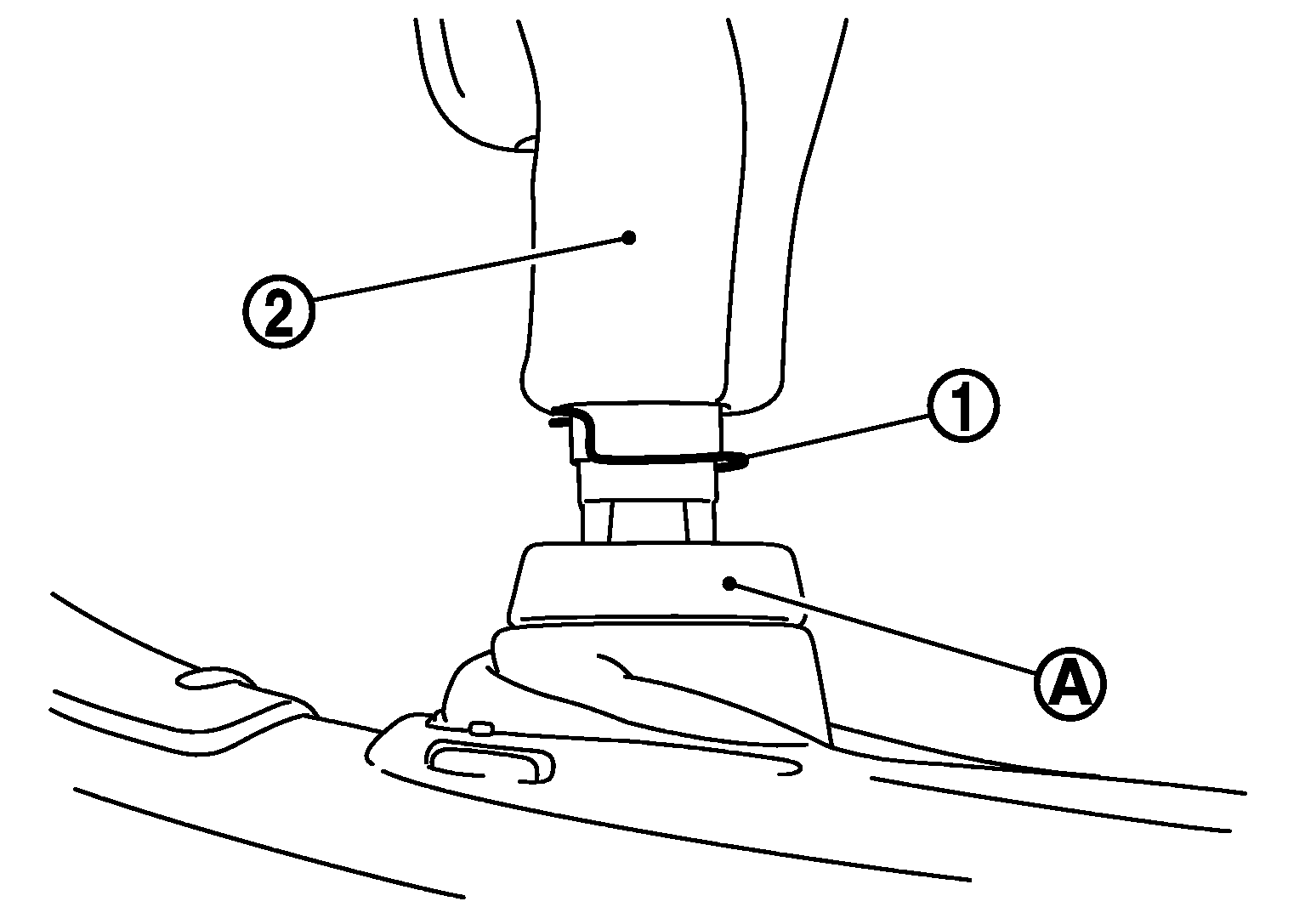

    Fig 1: Identifying Knob Cover, Lock Pin And Selector Lever Knob
    G05218592Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Disconnect A/T device harness connector.
  10. Remove control device assembly.
  11. Remove the following parts if necessary.
  1. Selector lever position indicator
    1. Remove the cigarette lighter harness connector (A) from the console finisher assembly.

      ← : Screw

    2. Remove the insert finisher (1) from the console finisher.
    3. Remove the selector lever position indicator.
  2. Shift lock unit
    1. Remove the shift lock unit from the control device assembly.
      Fig 2: Identifying Cigarette Lighter Harness Connector And Insert Finisher
      G05218593Courtesy of NISSAN MOTOR CO., U.S.A.
