Control Device: AWD: Removal

  1. Disconnect lower lever of control device and control rod.
  2. Move selector lever to "N" position.
  3. Remove knob cover (A) below selector lever downward.
  4. Pull lock pin (1) out of selector lever knob (2).
  5. Remove selector lever knob (2).
  6. Remove console finisher assembly, rear upper console assembly and console front bracket. Refer to "EXPLODED VIEW ".
  7. Remove center console assembly. Refer to "EXPLODED VIEW ".
  8. Remove the rear ventilator duct 2 (with rear ventilator). Refer to "REAR FLOOR DUCT 1 & REAR VENTILATOR DUCT 1(WITH REAR VENTILATOR) : EXPLODED VIEW ".
    Fig 1: Identifying Knob Cover, Lock Pin And Selector Lever Knob
    G05218595Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Disconnect A/T device harness connector.
  10. Move selector lever to "P" position.
  11. Move passenger's seat to the end.
  12. Remove control device assembly mounting dolts.
  13. Slightly lift the control device assembly (1) and slide it rightward. Then pull it out in the diagonally right direction.

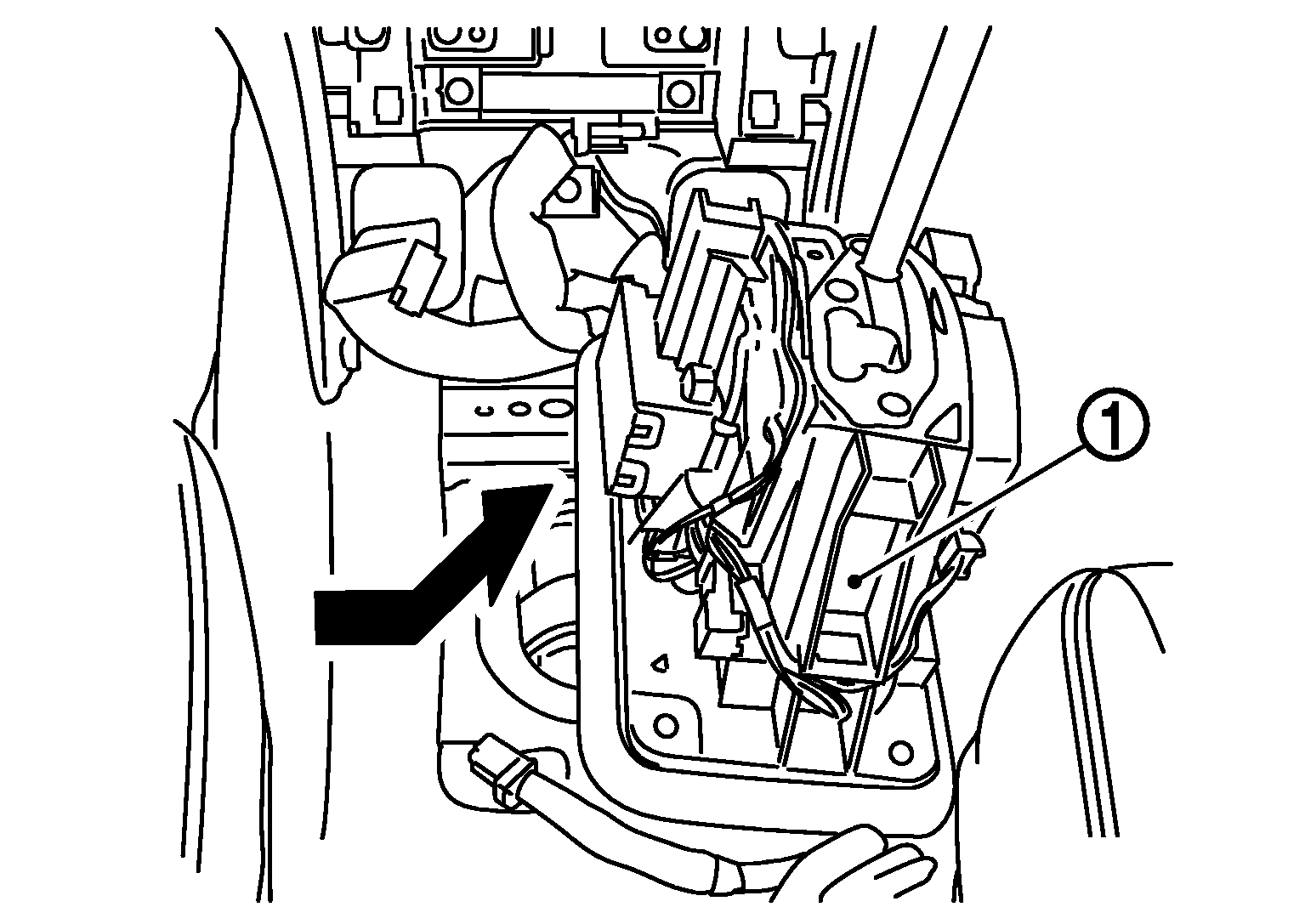

    Fig 2: Lifting Control Device Assembly
    G05218596Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Remove the following parts if necessary.
  1. Selector lever position indicator
    1. Remove the cigarette lighter harness connector (A) from the console finisher.

      ← : Screw

    2. Remove the insert finisher (1) from the console finisher.
    3. Remove the selector lever position indicator.
  2. Shift lock unit
    1. Remove the shift lock unit from the control device assembly.
      Fig 3: Identifying Cigarette Lighter Harness Connector And Insert Finisher
      G05218597Courtesy of NISSAN MOTOR CO., U.S.A.
