Revolution Sensor: 2WD: Installation

  1. Install revolution sensor (1) in transmission case. Tighten a necessary bolt for revolution sensor with specified torque.

    (Bold Arrow) ← : Bolt

    CAUTION:
    • Do not subject it to impact by dropping or hitting it.
    • Do not disassemble.
    • Do not allow metal filings, etc. to get on the sensor's front edge magnetic area.
    • Do not place in an area affected by magnetism.
      Fig 1: Identifying Revolution Sensor
      G05218690Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Connect revolution sensor connector (A).
  3. Engage revolution sensor harness with clip ((Bold Arrow) ←).
    Fig 2: Identifying Revolution Sensor Connector
    G05218691Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to rear extension assembly as shown in the figure.
    1. Start and finish point shall be in the center of two bolts  .
    2. 3 - 5 mm (0.12 - 0.20 in)

    Sealant width (C) : 1.0 - 2.0 mm (0.04 - 0.08 in)

    Sealant height (C) : 0.4 - 1.0 mm (0.016 - 0.04 in)

    CAUTION: Completely remove all moisture, oil and old sealant, etc. from transmission case and rear extension assembly mounting surfaces.

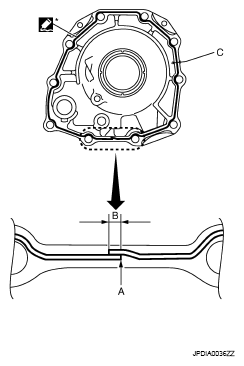

    Fig 3: Identifying Sealant Applying Area Of Rear Extension Assembly
    G05218692Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install rear extension assembly (with needle bearing) to transmission case.
    CAUTION: Insert the tip of parking rod between the parking pole and the parking actuator support when assembling the rear extension assembly.
    Fig 4: Installing Rear Extension Assembly To Transmission Case
    G05218693Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Tighten rear extension assembly bolts to the specified torque.

    1 : Self-searing bolt

    A : Bolt

  7. Install rear engine mounting member. Refer to , "2WD : EXPLODED VIEW ".
  8. Install oil pan gasket to oil pan.
    Fig 5: Identifying Rear Extension Assembly And Transmission Case Bolts
    G05218694Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • Do not reuse oil pan gasket.
    • Install it in the direction to align hole positions.
    • Complete remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.
  9. Install oil pan (2) (with oil pan gasket) and clips (1) to transmission case.

    ← : Vehicle front

    (Bold Arrow) ← : Oil pan mounting bolt

    CAUTION:
    • Install it so that drain plug (3) comes to the position as shown in the figure.
    • Be careful not to pinch harnesses.
    • Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.
      Fig 6: Locating Oil Pan Mounting Bolts
      G05218695Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them. Tighten necessary oil pan mounting bolts with specified torque.

    ← : Vehicle front

    CAUTION: Do not reuse oil pan mounting bolts.
  11. Install drain plug to oil pan. Tighten a necessary drain plug with specified torque.
    CAUTION: Do not reuse drain plug gasket.
    Fig 7: Identifying Tightening Sequence Of Oil Pan Mounting Bolts
    G05218696Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Install bracket (2) to transmission assembly.

    ← : Vehicle front

    (Bold Arrow) ← : Bolt

  13. Install heated oxygen sensor 2 harness (B) to clips (1).
  14. Connect heated oxygen sensor 2 harness connector (A).
  15. Install exhaust mounting bracket. Refer to "EXPLODED VIEW ".
  16. Install control rod. Refer to , "2WD : EXPLODED VIEW ".
  17. Install rear propeller shaft. Refer to "EXPLODED VIEW ".
  18. Install heat insulator.
  19. Install exhaust front tube and center muffler. Refer to "EXPLODED VIEW ".
  20. Pour ATF into A/T assembly. Refer to , "CHANGING ".
  21. Connect the battery cable to the negative terminal.
    Fig 8: Identifying Heated Oxygen Sensor 2 Harness Connectors And Heated Oxygen Sensor 2 Harness
    G05218697Courtesy of NISSAN MOTOR CO., U.S.A.
