WITH LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL SYSTEM : System Description
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
WITH LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL SYSTEM : System Description

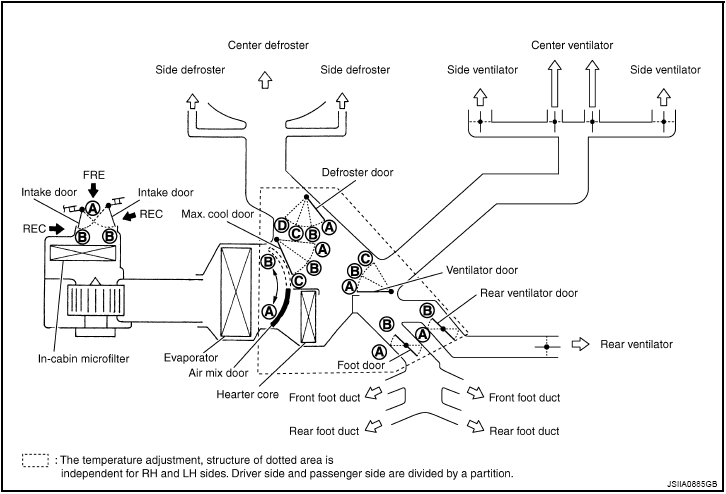

Fig 1: With Left And Right Ventilation Temperature Separately Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

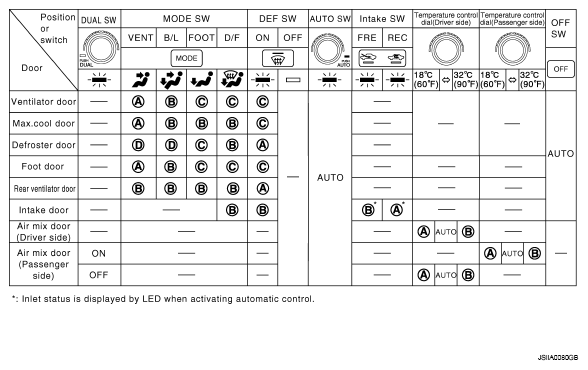

Fig 2: Identifying Switches And Their Control Function
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
