Cross-Section View

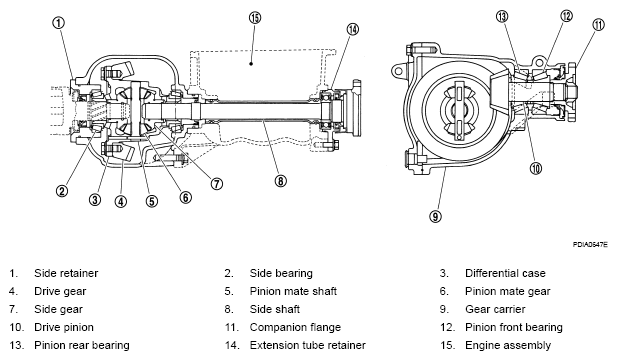

Fig 1: Identifying Front Final Drive Assembly Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
