ICC Steering Switch

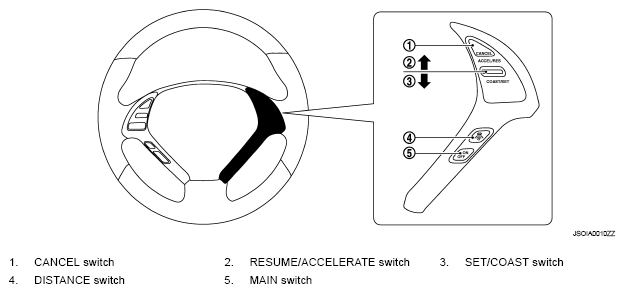

ICC system is operated by MAIN switch and four control switches, all mounted on the steering wheel.
NOTE:
The on board self-diagnosis function of the ICC system can be started with the RESUME/ACCELERATE switch and SET/COAST switch. Refer to
, "DIAGNOSIS DESCRIPTION ".
In Vehicle-To-Vehicle Distance Control Mode
SWITCH DESCRIPTION
| No. | Switch name | Description |
|---|---|---|
| 1 | CANCEL switch | Deactivates system without erasing set speed. |
| 2 | RESUME/ACCELERATE switch | Resumes set speed or increases speed incrementally. |
| 3 | SET/COAST switch | Sets desired cruise speed or reduces speed incrementally. |
| 4 | DISTANCE switch | Changes the following distance from: Long, Middle, Short. |
| 5 | MAIN switch | Master switch to activate the system (Press for less than 1.5 seconds). |
In Conventional (Fixed Speed) Cruise Control Mode
SWITCH DESCRIPTION
| No. | Switch name | Description |
|---|---|---|
| 1 | CANCEL switch | Deactivates system without erasing set speed. |
| 2 | RESUME/ACCELERATE switch | Resumes set speed or increases speed incrementally. |
| 3 | SET/COAST switch | Sets desired cruise speed or reduces speed incrementally. |
| 4 | DISTANCE switch | Ineffective in this mode. |
| 5 | MAIN switch | Master switch to activate the system (Press for more than 1.5 seconds). |
