System Diagram

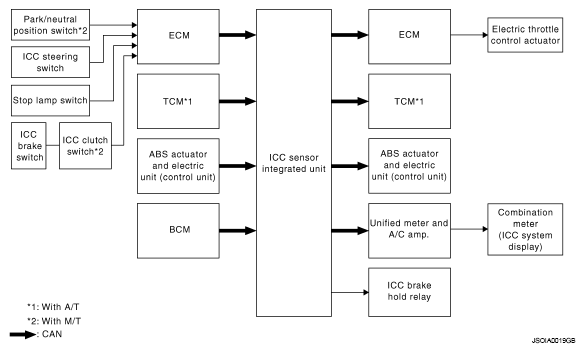

Fig 1: Intelligent Cruise Control System - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
