Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

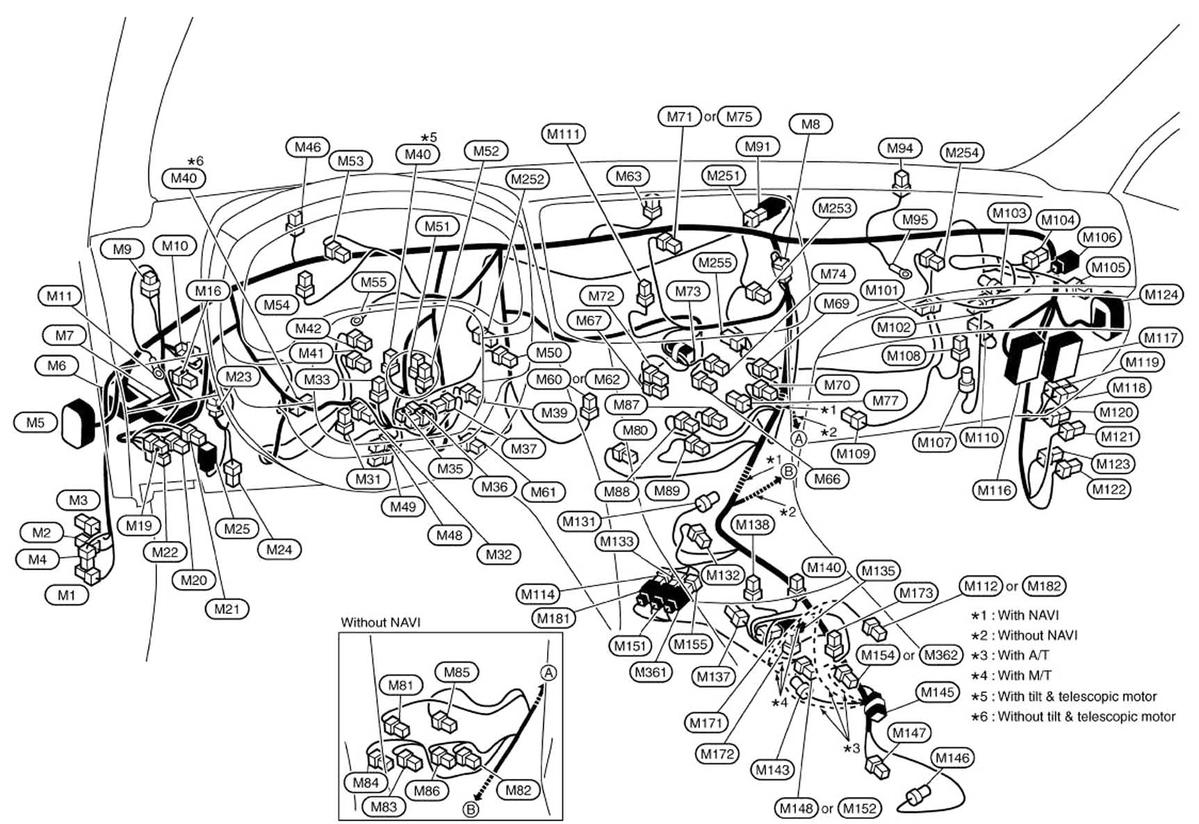

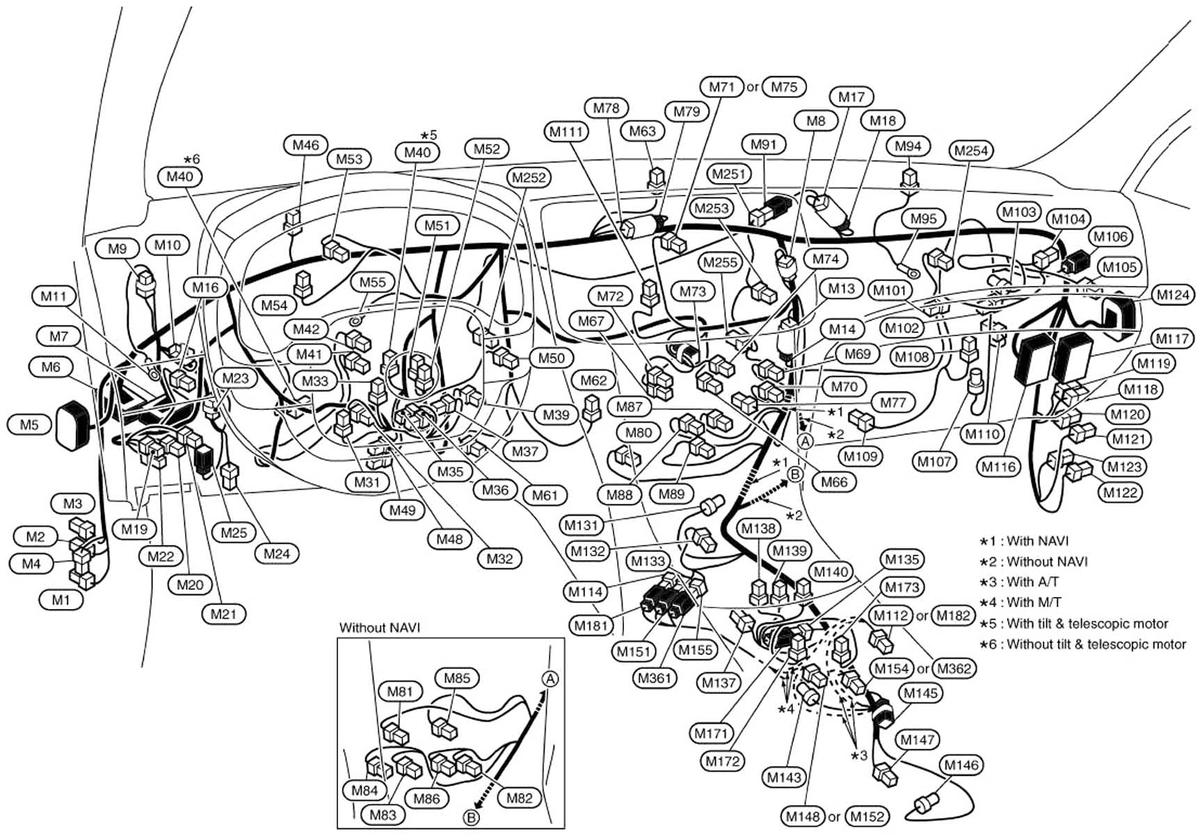

| Circuit Breaker (Coupe) (M62) | Behind center of dash. See Figure. |
| Circuit Breaker (M60) | Behind center of dash. See Figure. |
| Circuit Breaker (Sedan) (M62) | Behind center of dash. See Figure. |
| Fuse Block (J/B) (Coupe) (M1) | Behind left kick panel. See Figure. |
| Fuse Block (J/B) (Sedan) (M1) | Behind left kick panel. See Figure. |

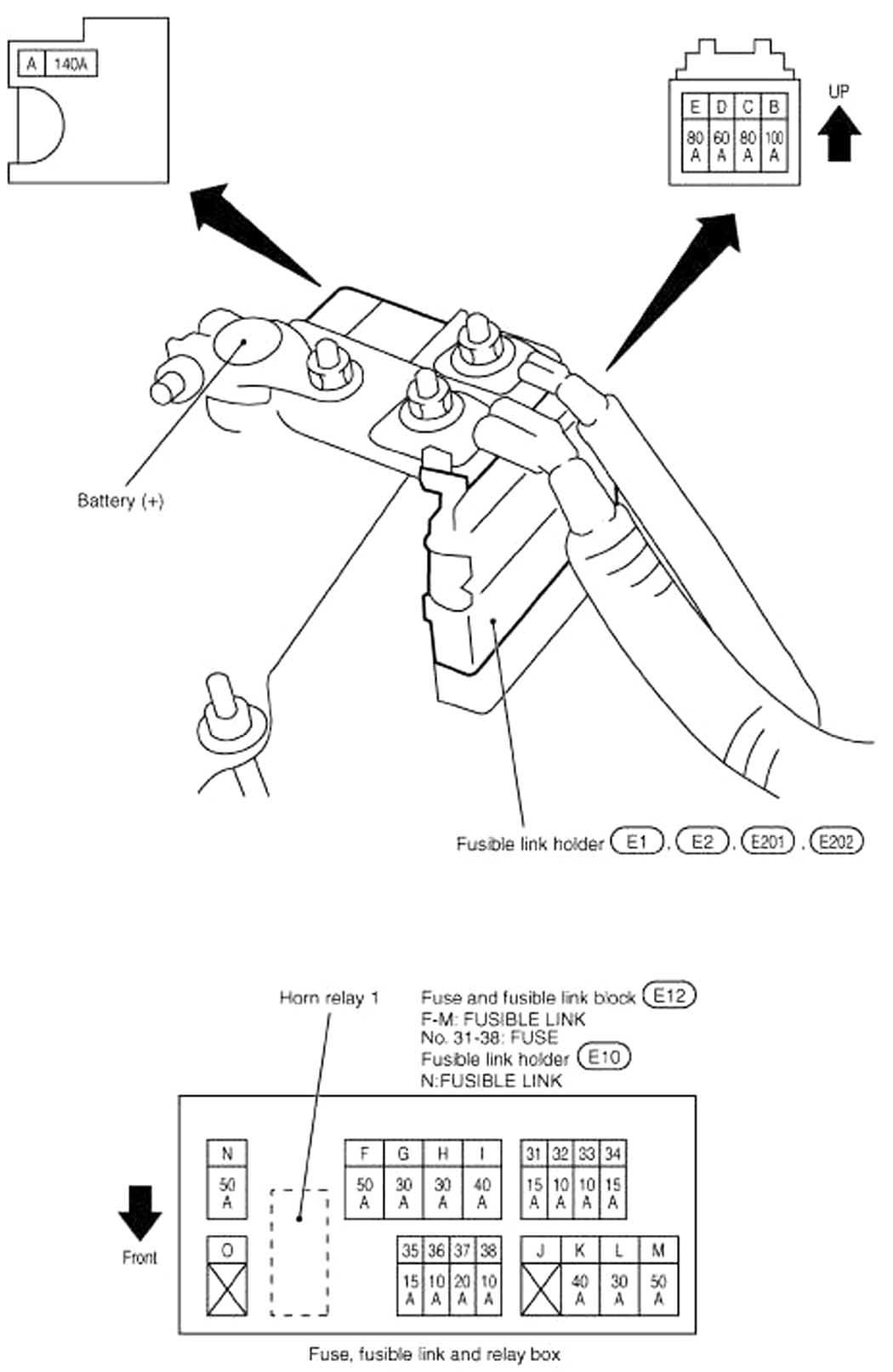

| Fusible Link Holder (Coupe) | Right rear of engine compartment. See Figure. |

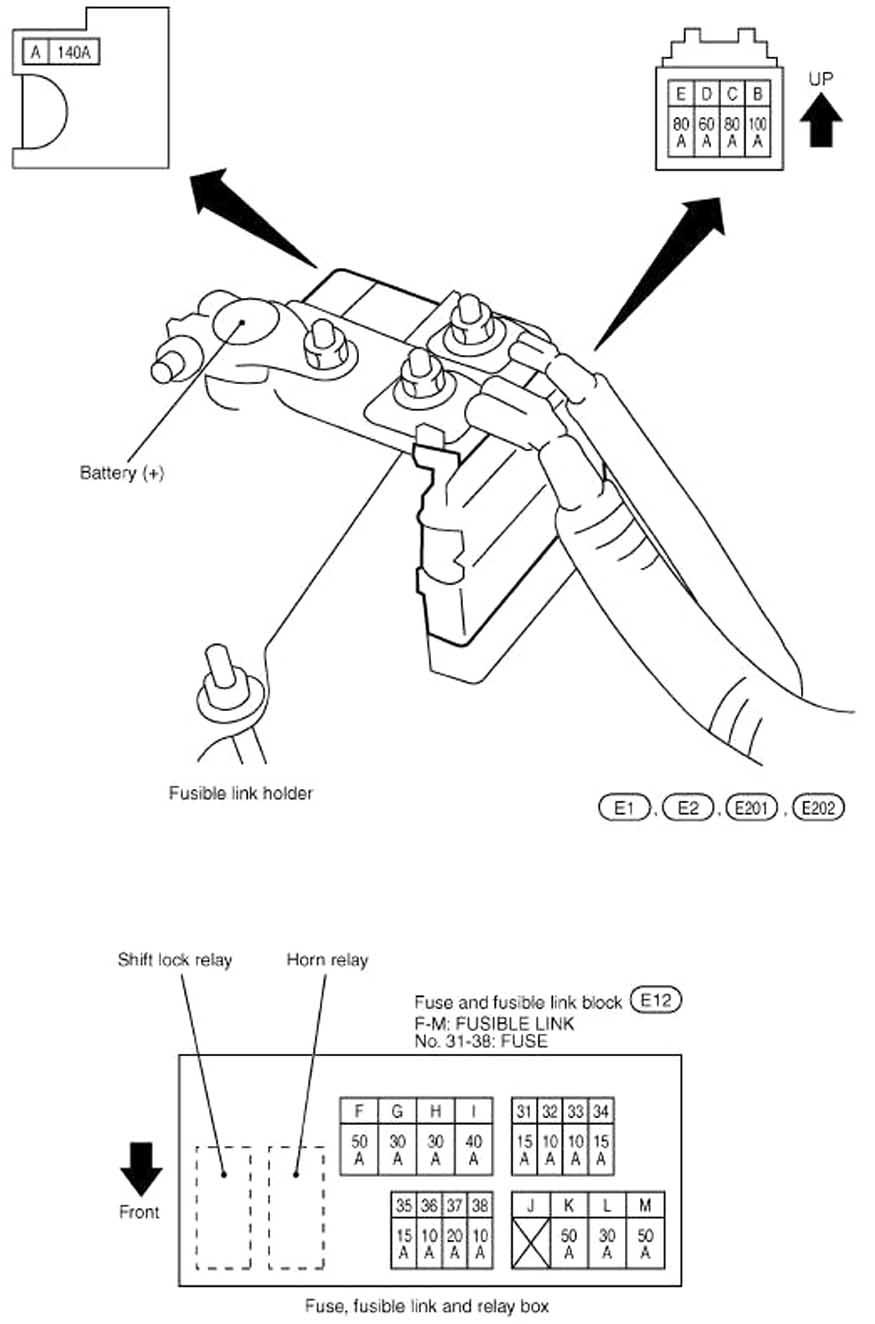

| Fusible Link Holder (Sedan) | Right rear of engine compartment. See Figure. |

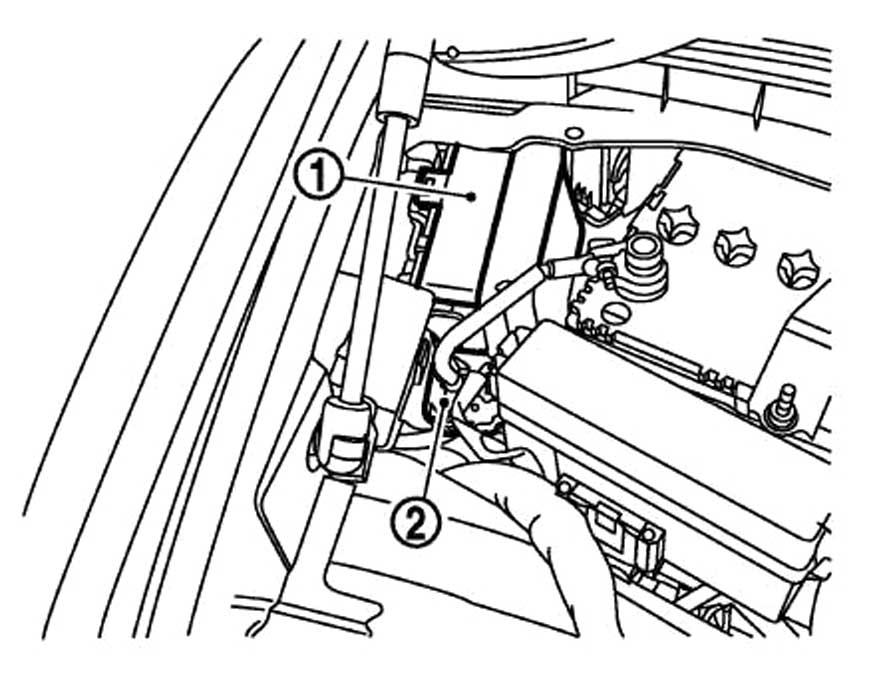

| IPDM E/R (Intelligent Power Distribution Module Engine Room) (1) | At right rear of engine compartment. See Figure. |

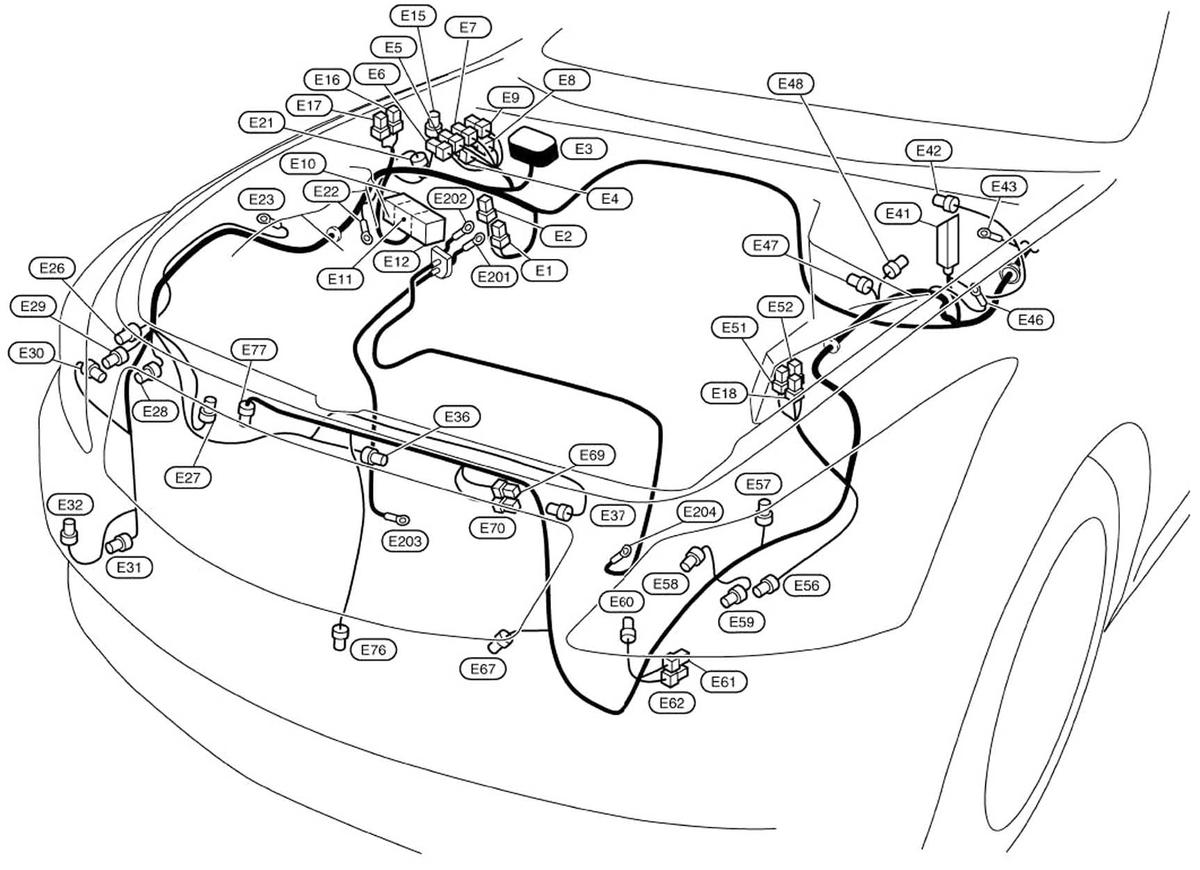

| Relay Box (Coupe) (E12) | Right rear of engine compartment. See Figure. |

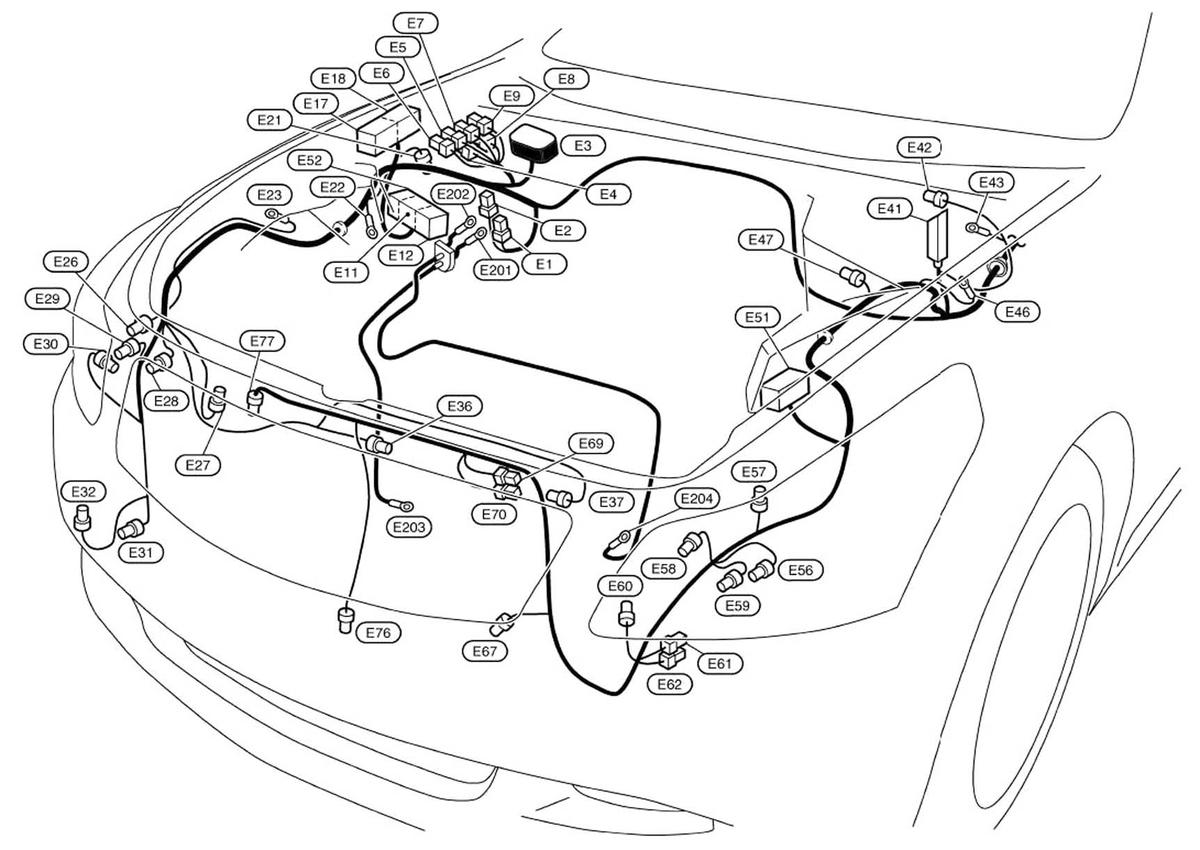

| Relay Box (Sedan) (E12) | Right rear of engine compartment. See Figure. |
