Exploded View

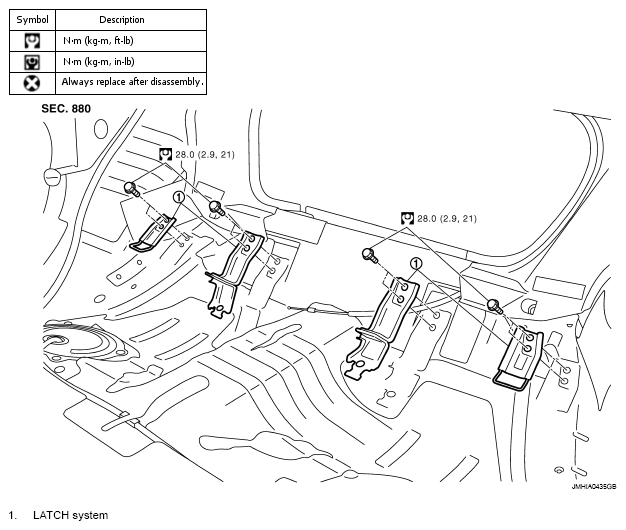

Fig 1: Exploded View Of Latch System For Children With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
