Removal and Installation: Removal

  1. Remove the instrument driver lower panel (2). Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect key slot connector.
  3. Remove the key slot mounting screw (A), and then remove key slot (1) from instrument driver lower panel (2).

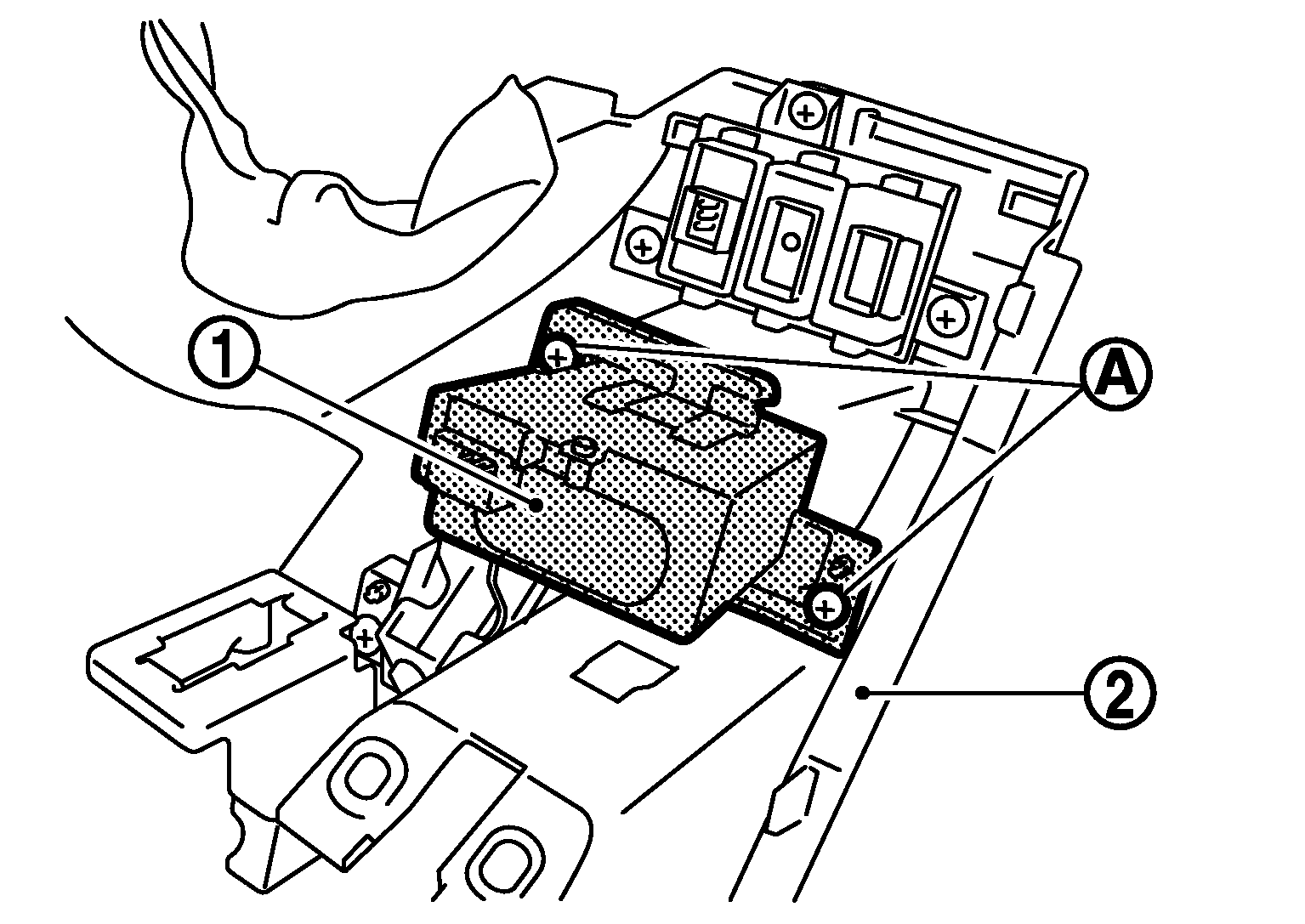

    Fig 1: Identifying Key Slot Mounting Screw And Instrument Driver Lower Panel
    G04888449Courtesy of NISSAN MOTOR CO., U.S.A.
