Removal and Installation: Removal

  1. Remove the power window main switch finisher (2).

    Refer to "REMOVAL AND INSTALLATION ".

  2. Power window main switch (1) is removed from power window main switch finisher (2) using flat-head screw driver (A) etc.

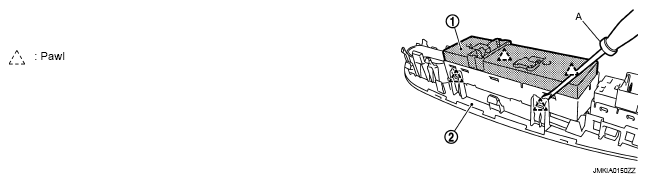

Fig 1: Removing Power Window Main Switch
G05736563Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Do not fold the pawl of power window main switch finisher.
NOTE: The same procedure is also performed for power window subswitch.
