Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| Alternator (2) | Right front of engine. See Figure. |
| A/T Device (Coupe) (M137) | Under center console. See Figure. |
| A/T Device (Sedan) (M137) | Under center console. See Figure. |
| BOSE Amplifier (Coupe) (B42) | Left side of luggage compartment. See Figure. |
| BOSE Amplifier (Sedan) (B42) | Under left side of rear parcel shelf. See Figure. |
| Condenser (Body) (Coupe) (B26) | In left "C" pillar. See Figure. |
| Condenser (Body) (Sedan) (B26) | In left "C" pillar. See Figure. |
| Condenser (Engine) (3.5L) | Top of cylinder bank No. 1. See Figure. |
| Condenser (Engine) (3.7L) (F8) | Right rear of engine. See Figure. |
| Data Link Connector Coupe) (M24) | Lower left side of dash. See Figure. |
| Data Link Connector (Sedan) (M24) | Lower left side of dash. See Figure. |
| Exhaust Valve Timing Control Magnet Retarder (Bank 1) (3.5L) (1) | Right front of engine. See Figure. |
| Exhaust Valve Timing Control Magnet Retarder (Bank 2) (3.5L) (4) | Left front of engine. See Figure. |
| Fuel Pressure Regulator (3) | Integral to fuel level sensor & fuel pump. See Figure. |

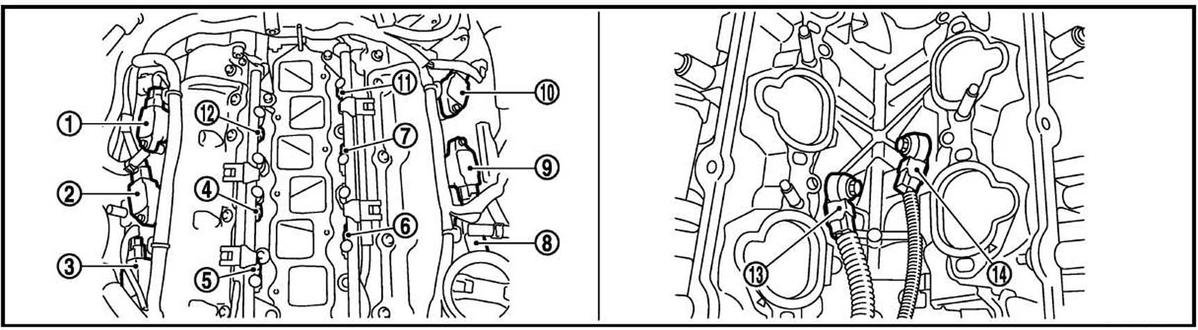

| Ignition Coil No. 1 (W/Power Transistor) (3.5L) (3) | Top of cylinder bank No. 1. See Figure. |
| Ignition Coil No. 1 (W/Power Transistor) (3.7L) (3) | Top of cylinder bank No. 1. See Figure. |
| Ignition Coil No. 2 (W/Power Transistor) (3.5L) (9) | Top of cylinder bank No. 2. See Figure. |
| Ignition Coil No. 2 (W/Power Transistor) (3.7L) (8) | Top of cylinder bank No. 2. See Figure. |
| Ignition Coil No. 3 (W/Power Transistor) (3.5L) (2) | Top of cylinder bank No. 1. See Figure. |
| Ignition Coil No. 3 (W/Power Transistor) (3.7L) (2) | Top of cylinder bank No. 1. See Figure. |
| Ignition Coil No. 4 (W/Power Transistor) (3.5L) (10) | Top of cylinder bank No. 2. See Figure. |
| Ignition Coil No. 4 (W/Power Transistor) (3.7L) (9) | Top of cylinder bank No. 2. See Figure. |
| Ignition Coil No. 5 (W/Power Transistor) (3.5L) (1) | Top of cylinder bank No. 1. See Figure. |
| Ignition Coil No. 5 (W/Power Transistor) (3.7L) (1) | Top of cylinder bank No. 1. See Figure. |
| Ignition Coil No. 6 (W/Power Transistor) (3.5L) (11) | Top of cylinder bank No. 2. See Figure. |
| Ignition Coil No. 6 (W/Power Transistor) (3.7L) (10) | Top of cylinder bank No. 2. See Figure. |
| Satellite Radio Tuner (B236) | Right rear of luggage compartment. See Figure. |
| Unified Meter & A/C Amplifier (7) | Behind center of dash. See Figure. |
| Woofer Amplifier (B43) | Left side of luggage compartment. See Figure. |
