Exploded View

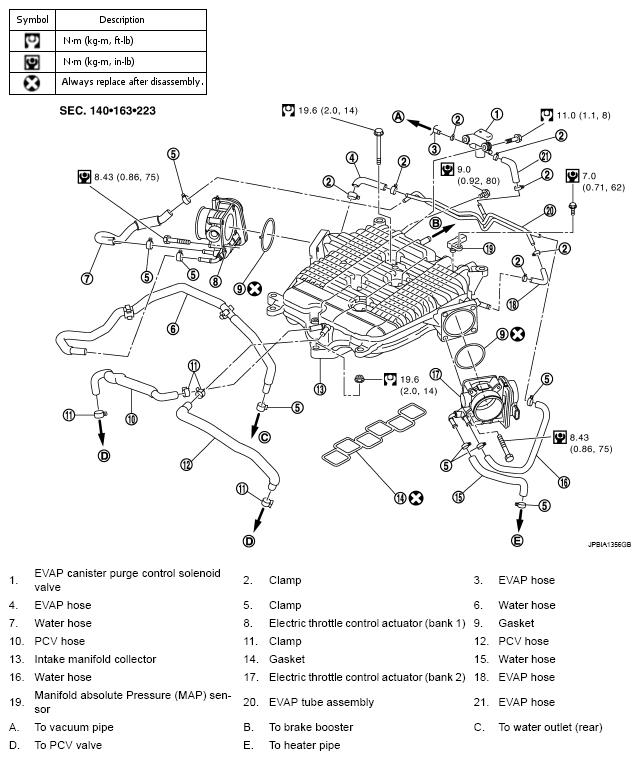

Fig 1: Exploded View Of Intake Manifold Collector With Torque Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
