Component Parts Location

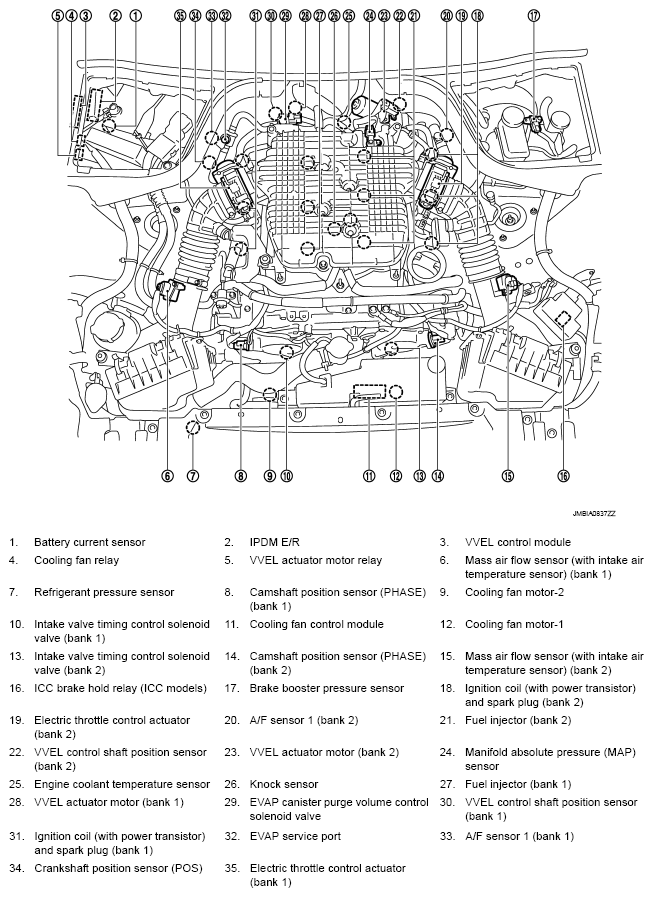

Fig 1: Identifying Cooling Fan Control System Component Location (1 Of 21)

G05733275

Courtesy of NISSAN MOTOR CO., U.S.A.

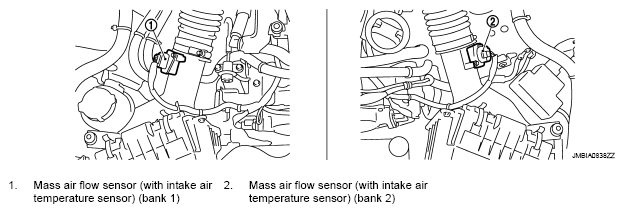

Fig 2: Identifying Cooling Fan Control System Component Location (2 Of 21)

G05733276

Courtesy of NISSAN MOTOR CO., U.S.A.

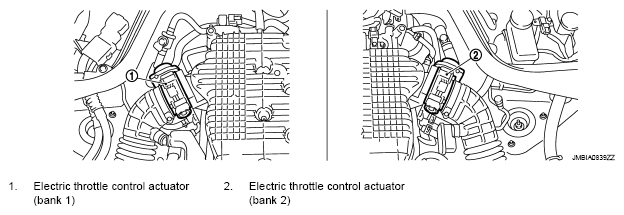

Fig 3: Identifying Cooling Fan Control System Component Location (3 Of 21)

G05733277

Courtesy of NISSAN MOTOR CO., U.S.A.

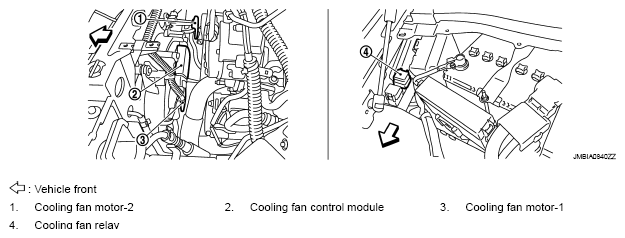

Fig 4: Identifying Cooling Fan Control System Component Location (4 Of 21)

G05733278

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Cooling Fan Control System Component Location (5 Of 21)

G05216249

Courtesy of NISSAN MOTOR CO., U.S.A.

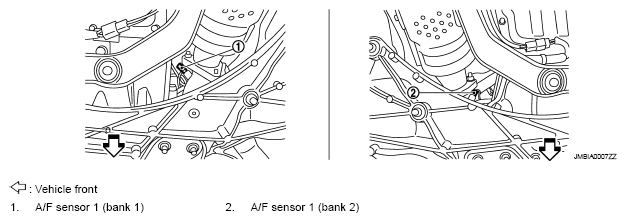

Fig 6: Identifying Cooling Fan Control System Component Location (6 Of 21)

G05733280

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Cooling Fan Control System Component Location (7 Of 21)

G05733281

Courtesy of NISSAN MOTOR CO., U.S.A.

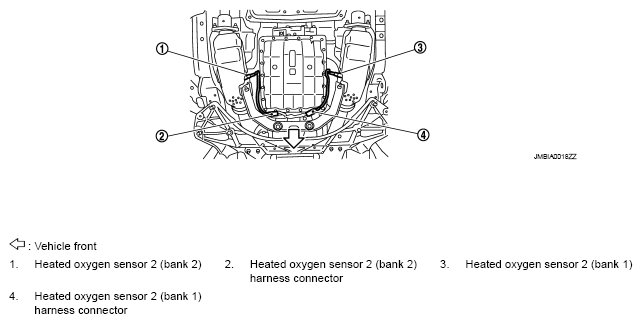

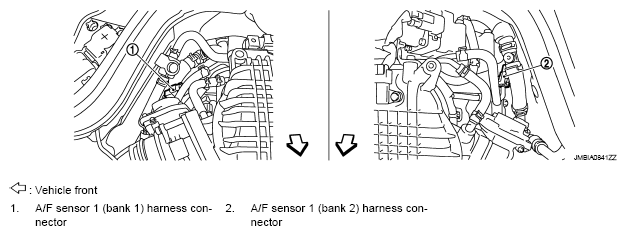

Fig 8: Identifying Cooling Fan Control System Component Location (8 Of 21)

G05733282

Courtesy of NISSAN MOTOR CO., U.S.A.

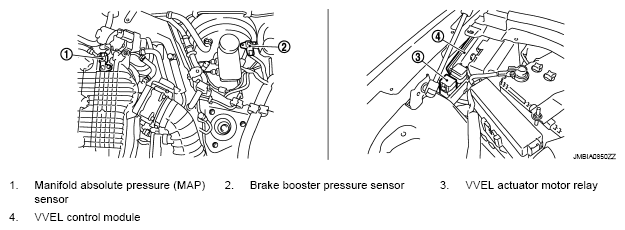

Fig 9: Identifying Cooling Fan Control System Component Location (9 Of 21)

G05733283

Courtesy of NISSAN MOTOR CO., U.S.A.

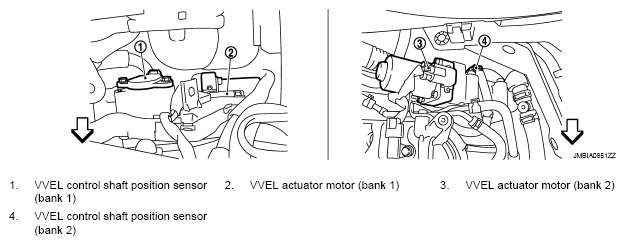

Fig 10: Identifying Cooling Fan Control System Component Location (10 Of 21)

G05733284

Courtesy of NISSAN MOTOR CO., U.S.A.

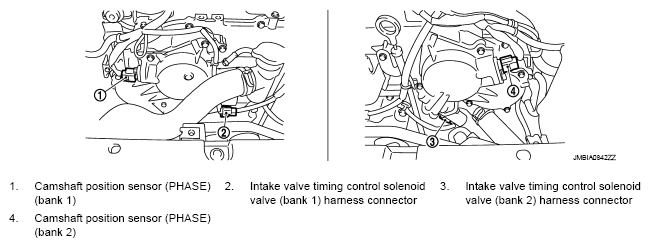

Fig 11: Identifying Cooling Fan Control System Component Location (11 Of 21)

G05733285

Courtesy of NISSAN MOTOR CO., U.S.A.

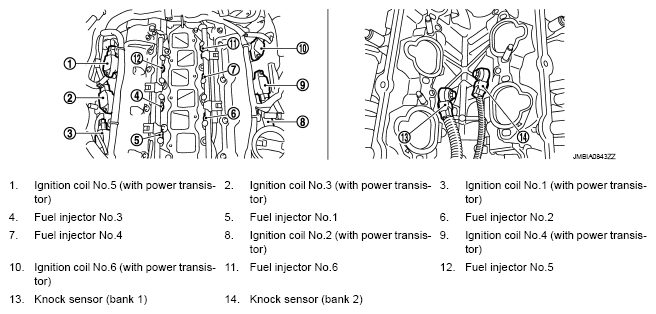

Fig 12: Identifying Cooling Fan Control System Component Location (12 Of 21)

G05733286

Courtesy of NISSAN MOTOR CO., U.S.A.

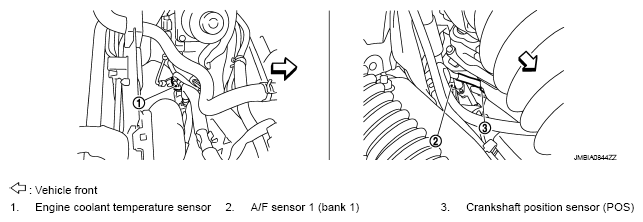

Fig 13: Identifying Cooling Fan Control System Component Location (13 Of 21)

G05733287

Courtesy of NISSAN MOTOR CO., U.S.A.

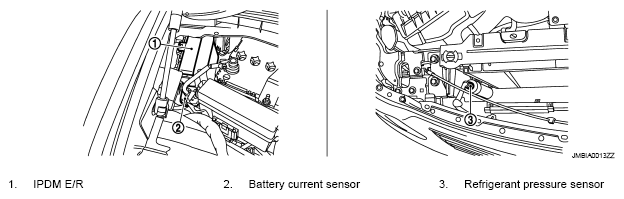

Fig 14: Identifying Cooling Fan Control System Component Location (14 Of 21)

G05733288

Courtesy of NISSAN MOTOR CO., U.S.A.

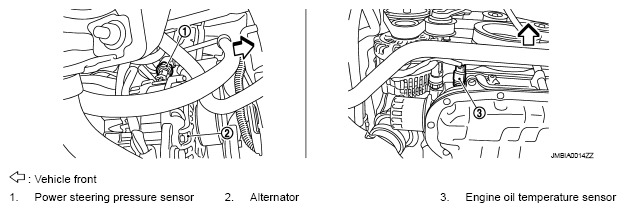

Fig 15: Identifying Cooling Fan Control System Component Location (15 Of 21)

G05733289

Courtesy of NISSAN MOTOR CO., U.S.A.

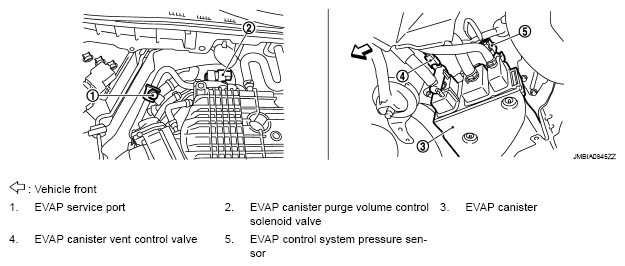

Fig 16: Identifying Cooling Fan Control System Component Location (16 Of 21)

G05733290

Courtesy of NISSAN MOTOR CO., U.S.A.

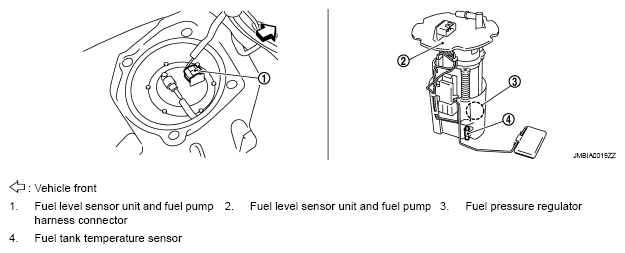

Fig 17: Identifying Cooling Fan Control System Component Location (17 Of 21)

G05733291

Courtesy of NISSAN MOTOR CO., U.S.A.

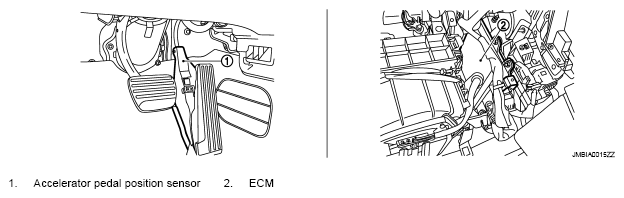

Fig 18: Identifying Cooling Fan Control System Component Location (18 Of 21)

G05733292

Courtesy of NISSAN MOTOR CO., U.S.A.

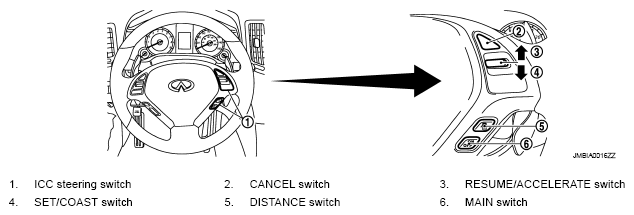

Fig 19: Identifying Cooling Fan Control System Component Location (19 Of 21)

G05733293

Courtesy of NISSAN MOTOR CO., U.S.A.

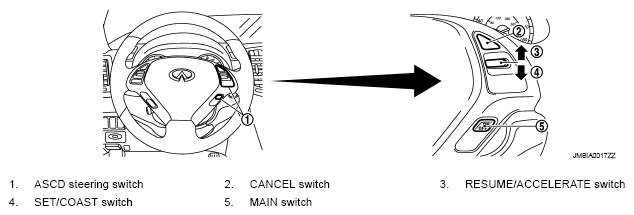

Fig 20: Identifying Cooling Fan Control System Component Location (20 Of 21)

G05733294

Courtesy of NISSAN MOTOR CO., U.S.A.

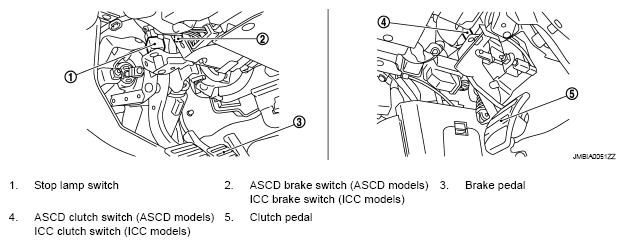

Fig 21: Identifying Cooling Fan Control System Component Location (21 Of 21)

G05733295

Courtesy of NISSAN MOTOR CO., U.S.A.
