Component Parts Location

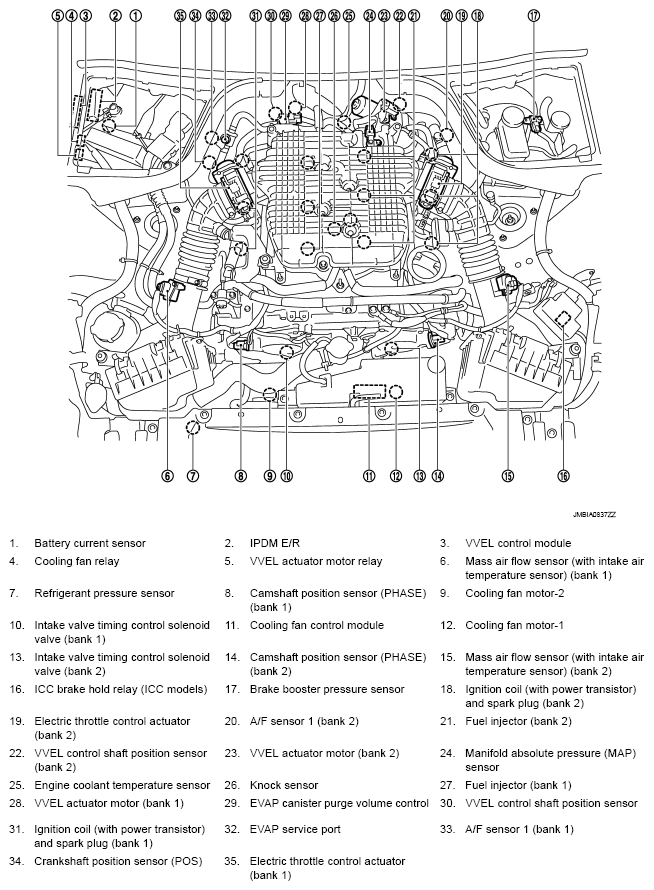

Fig 1: Identifying Electric Ignition System Component Location (1 Of 21)

G05733209

Courtesy of NISSAN MOTOR CO., U.S.A.

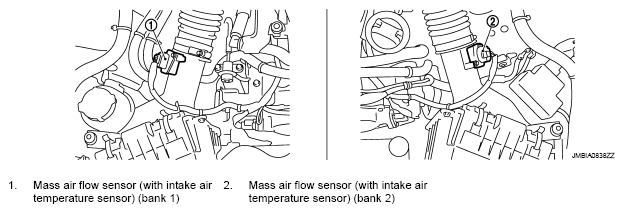

Fig 2: Identifying Electric Ignition System Component Location (2 Of 21)

G05733210

Courtesy of NISSAN MOTOR CO., U.S.A.

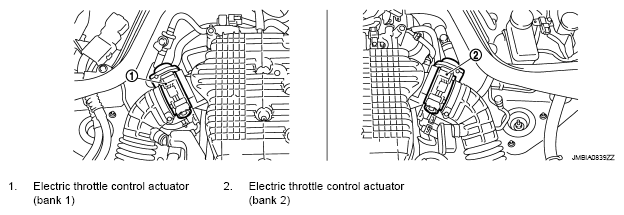

Fig 3: Identifying Electric Ignition System Component Location (3 Of 21)

G05733211

Courtesy of NISSAN MOTOR CO., U.S.A.

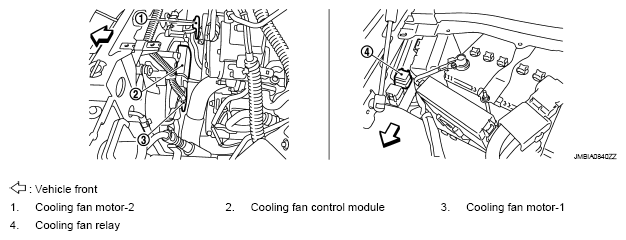

Fig 4: Identifying Electric Ignition System Component Location (4 Of 21)

G05733212

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Electric Ignition System Component Location (5 Of 21)

G05216249

Courtesy of NISSAN MOTOR CO., U.S.A.

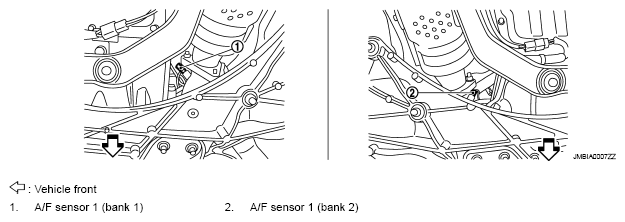

Fig 6: Identifying Electric Ignition System Component Location (6 Of 21)

G05733214

Courtesy of NISSAN MOTOR CO., U.S.A.

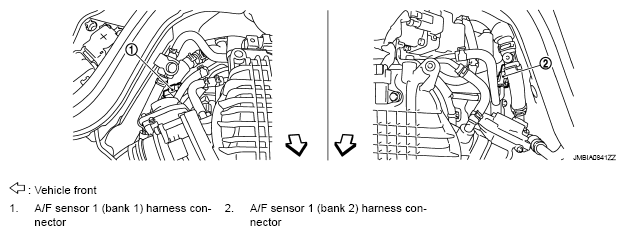

Fig 7: Identifying Electric Ignition System Component Location (7 Of 21)

G05733215

Courtesy of NISSAN MOTOR CO., U.S.A.

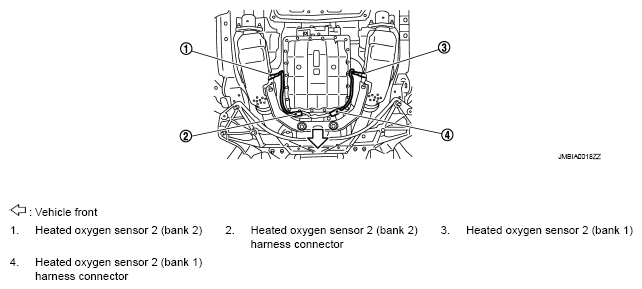

Fig 8: Identifying Electric Ignition System Component Location (8 Of 21)

G05733216

Courtesy of NISSAN MOTOR CO., U.S.A.

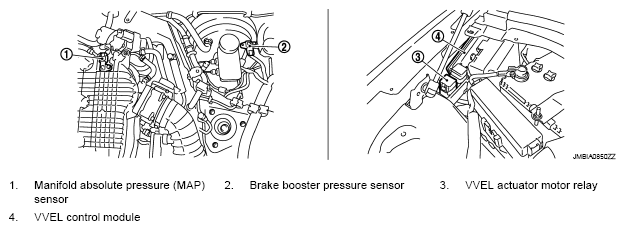

Fig 9: Identifying Electric Ignition System Component Location (9 Of 21)

G05733217

Courtesy of NISSAN MOTOR CO., U.S.A.

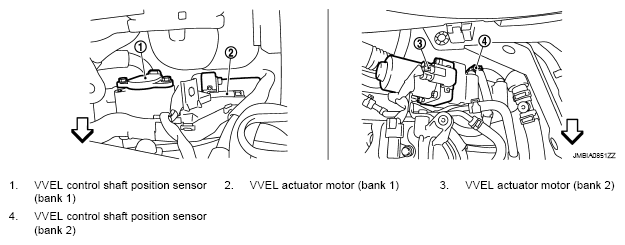

Fig 10: Identifying Electric Ignition System Component Location (10 Of 21)

G05733218

Courtesy of NISSAN MOTOR CO., U.S.A.

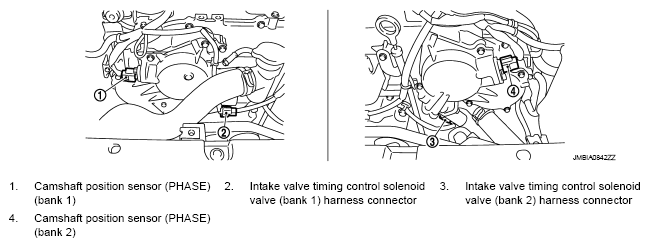

Fig 11: Identifying Electric Ignition System Component Location (11 Of 21)

G05733219

Courtesy of NISSAN MOTOR CO., U.S.A.

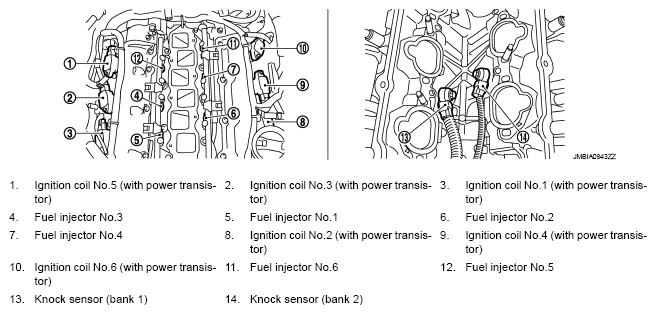

Fig 12: Identifying Electric Ignition System Component Location (12 Of 21)

G05733220

Courtesy of NISSAN MOTOR CO., U.S.A.

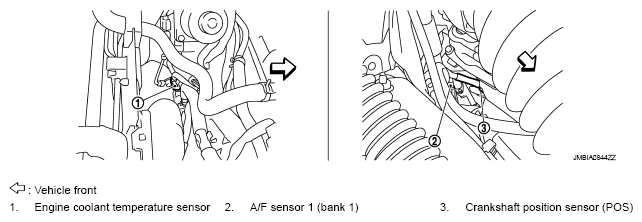

Fig 13: Identifying Electric Ignition System Component Location (13 Of 21)

G05733221

Courtesy of NISSAN MOTOR CO., U.S.A.

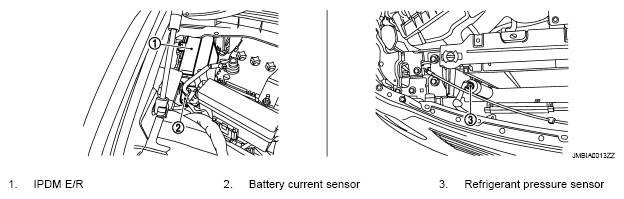

Fig 14: Identifying Electric Ignition System Component Location (14 Of 21)

G05733222

Courtesy of NISSAN MOTOR CO., U.S.A.

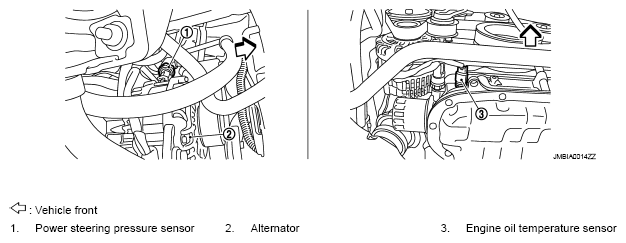

Fig 15: Identifying Electric Ignition System Component Location (15 Of 21)

G05733223

Courtesy of NISSAN MOTOR CO., U.S.A.

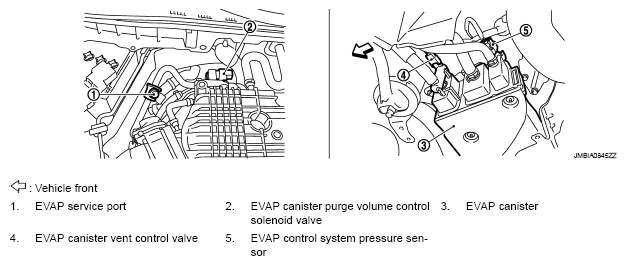

Fig 16: Identifying Electric Ignition System Component Location (16 Of 21)

G05733224

Courtesy of NISSAN MOTOR CO., U.S.A.

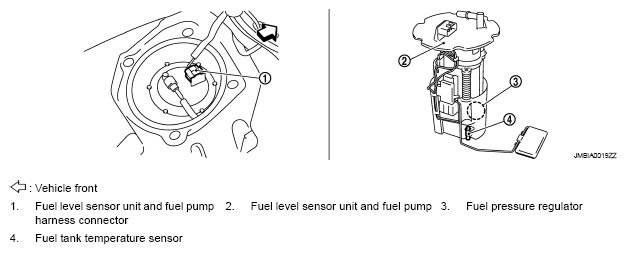

Fig 17: Identifying Electric Ignition System Component Location (17 Of 21)

G05733225

Courtesy of NISSAN MOTOR CO., U.S.A.

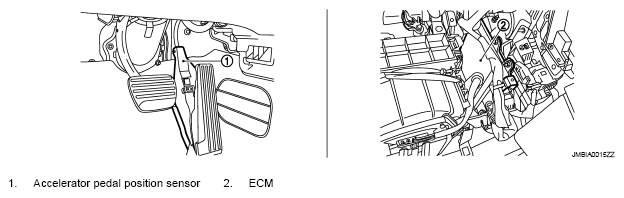

Fig 18: Identifying Electric Ignition System Component Location (18 Of 21)

G05733226

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Electric Ignition System Component Location (19 Of 21)

G05733227

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Electric Ignition System Component Location (20 Of 21)

G05733228

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Identifying Electric Ignition System Component Location (21 Of 21)

G05733229

Courtesy of NISSAN MOTOR CO., U.S.A.
