Wiring Diagram - A/T Shift Lock System - Column Shift
WARNING:
This page is about a different car, the 2008 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

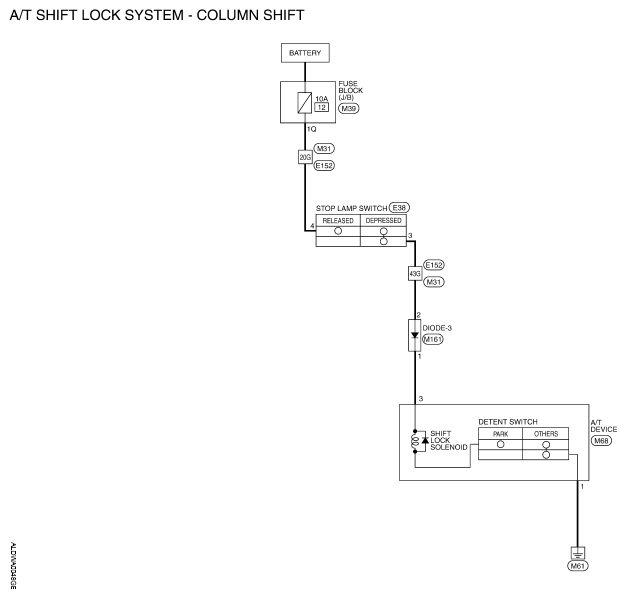

Fig 1: A/T Shift Lock System - Column Shift - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

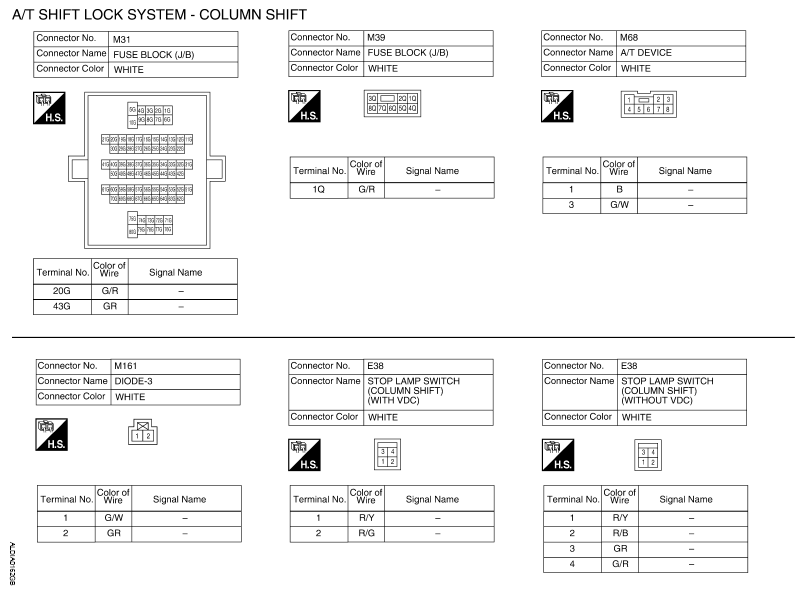

Fig 2: A/T Shift Lock System - Column Shift Connectors Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

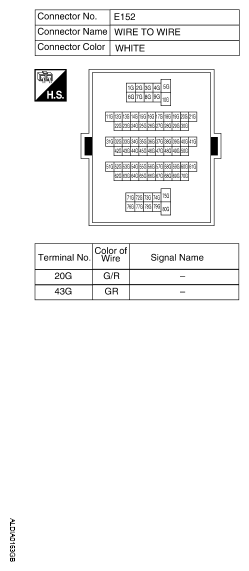

Fig 3: A/T Shift Lock System - Column Shift Connectors Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
