WARNING: This page is about a different car, the 2008 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

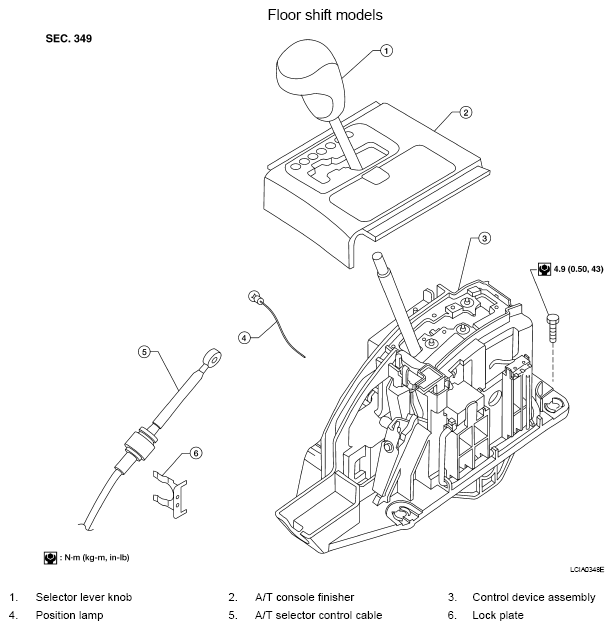

Fig 1: Identifying Shift Control System Components - Floor Shift Models
Courtesy of NISSAN MOTOR CO., U.S.A.

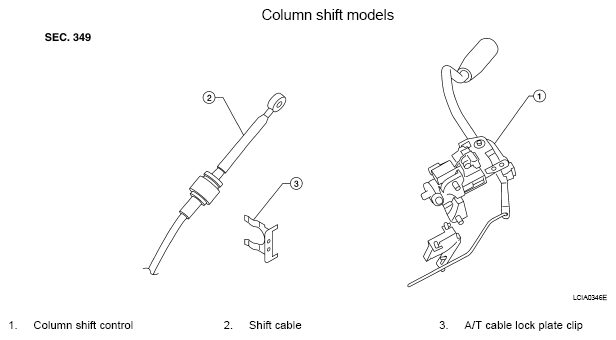

Fig 2: Identifying Shift Control System Components - Column Shift Models
