Combination Switch Matrix

WARNING: This page is about a different car, the 2008 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Combination switch consists of INPUT circuit and OUTPUT circuit.

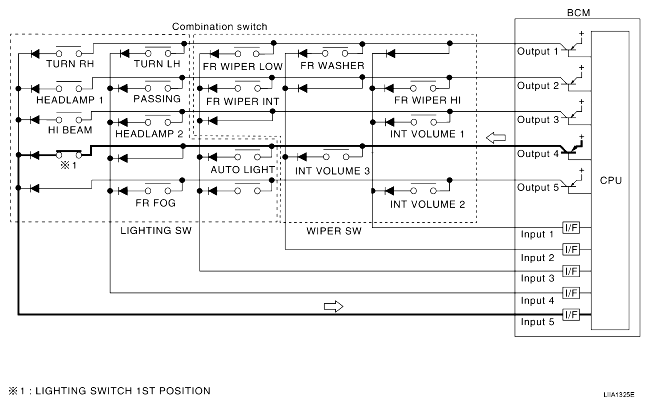

Fig 1: Combination Switch Circuit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Combination switch INPUT-OUTPUT system list

COMBINATION SWITCH INPUT-OUTPUT SYSTEM LIST

System	OUTPUT 1	OUTPUT 2	OUTPUT 3	OUTPUT 4	OUTPUT 5
INPUT 1	-	FR WASHER	FR WIPER LOW	TURN LH	TURN RH
INPUT 2	FR WIPER HI	-	FR WIPER INT	PASSING	HEADLAMP 1
INPUT 3	INT VOLUME 1	-	-	HEADLAMP 2	HI BEAM
INPUT 4	-	INT VOLUME 3	AUTO LIGHT	-	TAIL LAMP
INPUT 5	INT VOLUME 2	-	-	FR FOG	-

NOTE: Headlamp has a dual system switch.
