AV SWITCH : Component Function Check
WARNING: This page is about a different car, the 2008 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
STARTING THE SELF-DIAGNOSIS MODE
- Turn ignition switch from OFF to ACC.

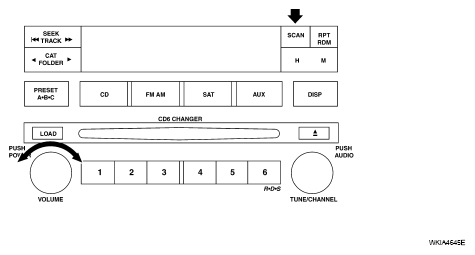

- Press and hold the "SCAN" switch and turn the volume control dial clockwise or counterclockwise for 30 clicks or more.
Courtesy of NISSAN MOTOR CO., U.S.A.
Then the self-diagnosis operates. A single beep indicates self-diagnosis mode is active.
- Initially, all display segments will be illuminated.
- Press each switch. When each switch is pressed, its name and communication code will be displayed
NOTE:
CD player LOAD and EJECT buttons are not included in this test and will not change the display when pressed.
DIAGNOSIS FUNCTION
- It can check for continuity of the switches by sounding the beep when each AV switch and steering switch is pressed.
- It can check for continuity of harness between AV switch and steering switch.
EXITING THE SELF-DIAGNOSIS MODE
Turn ignition switch OFF. Then the self-diagnosis ends.
